DX Switchbox (DX-ARC-SWB) – Installation Manual
5
4.2 Seat Switches

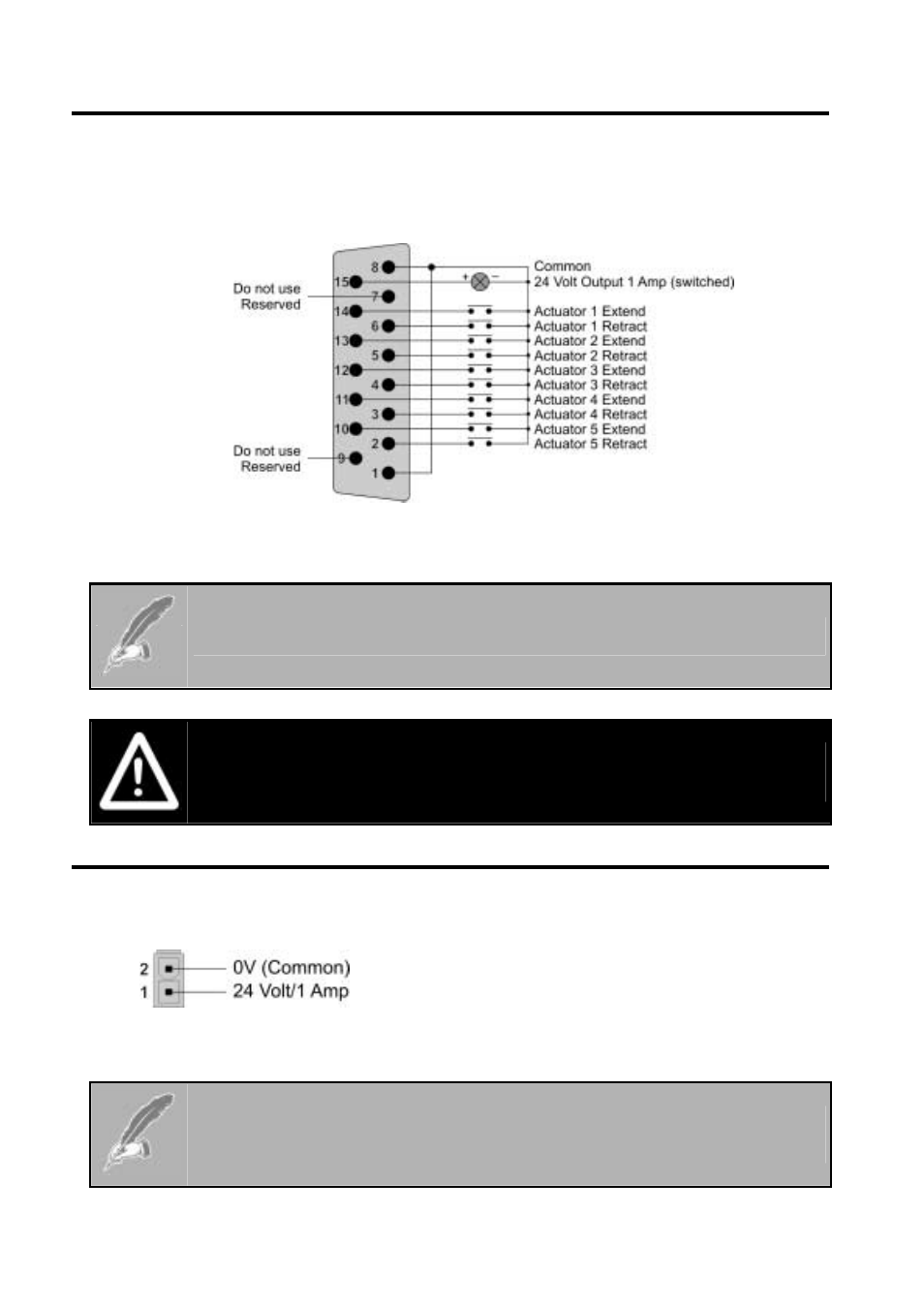

The switches used to operate the seat functions connect to the unit via the DB15
connector, pin-out as shown below.
‘Normally-open’ switches should be used so the required function operates on
switch closure between the appropriate pin and Common (pin 8 of the connector).
There must be a link between Pins 1 and 8 for the unit to operate!
Warning:
Use appropriate quality assemblies for the installation of the system.
4.3 Switched Auxiliary Power Supply Output
An unregulated 24-Volt/1-Amp (max) power source is
available to power accessory devices if required through
the Molex 2-Pin connector. This output is switched by
the DX System On and Off.
The mating housing and pins are included with the DX-ARC-SWB.
The auxiliary power supply uses the same output as pin 15 of the DB15
connector. The total load of both outputs must not exceed 1 Amp.
