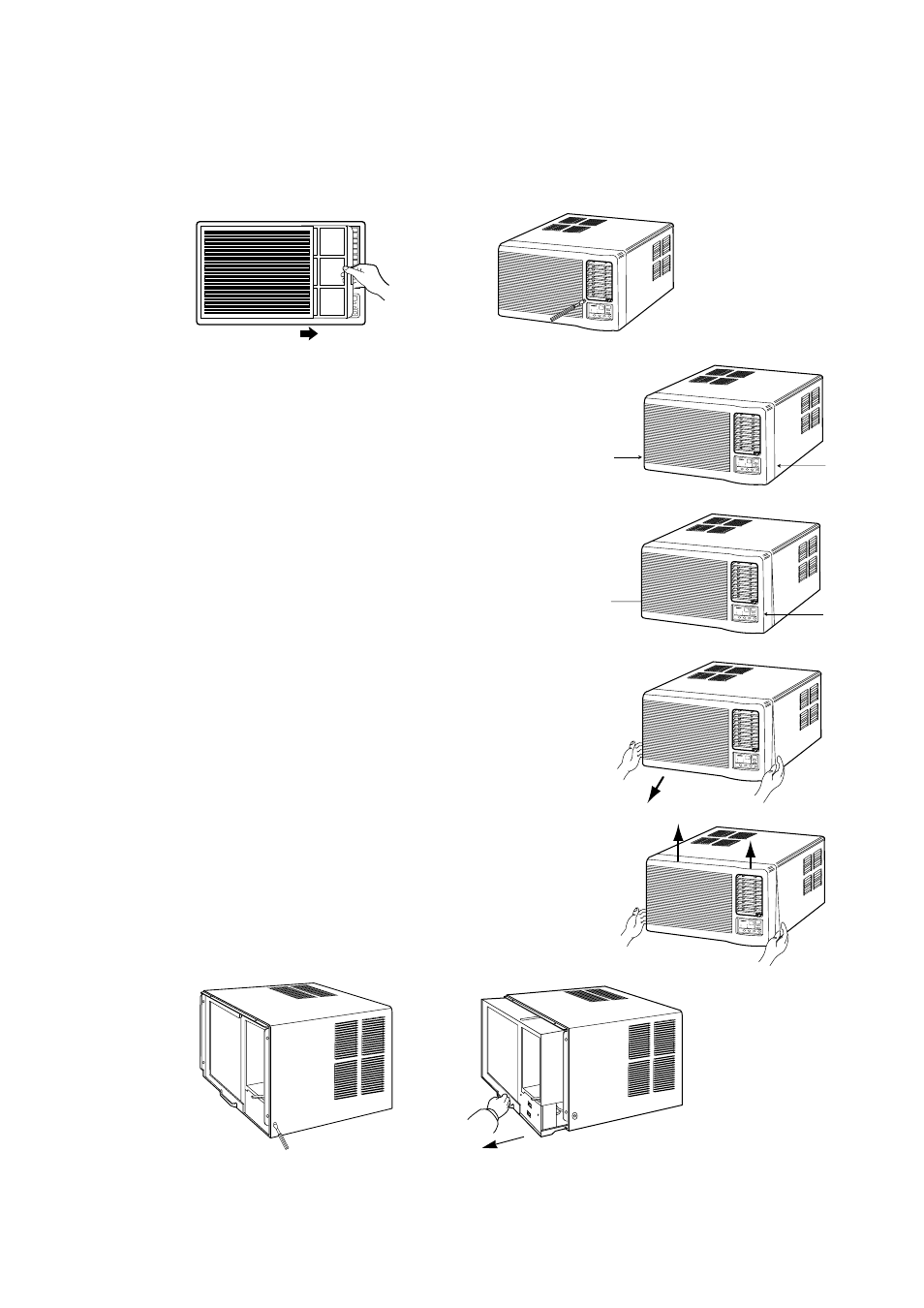

• HOW TO REMOVE THE FRONT GRILLE FOR ALL MODELS EXCEPT DW ✽ -124R, DWA-152R
1. Pull the Air-filter out of the Front Grille.
2. Loosen screw which fasten Front Grille with driver.
3. Disassemble Front Grille from Chassis.
– Front Grille and chassis are fixed with snap-fit.
1) Release right-lower snap-fit.
– Push the right lower side of chassis to the left, with pushing left side of
Front Grille to the right until the snap-fit is released.
2) Release left-lower snap-fit.
– Push the left-lower side of chassis to the right, with pushing right side of
Front Grille to the right until the snap-fit is released.
3) Pull lower side of the Front Grille until it is separated from the chassis.
4) Push base side of the Front Grille to upper side until it is separated from the
chassis.
5) After front grille is removed, remove two screws located in both side of
chassis.
6) Grip the handle of base pan and pull out the unit from chassis.
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;
;;;;
;;;;
;;;;
;;;;
;;;;
;;;;
;;;;
;;;;
;;;;
;;;;
;;;;
;;;;
Push
Push
Push
Push
