ROOM AIR CONDITIONER DWC-121R

Manual

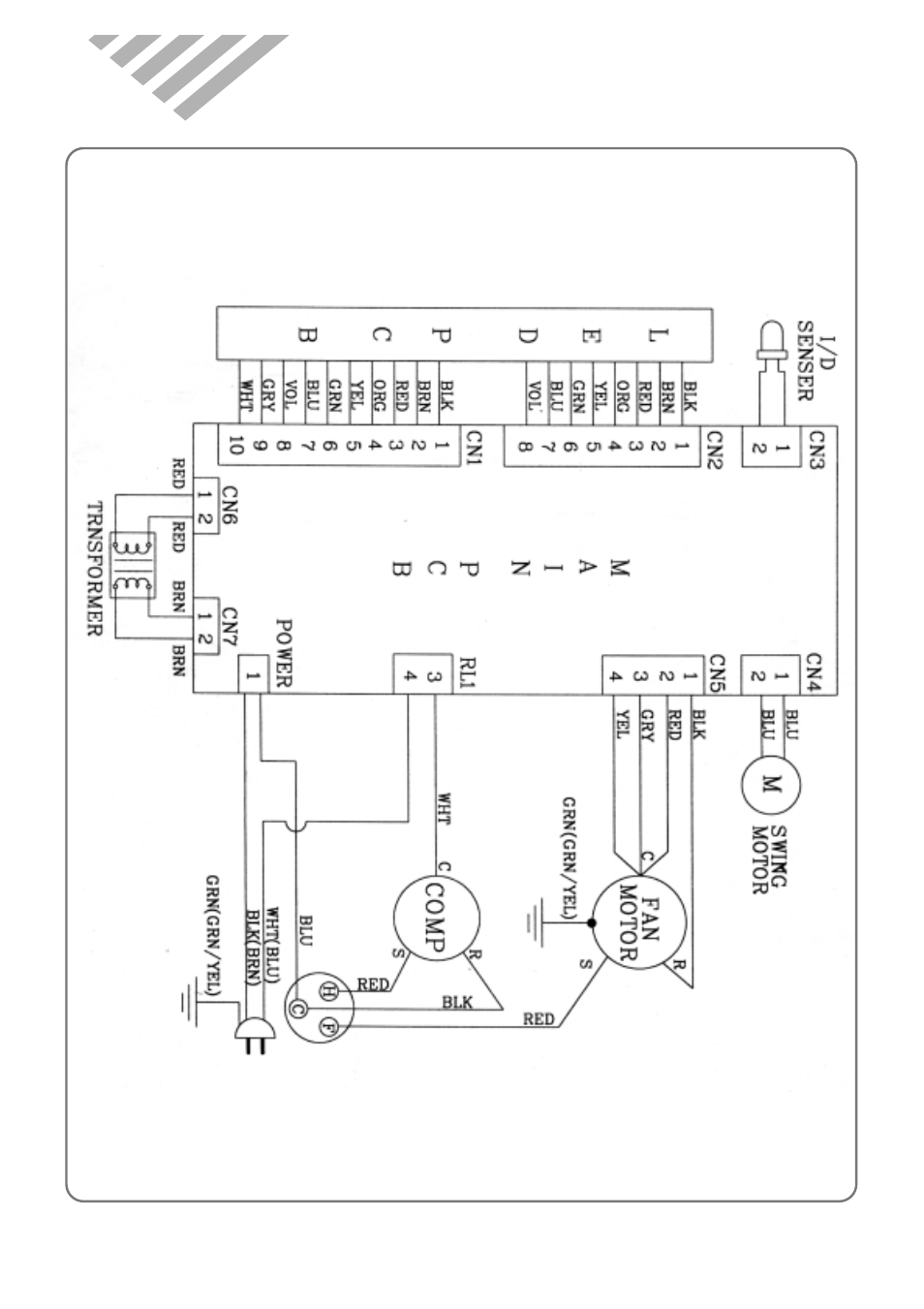

Wiring diagram – Daewoo ROOM AIR CONDITIONER DWC-121R User Manual

Page 13

Text mode
Original mode

Wiring diagram | Daewoo ROOM AIR CONDITIONER DWC-121R User Manual | Page 13 / 41

Wiring diagram | Daewoo ROOM AIR CONDITIONER DWC-121R User Manual | Page 13 / 41

Pages: 1 … 11 12 13 14 15 … 41
