Dometic NDR1062 - Manual (Page 3)

3

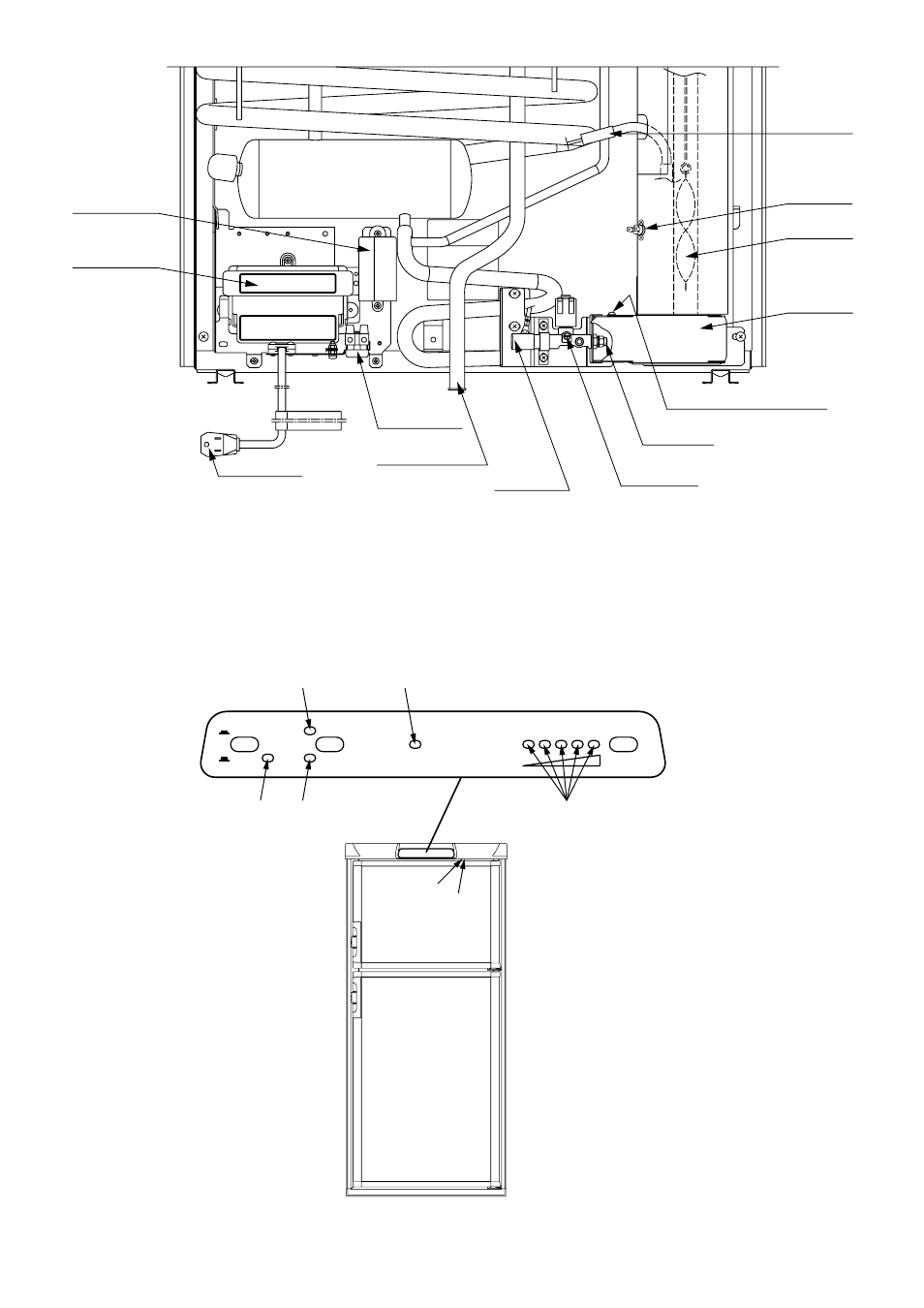

FIG. 2
Refrigerator control panel
ON
OFF AC GAS
AUTO
CHECK
COLD 1 2 3 4 5 COLDEST
B
A D
C
2 1
E
3
F
G LEGEND 2-WAY AMES Model
1. Main Power Button ON/OFF
2. AUTO/GAS Mode Selector Button
3. Temperature Selector Button
A. AUTO Mode Indicator Lamp
B. AC Mode Indicator Lamp
C. GAS Mode Indicator Lamp
D. CHECK Indicator Lamp
E. Temperature Indicator Lamps
F. Low Ambient Switch
G. Climate Control Switch
12V DC
Cover,
Reigniter
Power module
cover
FIG. 1
Flexible cord
12 volt
Terminal block
Drain water hose
Inlet fitting
Manual gas
shutoff valve
Burner jet
Screw for protection cover
Protection
cover
Flue baffle
Heater
Thermofuse
