switch for 1 to 4 port to adjust link mode with other network
devices. Another 4 ports use auto-negotiation protocol only.
There are three type of link mode can be chosen, Auto-
negotiation, 100Mbps/Full duplex and 10Mbps/Full duplex.
Port 1
Port 2
Port 3
Port 4
DIP Sw itch for
Port 1 to Port 4
adjustable
ports
Auto-
negotiation
Full Duplex
100M
Port 5
Port 6
Port 7
Port 8
8 7 6 5 4 3 2 1
10M
ON
Port 1
Port 2 Port 4
Port 3
OFF
2 1

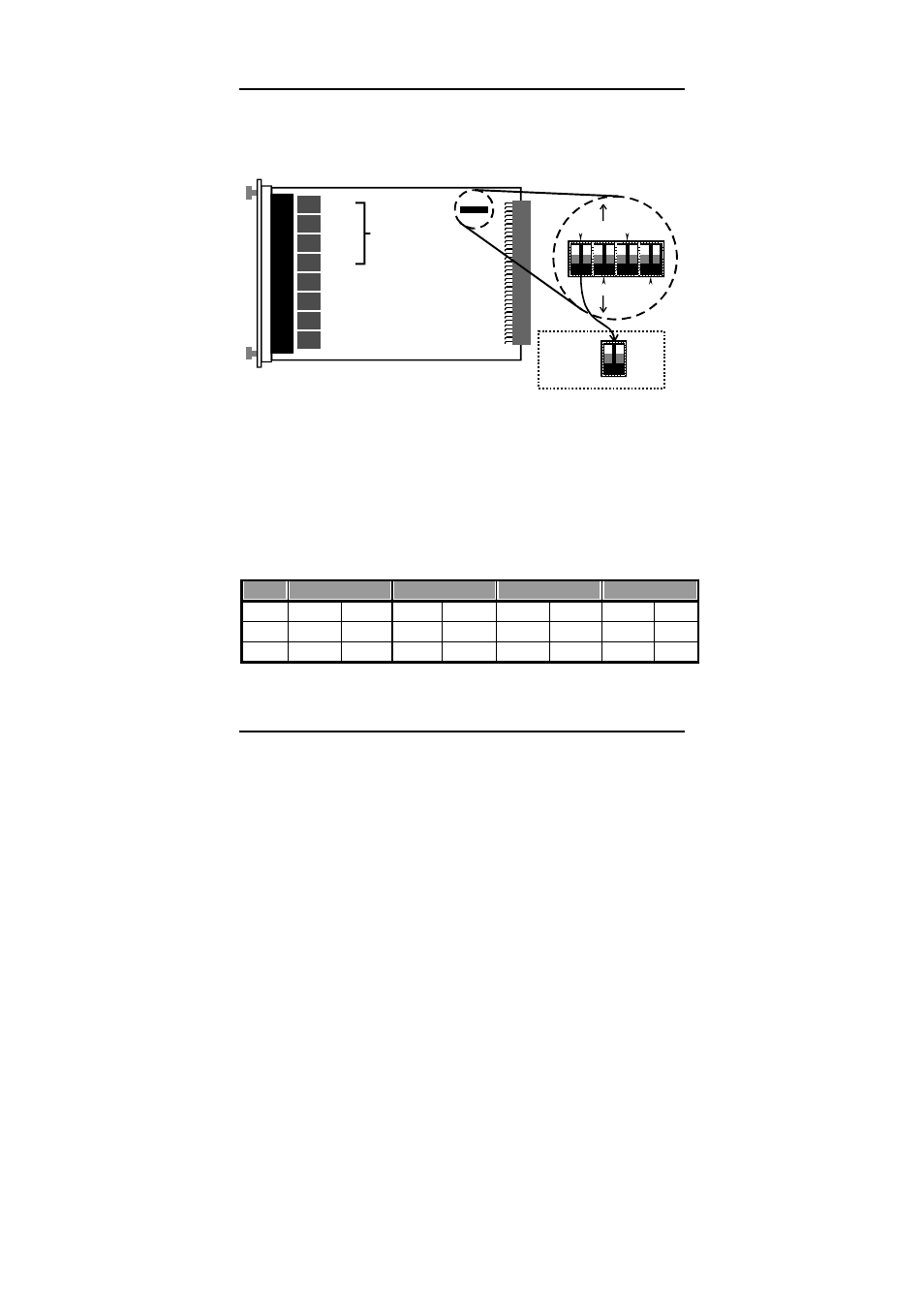

Figure 1-5. Dip switch location and mode settings
If you adjust to auto-negotiation, then the DIP for 100Mbps and
10Mbps is not effective. If you adjust to Full duplex, then the
DIP for 100Mbps and 10Mbps is effective.
The following Table 1-1. lists the ports’ operating modes based
on the DIP switch position.
PORT 1 PORT 2 PORT3 PORT4
SW 1 2 3 4 5 6 7 8
ON Full 10M Full 10M Full 10M Full 10M
OFF Auto 100M Auto 100M Auto 100M Auto 100M
Table 1-1. DIP switch configuration for Port 1-4.
7
