DES-128 8 ports 10/100Base-TX Module

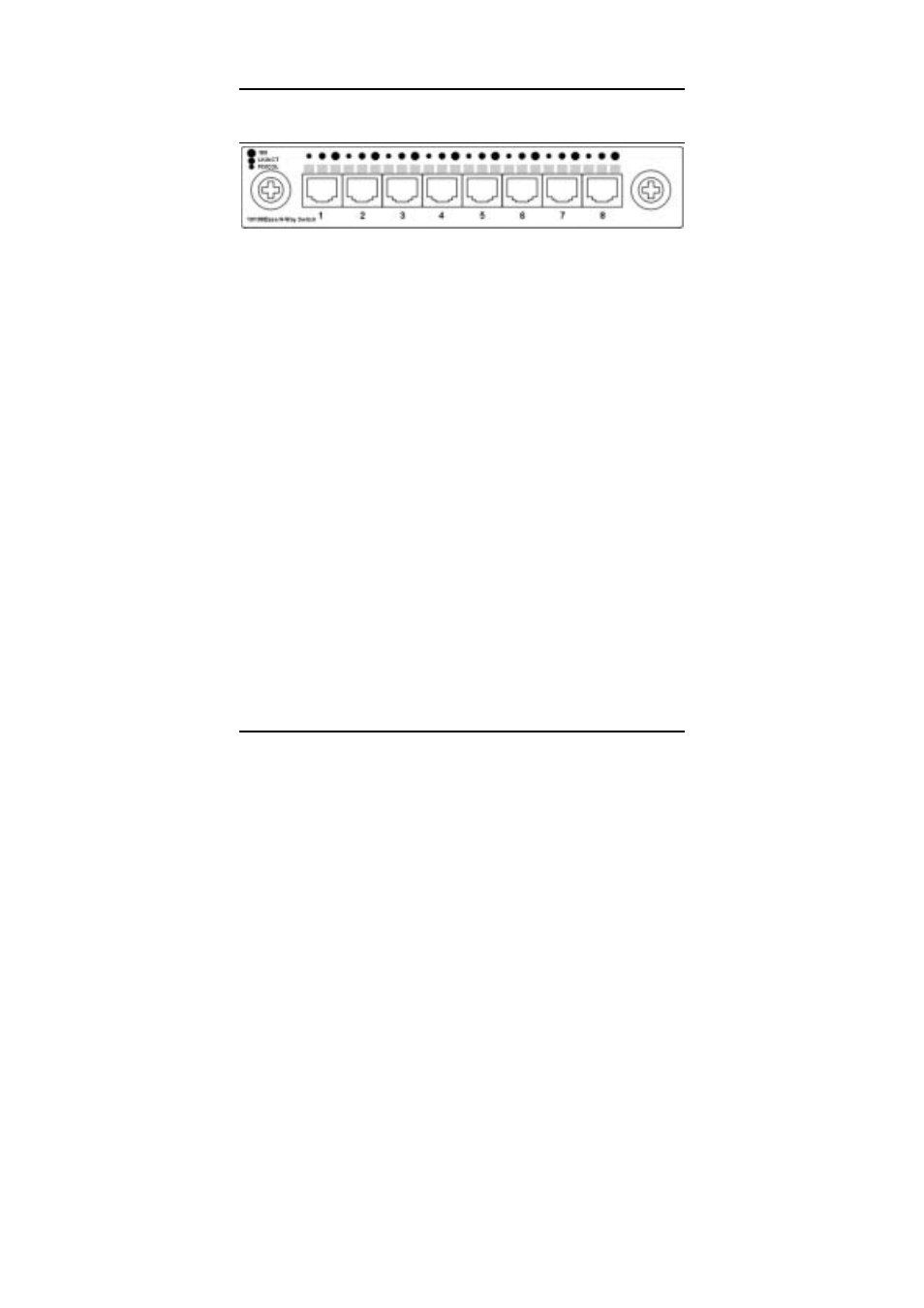

Figure 1-4. 8 port 10/100Base-TX Module
When installed into a DES-1200M, the DES-128 provides 8x
10/100Mbps Switch ports which can connect the DES-1200M to
a 10Mbps or 100Mbps hub or end station.
DES-128 8 Ports 10/100Base-TX Module Features
8x 10/100Base-TX N-Way Switch ports.
Conforms to IEEE 802.3 10Base-T and IEEE 802.3u
100Base-TX and IEEE 802.3x Ethernet Standards
Store and forward switch architecture for abnormal packet
filtering
Support for half and full duplex on all ports
Backplane up to 2.4Gbps
5M memory Buffer support
Automatic address learning with 4K address entry storage
Filtering and forwarding rate of 14,880~148,800 packets
per second
DIP Switch with Link Mode
The DES-128 8 port 10/100Base-TX module provides dip
