EXTENSION CORDS
Use proper extension cords. Make
sure your extension cord is in good condition and is a
3-wire extension cord which has a 3-prong grounding
type plug and matching receptacle which will accept
the machine’s plug. When using an extension cord,
be sure to use one heavy enough to carry the current
of the machine. An undersized cord will cause a
drop in line voltage, resulting in loss of power and
overheating. Fig. D-1 shows the correct gauge to use
depending on the cord length. If in doubt, use the
next heavier gauge. The smaller the gauge number,
the heavier the cord.
Fig. D-1
MINIMUM GAUGE EXTENSION CORD
RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC MACHINES
Ampere
Rating Volts
Total
Length of
Cord in
Feet
Gauge of Extension
Cord
0-6 120 up to 25 18 AWG
0-6 120 25-50 16 AWG
0-6 120 50-100 16 AWG
0-6 120 100-150 14 AWG
6-10 120 up to 25 18 AWG
6-10 120 25-50 16 AWG
6-10 120 50-100 14 AWG
6-10 120 100-150 12 AWG
10-12 120 up to 25 16 AWG
10-12 120 25-50 16 AWG
10-12 120 50-100 14 AWG
10-12 120 100-150 12 AWG
12-16 120 up to 25 14 AWG
12-16 120 25-50 12 AWG
12-16 120 GREATER THAN 50 FEET NOT RECOMMENDED
FOREWORD
FUNCTIONAL DESCRIPTION
NOTICE: The photo on the manual cover illustrates the current production model. All other illustrations contained in the
manual are representative only and may not depict the actual labeling or accessories included. These are intended to
illustrate technique only.

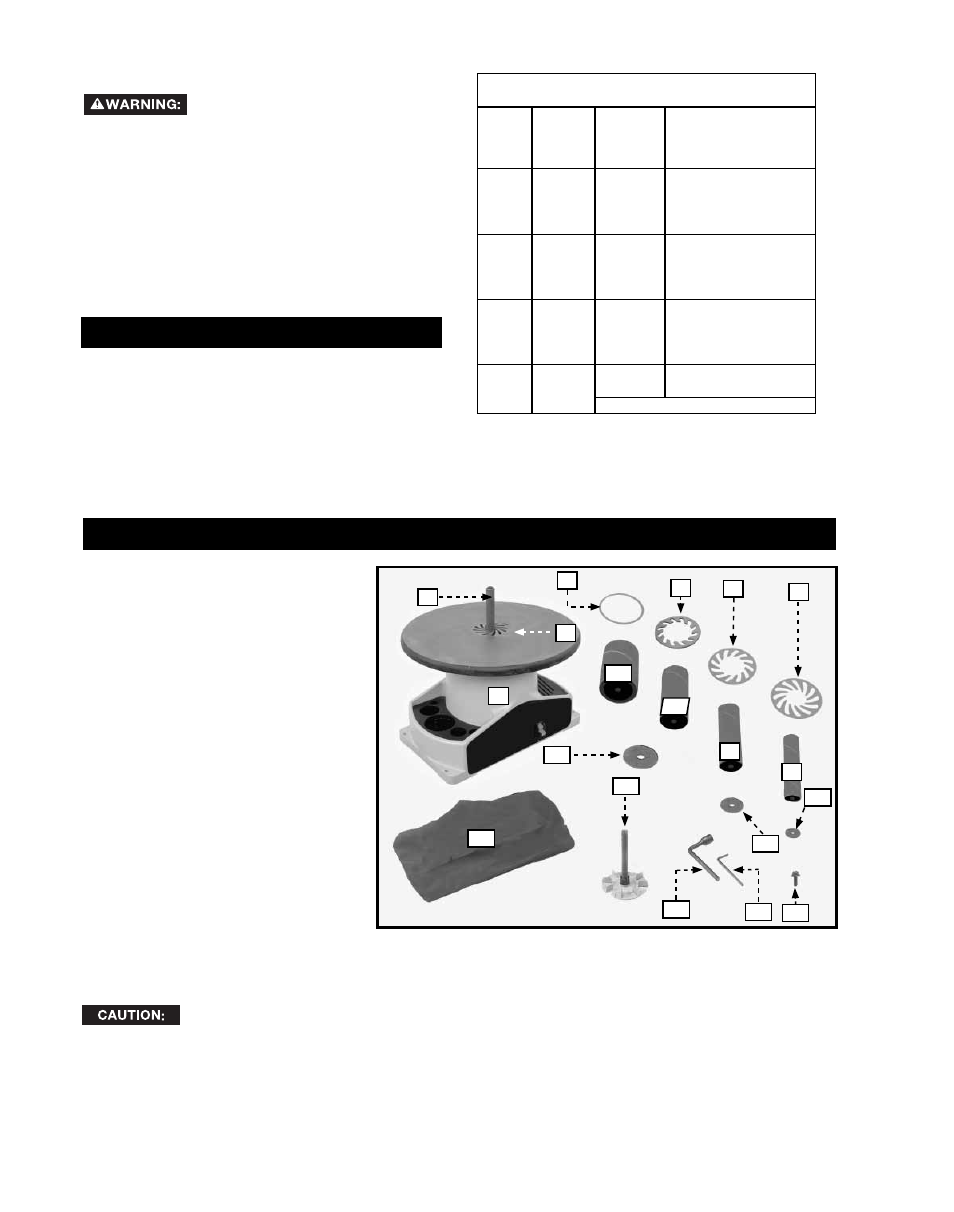

CARTON CONTENTS
UNPACKING AND CLEANING
Carefully unpack the machine and all loose items from the shipping container(s). Remove the rust-preventative oil from
unpainted surfaces using a soft cloth moistened with mineral spirits, paint thinner or denatured alcohol.
Do not use highly volatile solvents such as gasoline, naphtha, acetone or lacquer thinner for cleaning your
machine.
After cleaning, cover the unpainted surfaces with a good quality household floor paste wax.
The Delta Model SA350K has a large 18" diameter cast-
iron table to support large workpieces. This machine has
a heavy-duty motor assembly with a 1/4 H.P. direct drive
induction motor for quiet, and smooth operation.
1. Bench Oscillating Spindle Sander
2. 3/4" Sanding Drum & Abrasive Sleeve
3. Table insert for the 3/4" Assembly
4. Table insert for the 3" Assembly
5. Table insert for the 2"" Assembly
6. Table insert for the 1-1/2" Assembly
7. Table insert for the 1" Assembly
8. 1" Sanding Drum & Abrasive Sleeve
9. 1-1/2 Sanding Drum & Abrasive Sleeve
10. 2" Sanding Drum & Abrasive Sleeve
11. 3" Sanding Drum & Abrasive Sleeve
12. 1-1/4" O.D. Drum Washer
13. 1-3/4" O.D. Drum Washer
14. 2-3/8" O.D. Drum Washer (2)
15. Arbor Screw
16. 3/16" Hex Wrench
17. 1/2" Socket Wrench
18. Spindle Adapter
19. Dust Bag
1
2
3
4
5 6 7
8
9
10
11
12
13
14
15 167 17
18
19
