CONNECTIONS

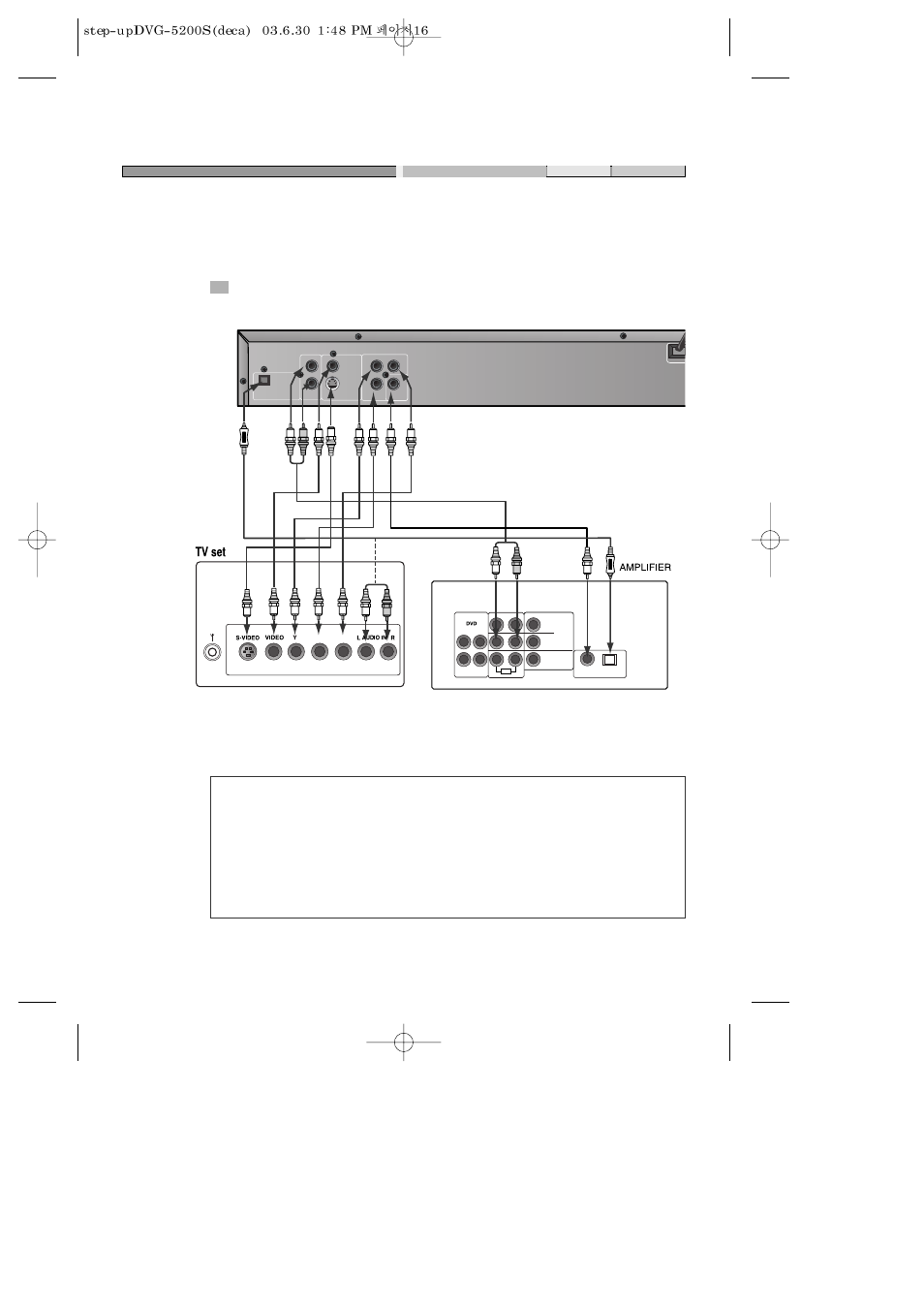

CONNECTED TO A TV AND AN ORDINARY AMPLIFIER
Turn off all equipment before operation.
The unit has many kinds of output modes like A/V output, S-VIDEO output and
digital signal output (COAXIAL, OPTICAL). You may select as you need.
L VIDEO OUT
AUDIO OPTICAL
S-VIDEO
OUT R
Y
Pb
Pr
COAXIAL COMPONENT VIDEO
DVD
CENTER
WOOFER CD IN
WOOFER
OUT
DVD
IN
MONITOR
OUT
VIDEO
COAXIAL IN OPTICAL
R SURROUND L
Pr Pb
