INSTALLATIONS

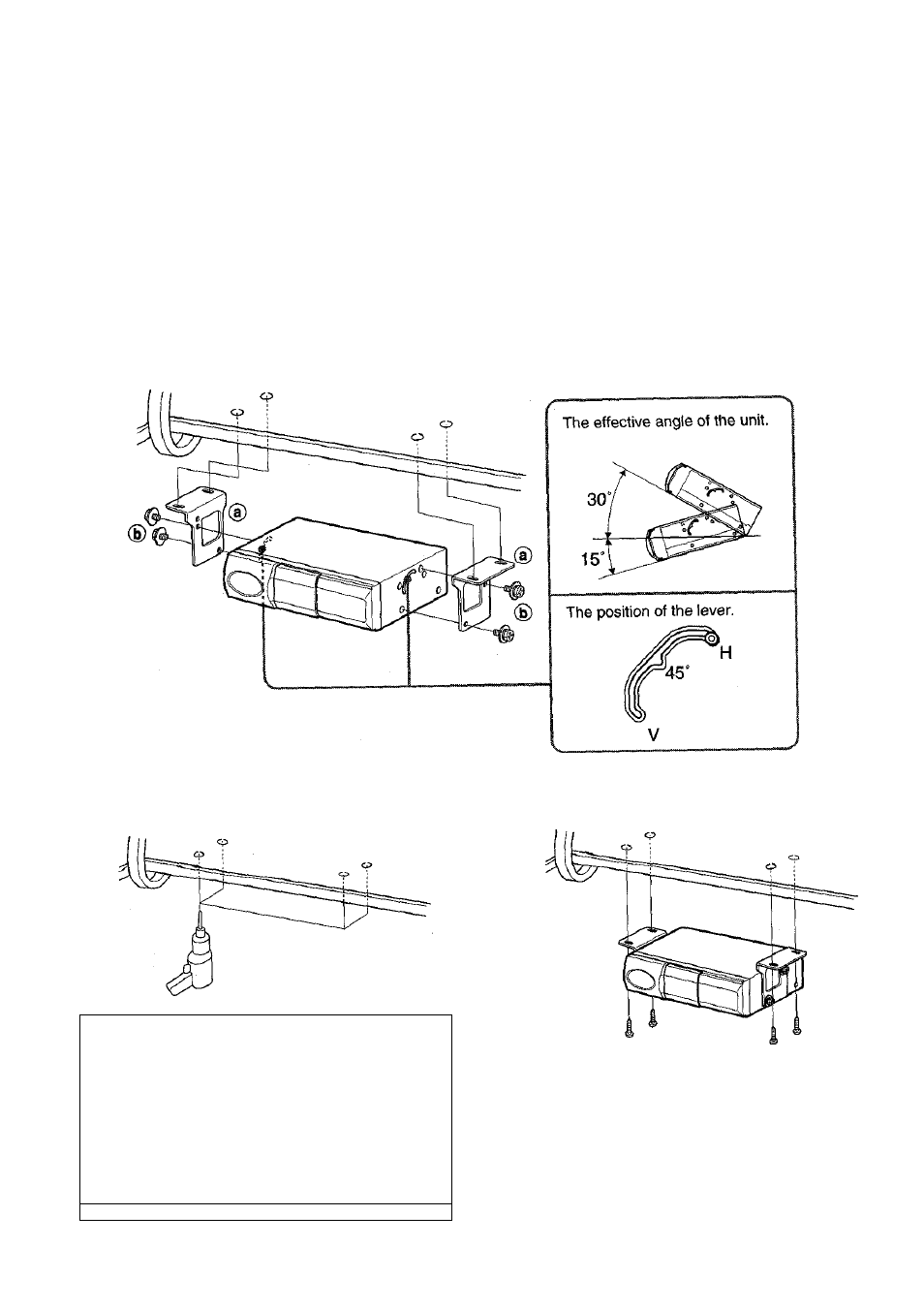

Suspended installation

When installing the unit in the trunk below the

package tray, observe the following.

• Select the mounting location carefully so that

the unit does not hinder the movement of the

torsion bars of the deck lid.

Caution

Before drilling the holes, make sure that there is

nothing on the other side of the mounting surface.

Construction

For details on ®®©..., see page 3.

Making holes

Completion

Sianted installation

Be sure to set the

mounting angle

/15^X^ \

setting levers to the

45/

45° position.

Tapping screws are not supplied.

ENGLISH
