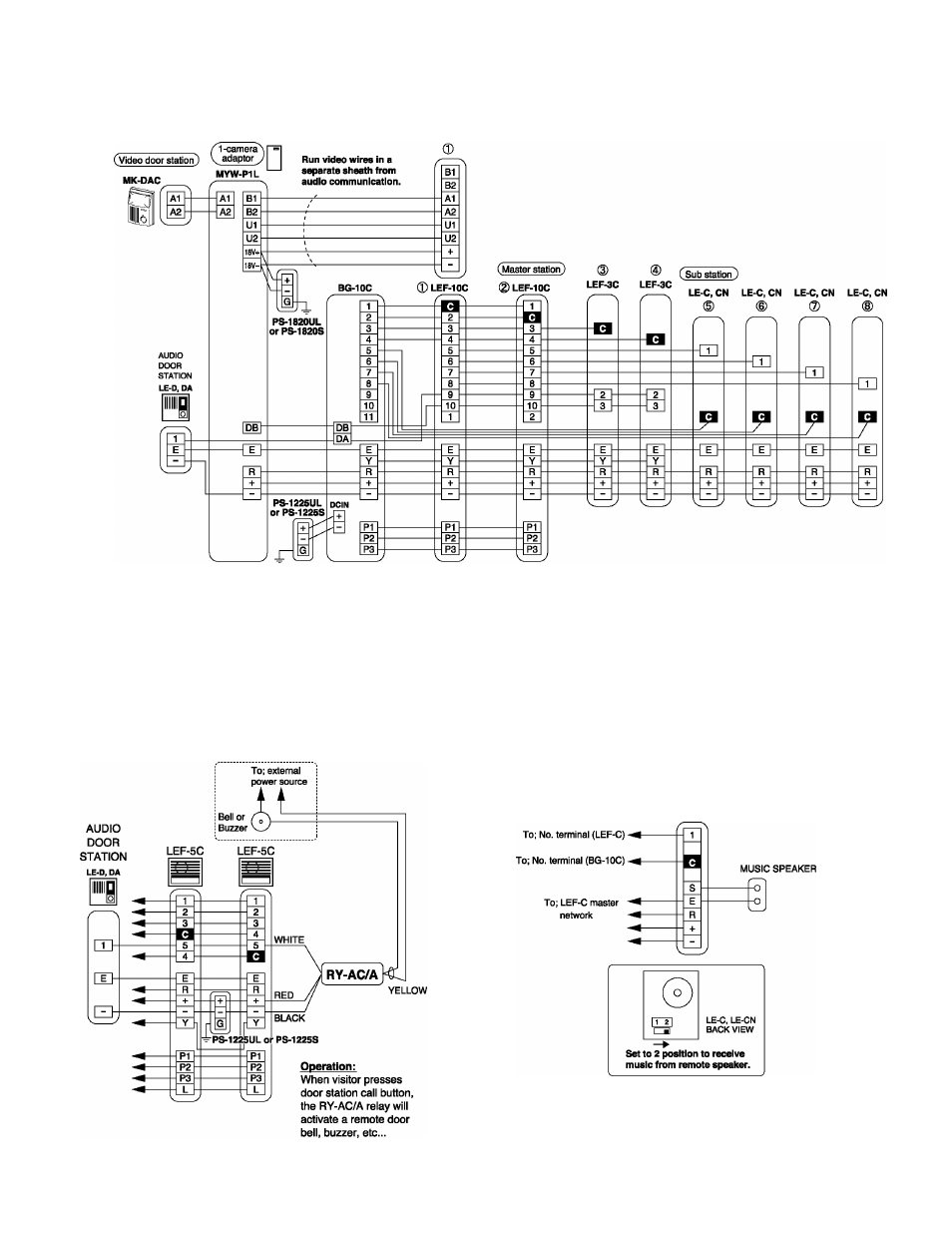

(5) Intermixed System - Audio and PanTilt Video
MYH-CUB
(6) RY-AC connection;
(7) Music speaker connection;
To activate a remote doorbell with the LEF-C system,
use the RY-AC/A relay.
To receive music through a remote music speaker, connect
2 wires to S and E terminals on LEF-C masters and LE-C, LE-CN
subs.
le
-
c
,
le
-
cn
ROOM SUB
When set to 2 position, music is not heard from the intercom station,
but ail-cali announcement can be received.
- 1 1
-
