REPLACEMENT FILTERS
65% Efficiency Main filter 12"x12"x12"........................... 65008
95% Effciency Main filter 12"x12"x12"........................... 65009
99.97% HEPA Main filter 12"x12"x12''.................. ........ 65010
Extended Surface Pre-filter (3.2 sq ft.)........................... 65011
Charcoal (odor control) Final filter..................................65037
Economy Pre-flter (1 sq ft.)................................... ,,, 65039
99 97% HEPA Main fiter 12"x12"x6" {for use with (6)
65037 filters.................................................................. 65042
Charcoal filler with Zeolyte (neutralizes nitric oxide) .65044
Pre-filler wrap 12"x250 yd............................................ 91-963
MAINTENANCE;
WARNING: MAINTENANCE ON THIS UNIT SHOULD BE
PERFORMED ONLY BY QUALIFIED, TRAINED
TECHNICIANS.
1 Motor brushes are available from the tactory by
ordering Part No. 65007. The use ot high performance,
ball sleeve motors provide about 500 hours of brush
operation (depending upon filter condition) Brushes
should be periodically checked after 500 hours use and if
worn, replace as a matter or preventative maintenance.
2 Vacuum Motors are available from the factory by
ordering Part No. 65001 These motors are thermally
orotected by an automatic reset thermal circuit breaker
ano will shut down if they are overheated due to lack of
airflow or locked rotor condition.
DO NOT REPLACE THESE MOTORS WITH A MOTOR
THAT DOES NOT HAVE A THERMAL OVERLOAD!!!
REPAIR PARTS
1) Motor w/screws ....... 65001
2) Motor Gasket ... ........ 65002
3) Rubber Latch............. ........ 65003
4) Clogged Filter Indicator Light.................. ......... 65004
5) ON/OFF Toggle Switch.............. .. ........ 65005
6) Differential Pressure Switch ........ 65006
7) Motor brushes................... ....... 65007
ACCESSORIES
The following accessories and attachments are available
from the factory or from your ACE dealer
Flex Tube.............. ........ 65012
Magnetic Base...................... ........ 65014
8" Diameter Round Nozzle................. . ........ 65015
4" Suction Cup Base 65016
10’ Extension Hose & Coupling........... ...... 65017
3" Casfer/Mobility Kit........................................... ........ 65018
Slot Nozzle.................
........ 65019
20" Slot Nozzle ........ 65036
Mobile Cart..................... .. ..... 65038
‘T" Adapter.......................................................... ....... 65040
Reducer, 1-1/4" (Smoke Extracting Gun). . .. ........ 65041
Reducer, 1-1/2" (Smoke Extracting Gun) ........ 65043
Power-Matic Inductive switch........... .................. ....... 99-800

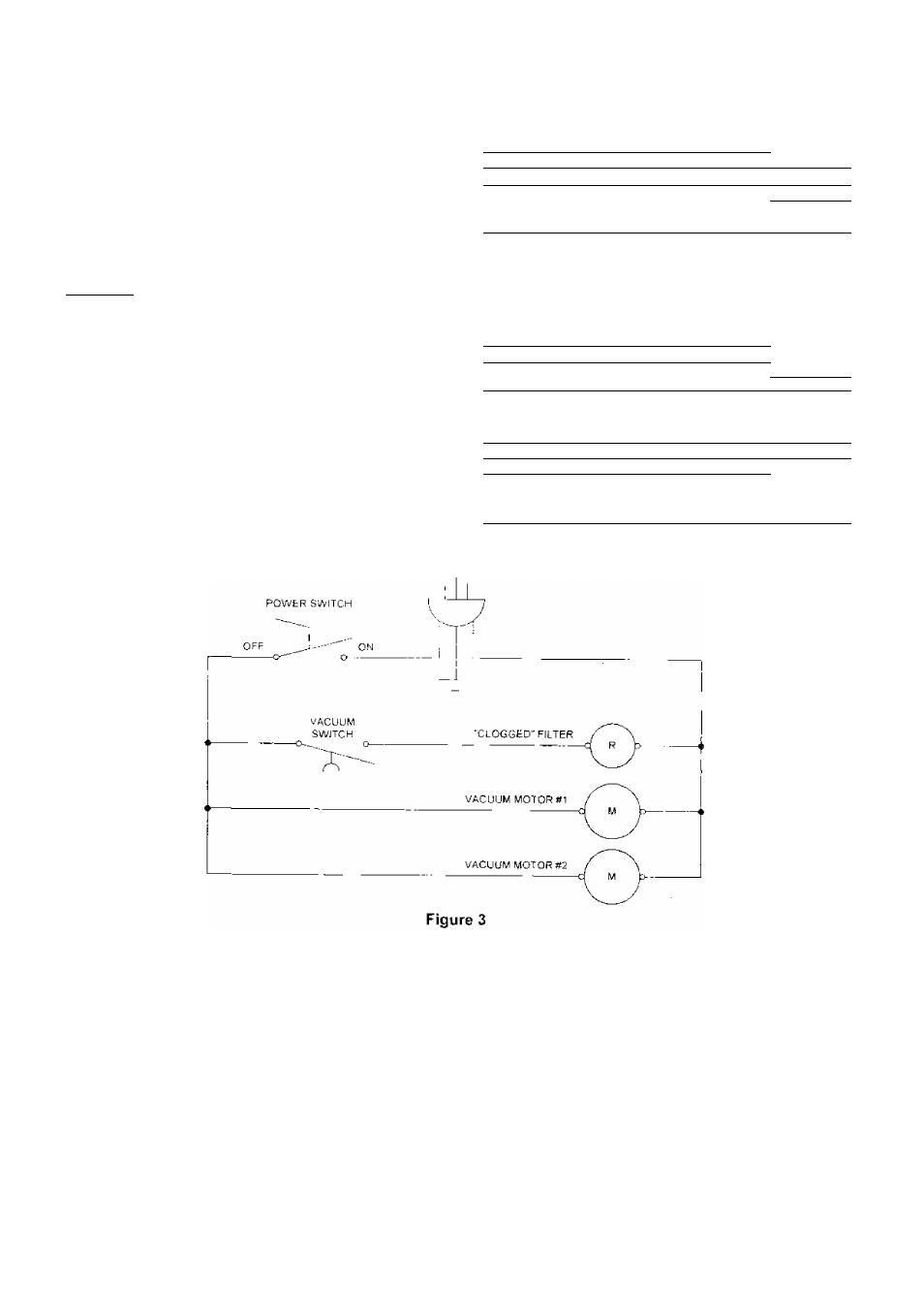

SCHEMATIC WIRING DIAGRAM
