Installation

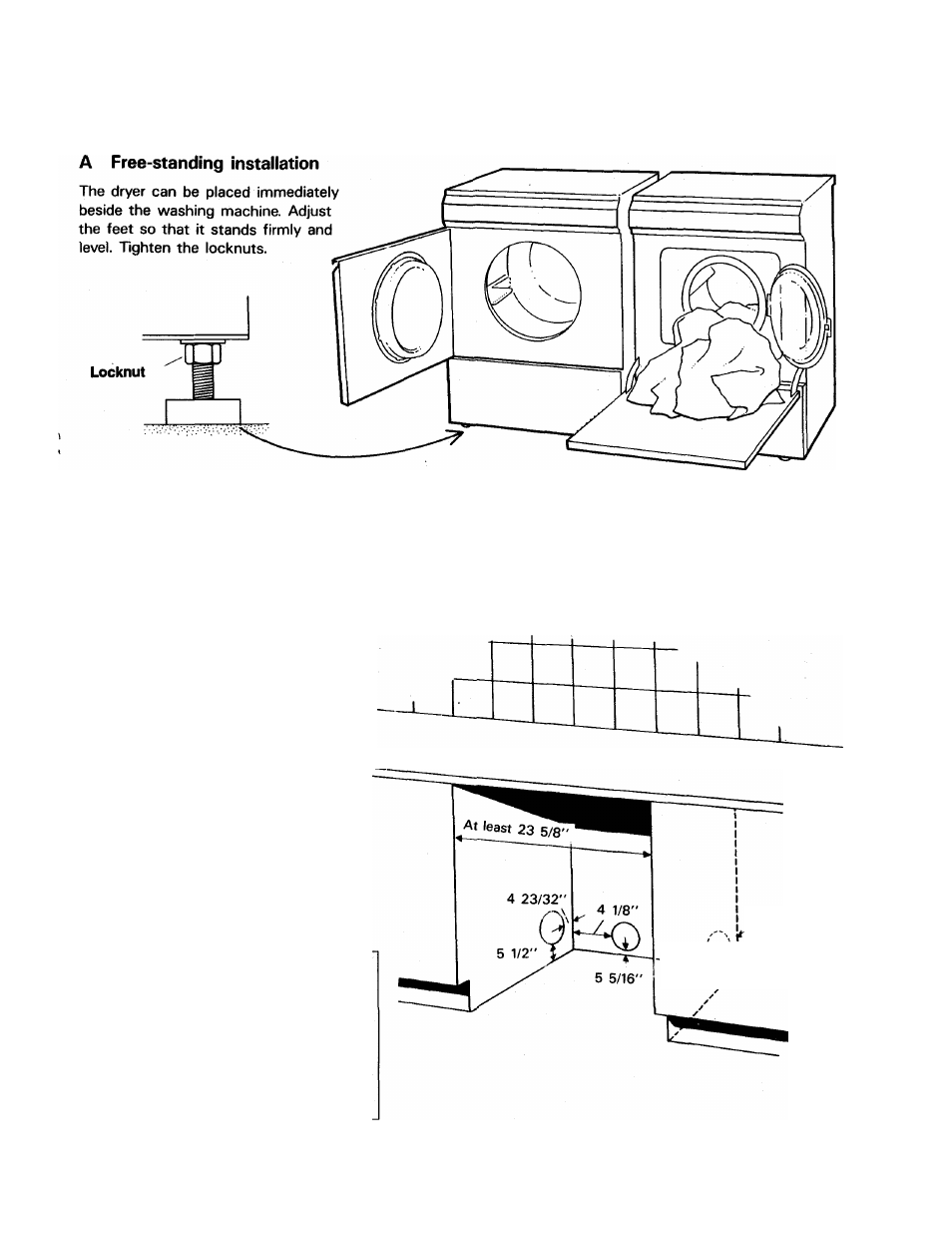

Positioning the tumble dryer
B Built in
The dryer can be built in beneath a
countertop with a height of 33 1/2
- 35 1/2”. At least 23 5/8" width
is needed. Space must also be
available for the exhaust hose on
the left, right or rear of the
machine. See tlte diagram for
hole sizes and positions.
NOTE:
Height Adjustment:
32 1/4" - 33 1/2”
Do not Raise Higher
than 33 1/2”
4 23/32"
How much air does
the dryer need?
The dryer needs about 65 cubic yds.
of fresh air per hour. The room in
which it is installed must therefore
have a sufficient air change rate to
ensure that the machine receives
enough fresh air.
, ^ , Diameter of hole,
----- ^
5 1/2" K
