REPLACEMENT FILTER
Cartridge Filter.................. ................. 65250
MAINTENANCE:
WARNING: MAINTENANCE ON THIS UNIT SHOULD BE
PERFORMED ONLY BY QUALIFIED, TRAINED
TECHNICIANS.
1. Motor brushes are available from the factory by
ordering Part No. 65077. The use of high performance,
bail sleeve motors provide about 500 hours of brush
operation (depending upon filter condition). Brushes
should be periodically checked after 500 hours use and if
worn, replace as a matter or preventative maintenance.
2. Vacuum Motors are available from the factory by
ordering Part No. 65001. These motors are thermally
protected by an automatic reset thermal circuit breaker
and will shut down if they are overheated due to lack of
airflow or locked rotor condition.
DO NOT REPLACE THESE MOTORS WITH A MOTOR
THAT DOES NOT HAVE A THERMAL OVERLOAD!
REPAIR PARTS
1) Motor w/screws............................................ 65001
2) Motor Gasket.............. -...................... ..........65002
3) Rubber Latch...................................... ..........65003
4) Clogged Filter indicator Light........................65004
5) ON/OFF Toggle Switch...................... ..........65005
6) Differential Pressure Switch............... ..........65006
7) Motor brushes............ ........................ ..........65077
ACCESSORIES
The following accessories and attachments are available
from the factory or from your ACE dealer:
FlexTube.........................................................65012
Magnetic Base................................................ 65014
8" Diameter Round Nozzle.............................. 65015
4" Suction Cup Base....................................... 65016
10' Extension Hose & Coupling...................... 65017
3" Caster/Mobility Kit.......................................65018
Slot Nozzle......................................................65019
20" Slot Nozzle................................................65036
Mobile Cart......................................................65038
“T Adapter....................................................... 65040
Reducer, 1-1/4" (Smoke Extracting Gun).......65041
Reducer, 1-1/2" (Smoke Extracting Gun)....... 65043
Power-Matic Inductive switch..........................99-800

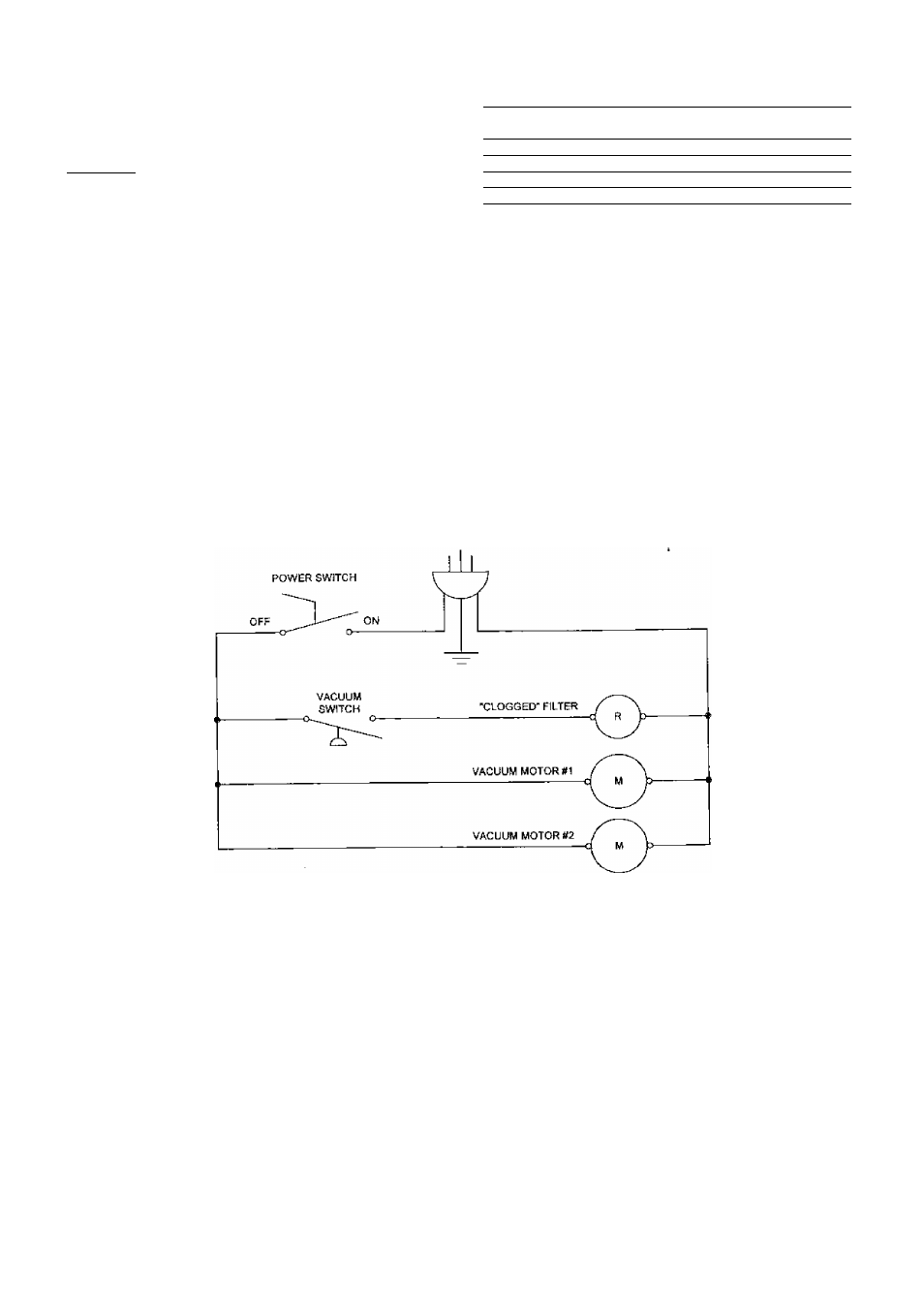

SCHEMATIC WIRING DIAGRAM
Figure 3
ACE INDUSTRIAL PRODUCTS
A Division of:
Associated Equipment Corporation
5043 Farlin Avenue
St. Louis. MO 63115
Tel. (314) 385-5178
Fax. (314)385-3254
W2051
Rev. 02/05 9199-0009
