JKMSEJN

insiclllciuun

How to Install the CD3010X AM/FM Stereo
Radlo/Compact Disc Player with Remote
Control and Auxiliary input Jack

o. nwirmy

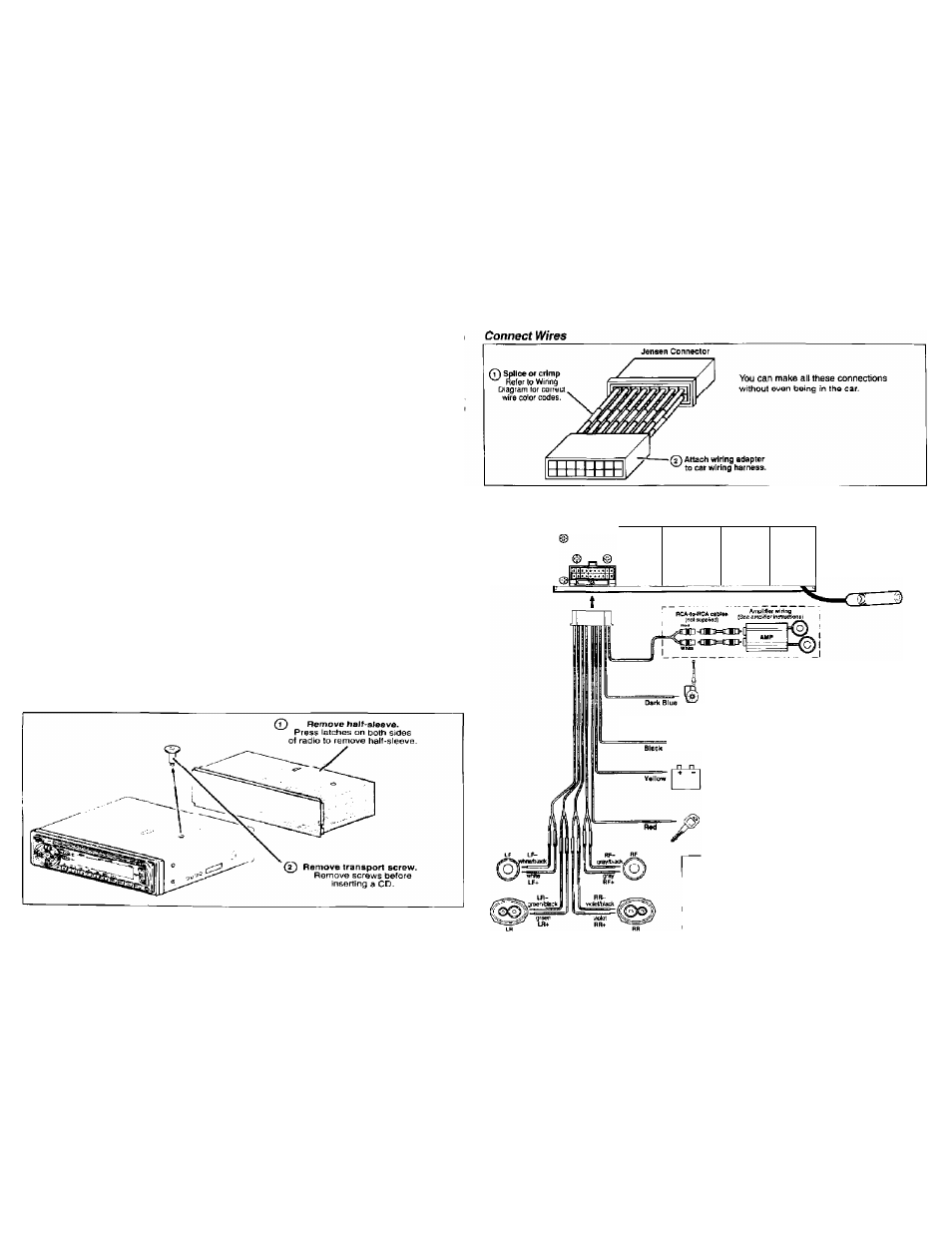

Wiring with a Wiring Adapter

(Purchase Separately)

Wetcome!
For your Jensen stereo to work right, it must be installed correctly. This manual wKl show you how to
install your new Ijkn a pro It’S a good idea to read all of these instructions before you begin the
installation. Most Installaf/ans are straightforward and can be handled by a do-it-yourselfer with the right
tools and patience. But. do-it-yourself installation isn't for everyone. You may want to turn the installation

job over to an experienced installer.

Wprmnfy Servlet*

If your Jensen stereo should ever require service, you will need to have the original dated receipt. If you
ever need to return the unit for any

reason,

always include the receipt with the product.

1. Before You Begin Installation

Tools and Supplies Needed

Speaker Requirements

Wiring Diagram

• Torx type. Flat and Phillips screwdrivers

• Wire cutters and strippers

• Tools to remove existing radio (screw driver,

socket wrench set or other tools)

• Radio romoval tool for Ford care (oarly IflRfte

models and newer)

• Electrical tape
•Crimping tool

• Volt meterATest light
• Crimp connections
• 10 gauge wire for power connections

•16-18 gauge speaker wi re

Only connect the CD3010X to spoakere rated In
the load impedance range of 4 to 8 ohms.

Speakers with e load impedance less than 4

ohms could damage the CD3010X.

Disconnect Battery

Before you begin, always disconnect

the battery negative terminal.

2. Preparation

Radio

Remove Old Radio

Standard Bracket Mounted rr^M nnrlnp .Ippnt

-:f[|

1 ifi'

|F|)©

Power Antenna

Connect to power antenna or amplifier, If not used,
tape bare end of wire.

Ground
Connect to ground terminal or clean, unpamted part

of chassis.

Mpmnry/Banery

Connect to battery or 12 volt power source that is

always alive.

77re

radio will not work if this wire Is not

connected.

Acceesory^gnitlon

Connect to existing radio wire or radio fuse.

Fuai»s

When replacing a fuse, make sure new fuse is correct

type and amperage. Using an incorrect fuse could

damage radio. The C03010X uses one 10 amp fuse

located below wiring connector

• 10 amp fast blow ATO
