Autostart AS-2450vTW-FM - Manual (Page 4)

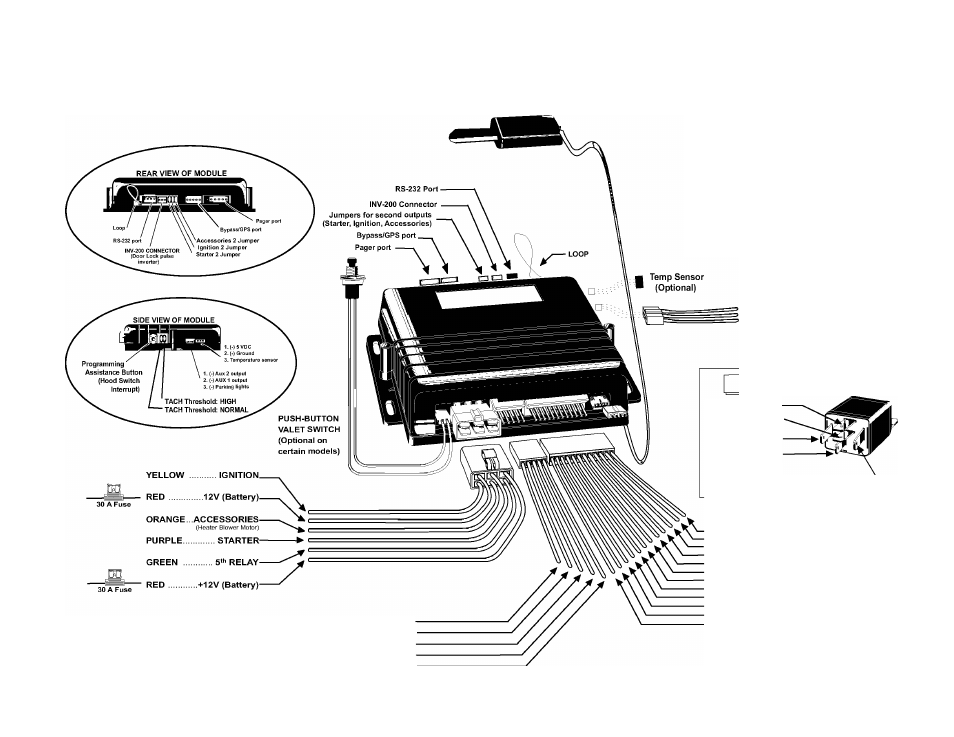

WIRINGSCHEMATIC
For Automatic Transmissions :
Leave Orange wire unconnected.
Note: This product supports the Trilogix bypass.
To program the Trilogix bypass to the Autostart remote
starter, please ensure that the Trilogix bypass and the
Autostart starter are powered up simultaneously.
3. YELLOW/WHITE....... (-) PARKING LIGHTS
2. BLUE/WHITE ... (-) AUX 1 output
1. GRAY/LIGHT BLUE ... (-) AUX 2 output
Optional Starter Kill Relay
N/A87
STARTER WIRE 87A
(Solenoid Side)
IGNITION (+) 85
STARTER WIRE 30
(Key Side)
86
Start Kill Output (-)
1- BLACK................................GROUND (-)
2- PURPLE.................................. TACH (AC)-
3- GREY...................... HOOD SWITCH (-)
4- ORANGE ............ BRAKE SWITCH (+) .
5- YELLOW........... PARKING LIGHTS (+) .
12- YELLOW.................................. (+) Glow plug input
11- GREY....................................... (-) NEG. Door input
10- WHITE.......................................(-) GROUND when running
9- PURPLE.................................... (-) EXT. TRIGGER input
8- ORANGE................................... (-) Parking Brakes input
7- WHITE/ORANGE........................ (-) Starter kill output
6- BLUE/WHITE.............................. (+) POS. Door input
5- WHITE/GREEN........................... (-) DISARM
4- WHITE/BROWN.......................... (-) REARM
3- GREEN ...................................... (-) UNLOCK
2- BROWN ..................................... (-) LOCK
1- BLUE ........................................ (-) TRUNK
V1.00 MO - Oct. 2, 2007
15 A Fuse
