Wall mounting
• Fix the drilling template to the wall.
• Make 3 0 8mm holes in the wall 2 at points I, 1 as desired at
points L.
• Insert the three 0 8mm expansion plugs into the wall.
• Insert 2 5x45 screws at points I but do not tighten them
completely.
• Adjust the unit so that it is positioned at a right angle to the wall
by turning the two support screws G.
• Fit the hood into holes I, tighten the 2 screws.
• From inside the hood, insert the third 5x45 screw into hole L. -

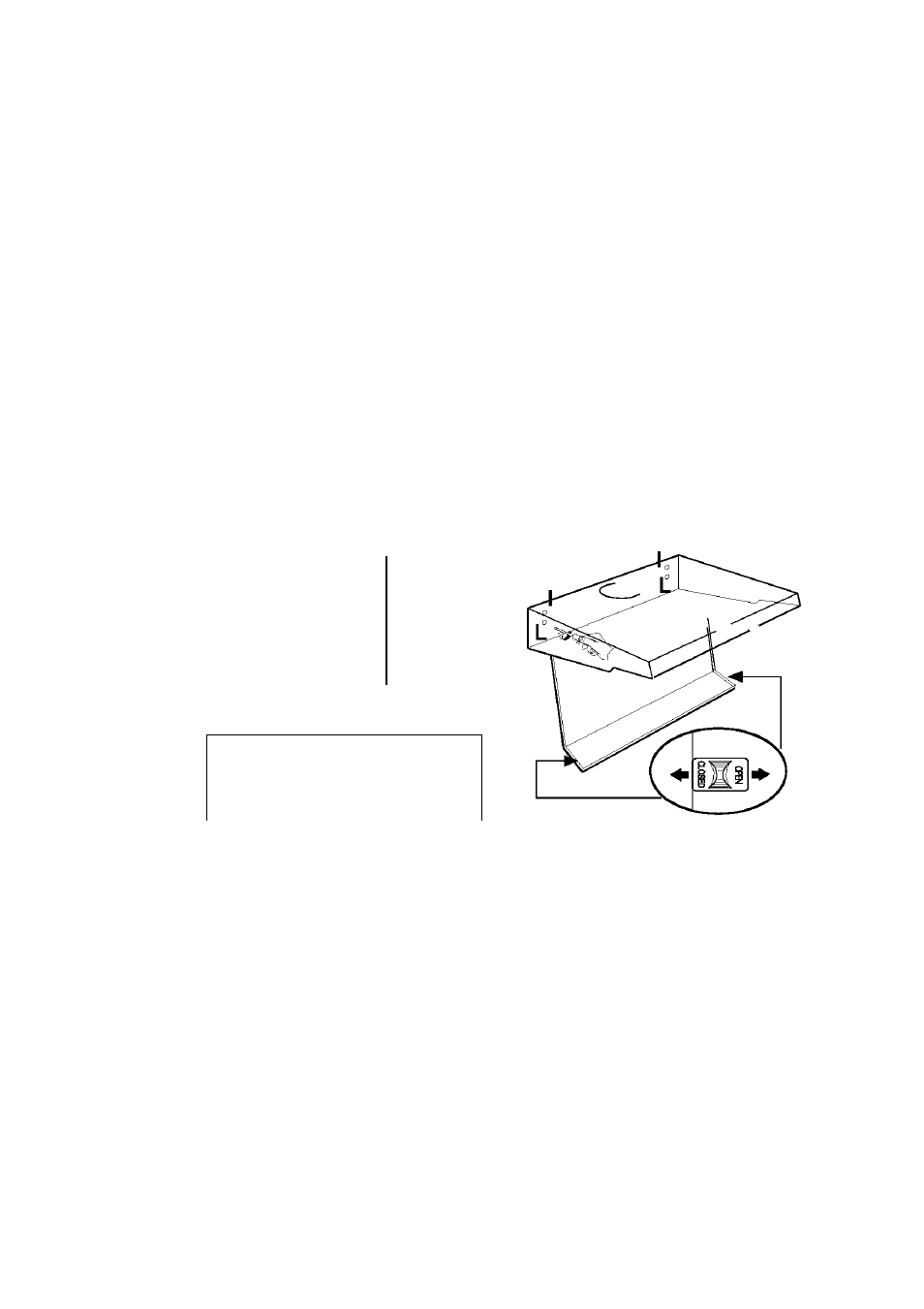

Fig. 5
2
^ 2
1 .
*[
o
T5------------------
L
□
-------
GT
1 1
