7

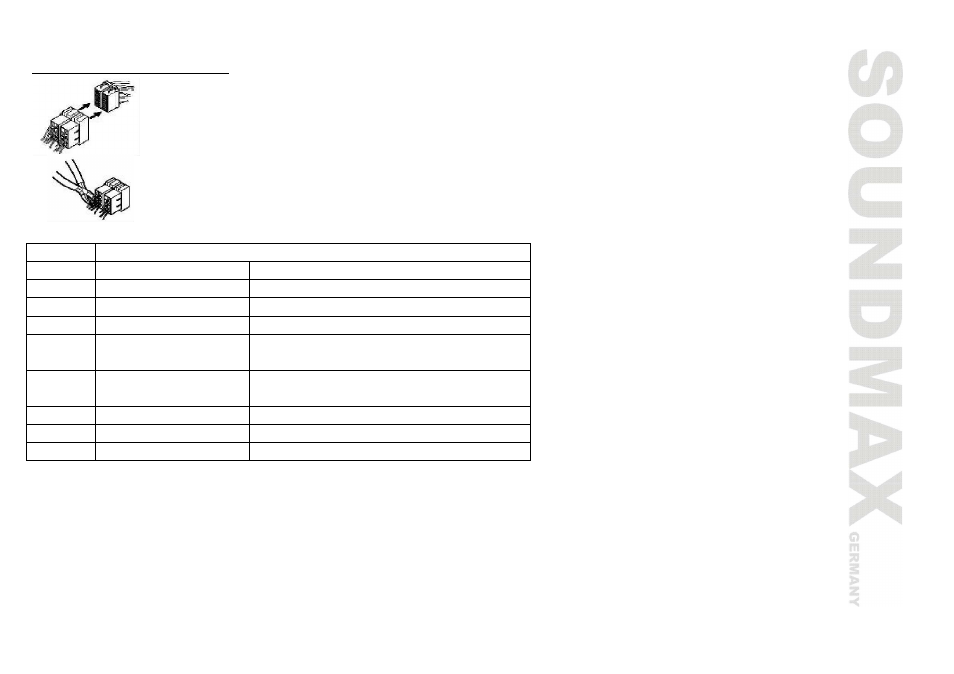

Using the ISO Connector
1. If your car is equipped with the ISO connector, then connect the ISO connectors as
illustrated.
2. For connections without the ISO connectors, check the wiring in the vehicle
carefully before connecting, incorrect connection may cause serious damage to this
unit.
Cut the connector, connect the colored leads of the power cord to the car battery as
shown in the colour code table below for speaker and power cable connections.
Location FUNCTION
Connector A Connector B
1 Rear Right(+)---Blue
2 Rear Right(-)---Blue/White Stripe
3 Front Right(+)---Grey
4 Battery 12V
(+)/yellow
Front Right(-)---Grey/White Stripe
5 Auto
Antenna/Orange
Front Left(+)---Green
6 Panel light/White Front Left((-)---Green/White Stripe
7 ACC+/red Rear Left(+)---Brown
8 Ground/black Rear Left(-)---Brown/White Stripe
