Installation

Instructions

T506.60X

BATH/SHOWER TRIM KIT WITH DIVERTER

Congratulations on purchasing your American Standard faucet with
EverClean™ finish a features found only on American Standard faucets.

EverClean™ Finish

• One wipe effortlessly removes spots

• Eliminates the need for cleaners and scrubbing

• Permanent surface protectant remains beautiful

for the life of the faucet

• EverClean™ available on: Polished Chrome, Satin Nickel,

Stainless Steel, Polished Brass (or any combination of these finishes)

To ensure that your installation proceeds smoothly-please read these

instructions carefully before you begin.

Certified to comply with ANSI A112.18.1

Mg68952

Recommended Tools

Flat Blade Screwdriver

^03

Pipe Wrench

Phillips Screwdriver

Plumbers' Putty or Caulking

Adjustable Wrench

Channel Locks

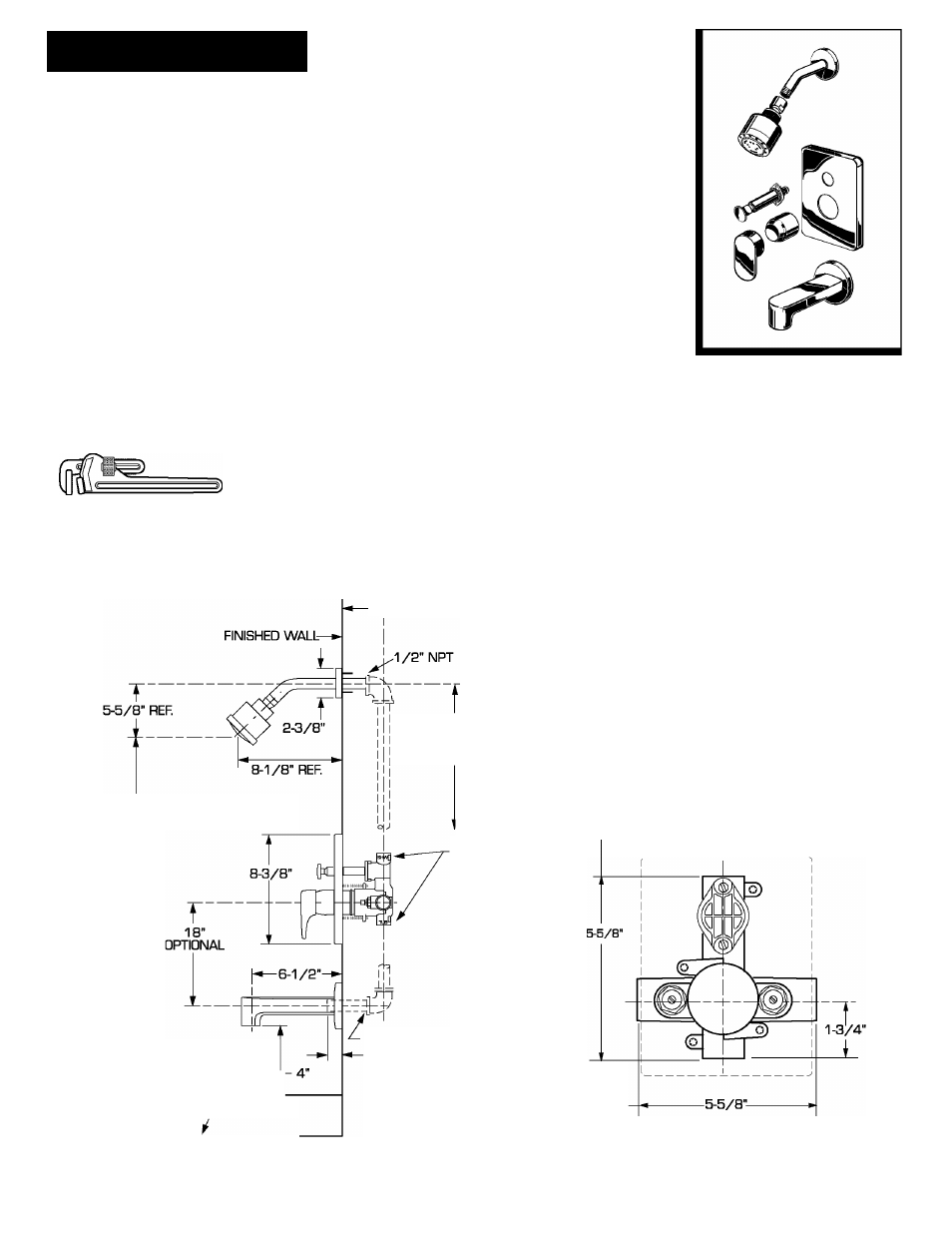

ROUGHING-IN DIMENSIONS

■ To assure proper positioning in relation to wall, note

roughing-in dimensions.

-^1-5/8" TO 3-1/4"

OPTIONAL TO

FINISHED FLOOR

USUALLY BETWEEN

80" AND SB'

74"FOR

HEAD CLEARANCE

OUTLETS 1/2" NPT

"SEE ILLUSTRATION"

1/2" NPT

1-1/2" REF.

TOP OF^

TUB RIM \

,,

- BOTTOM OF

TUB

INLETS

1/2" NPT

THREADED INLETS (STOPS)
