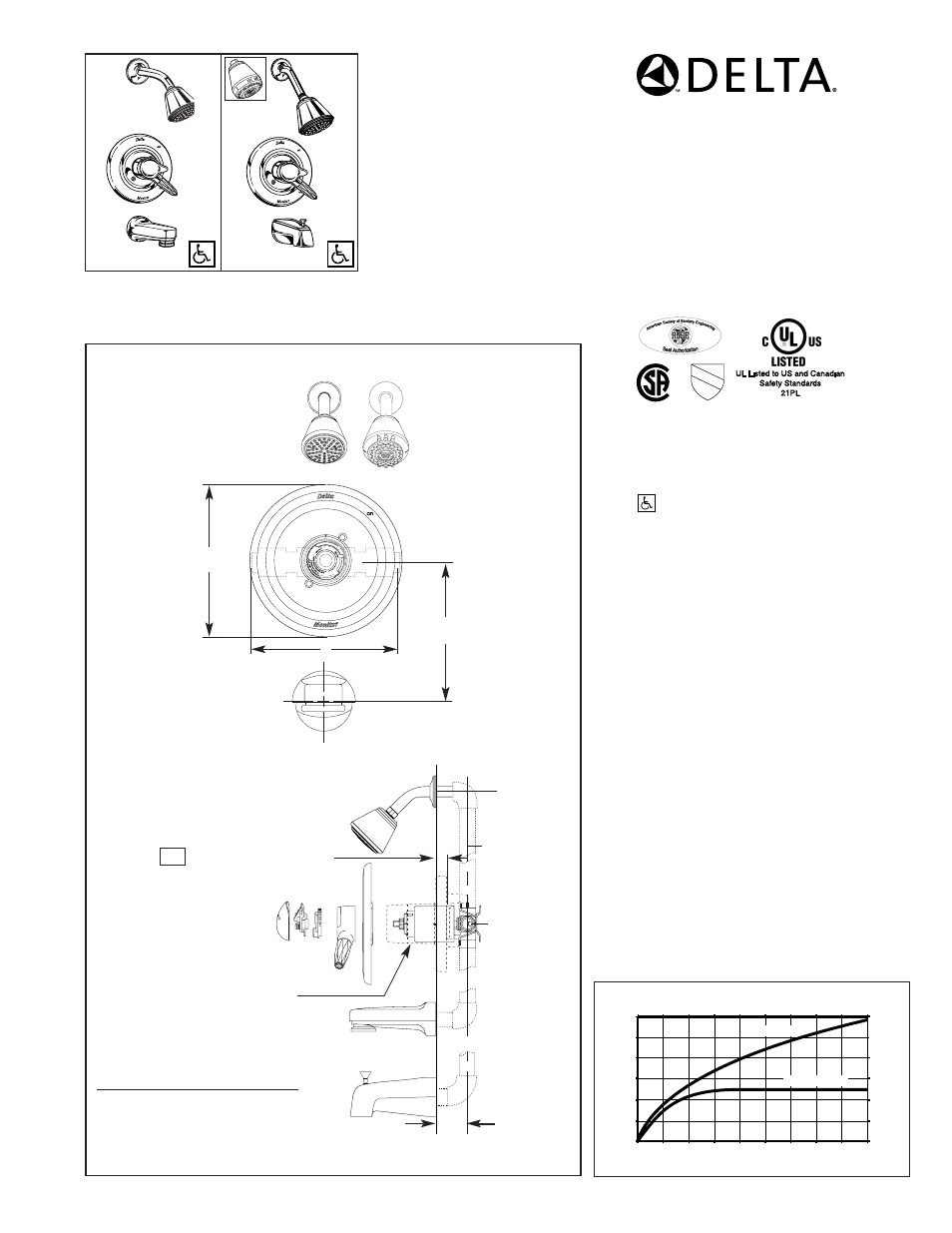

Delta 1748-MDS - Manual

COMPLIES WITH:
•
ASME A112.18.1M-1996
• ASSE 1016-1996
• CSA B125-93
• Showerhead GSA A-A-240
Indicates ADA compliance to
CABO/ANSI A117.1-1992
• ASSE Seal Authorized
• City of L.A. approved
• CSA Certified
• IAPMO Listed
BATH MIXING
VALVES
■ Tub/Shower (1748 Series)
■ Single Handle
■ Monitor ® with Scald-Guard ® Valve
■ Pressure Balance
■ Volume Controlled with Lever Handle
■ Temperature Controlled with Dial
Submitted Model No.: _____________________________________________
Specific Features: ________________________________________________
STANDARD SPECIFICATIONS:
•
Requires 1 1 ⁄
2
" (38 mm) wall cavity.
• Back-to-back installation capability.
• Solid brass fabricated body .
• Monitor ® with Scald-Guard ® valve.
Maintains a balanced pressure of hot
and cold water even when a valve is
turned on or off elsewhere in the system.
• Lever volume control handle; temperature
adjustment dial.
• Field adjustable to limit dial rotation
into hot water zone.
• Maximum dial rotation adjustable
between 90° and 180°.
• Red and Blue graphics indicate
hot/cold temperature adjustment.
1748 1748-MDS
0
1
2
3
4
5
0 10 20 30 40 50 60 70 80 90
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
0 69 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)
Showerhead
Tub Filler
2" (50.8 mm)
C/L Supply
Lines
If recessed, the escutcheon
screws may need to be shortened.
Plus or minus 1/2" (12.7 mm) - B -
Cover must be removed prior
to installation of trim.
Inlets
8" (203 mm) Min.-
18" (457 mm) Max.
7 1/2"
(190.5 mm)
A
Dimensions A
I.P.S. or C.W.T. 2 1/2 " (63.5 mm)
I.P.S. or C.W.T. w/stops 5 1/2 " (139.7 mm)
®
®
U P
C
UL Listed to US and Canadian
Safety Standards
21PL
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation. Dimensions are for reference only.
2.D.17
