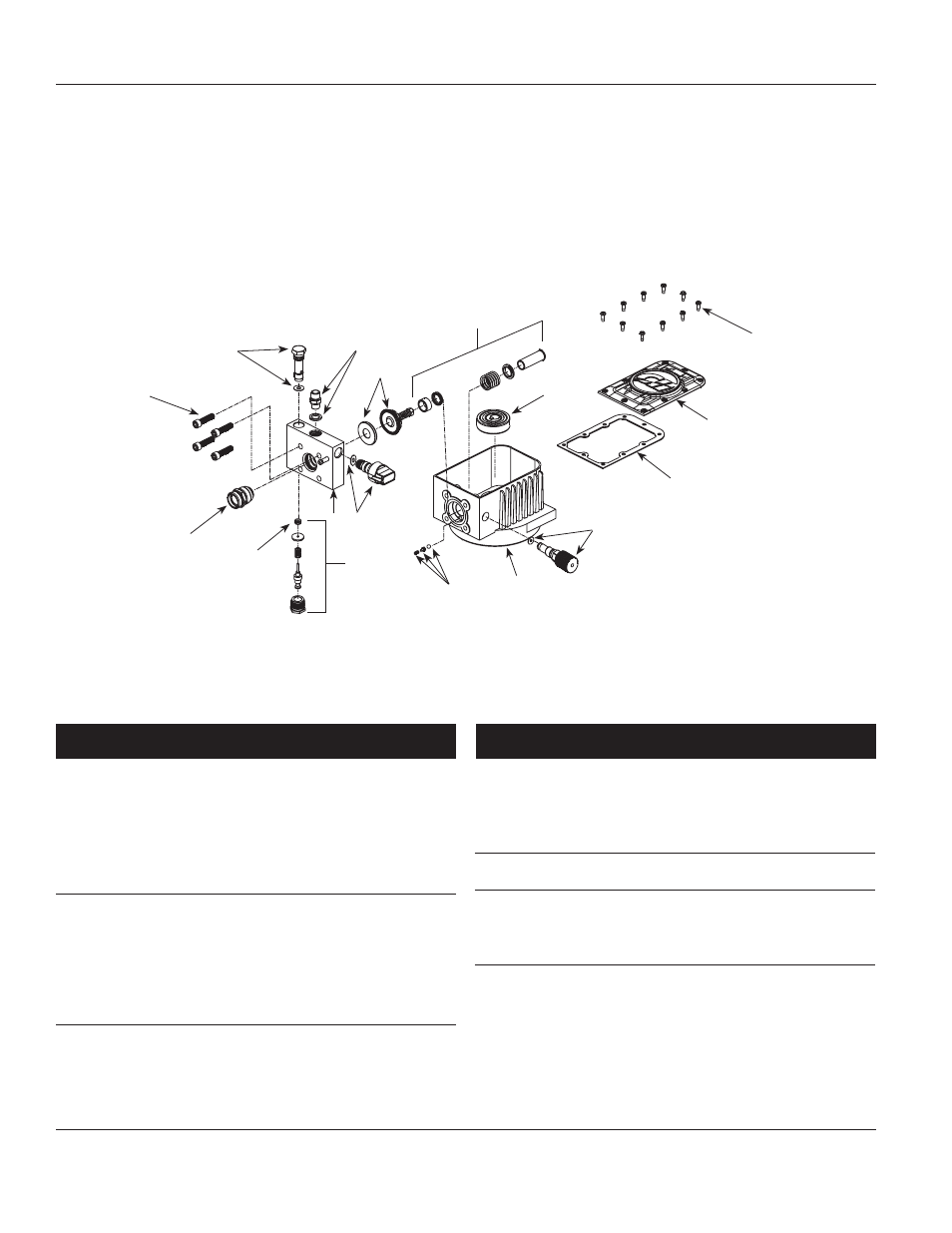

replacement Parts list

18

for Replacement parts and Accessories,
contact Your local Service center or call 1-800-626-4401

Operating Instructions and Assembly Instructions

Please provide following information:

Address parts correspondence to:

- Model number

Campbell Hausfeld

- Serial number (if any)

Attn: Customer Service

- Part descriptions and number as shown in parts list

100 Production Drive

Harrison, OH 45030 U.S.A.

1

Outlet valve assembly

AL129600SV 1

2

Hose adapter (Includes washer) AL104700SV 1

3

Diaphragm kit (Check valve

See chart

kit included)

on page 17

1

4

Piston kit

AL131502SV 1

5

Eccentric and

See chart

bearing kit

on page 17

1

6

Faceplate screws

HP007118AV 10

7

Cast faceplate

AL045102AV 1

8

Faceplate gasket

AL013702AV 1

9

Pressure valve assembly

AL131401SV 1

10

Housing kit

See chart

(Includes 20,29, & 30)

on page 17

1

ref.

Part

No.

Description

No.

qty.

ref.

Part

No.

Description

No.

qty.

11

Check valve kit

AL163200SV 1

12

Prime/Spray valve assembly

AL132100SV 1

13

Pump block (Incl. all washers)

AL042413SV 1

14

Outlet prime button kit

AL159500SV 1

15

Prime button seal

AL162000AV 1

16

Inlet valve assembly

AL165400SV 1

17

Block bolts

ST070819AV 4

*

Shaft seal (motor)

AL045503AV 1

*

Motor

See chart

on page 17

1

*

Oil, Hydraulic, 16 oz bottle

AL170200AV 1

* Not shown

www.chpower.com

17

16

15

14

13 12

11

10

9

8

7

6

5

4

3

2

1
