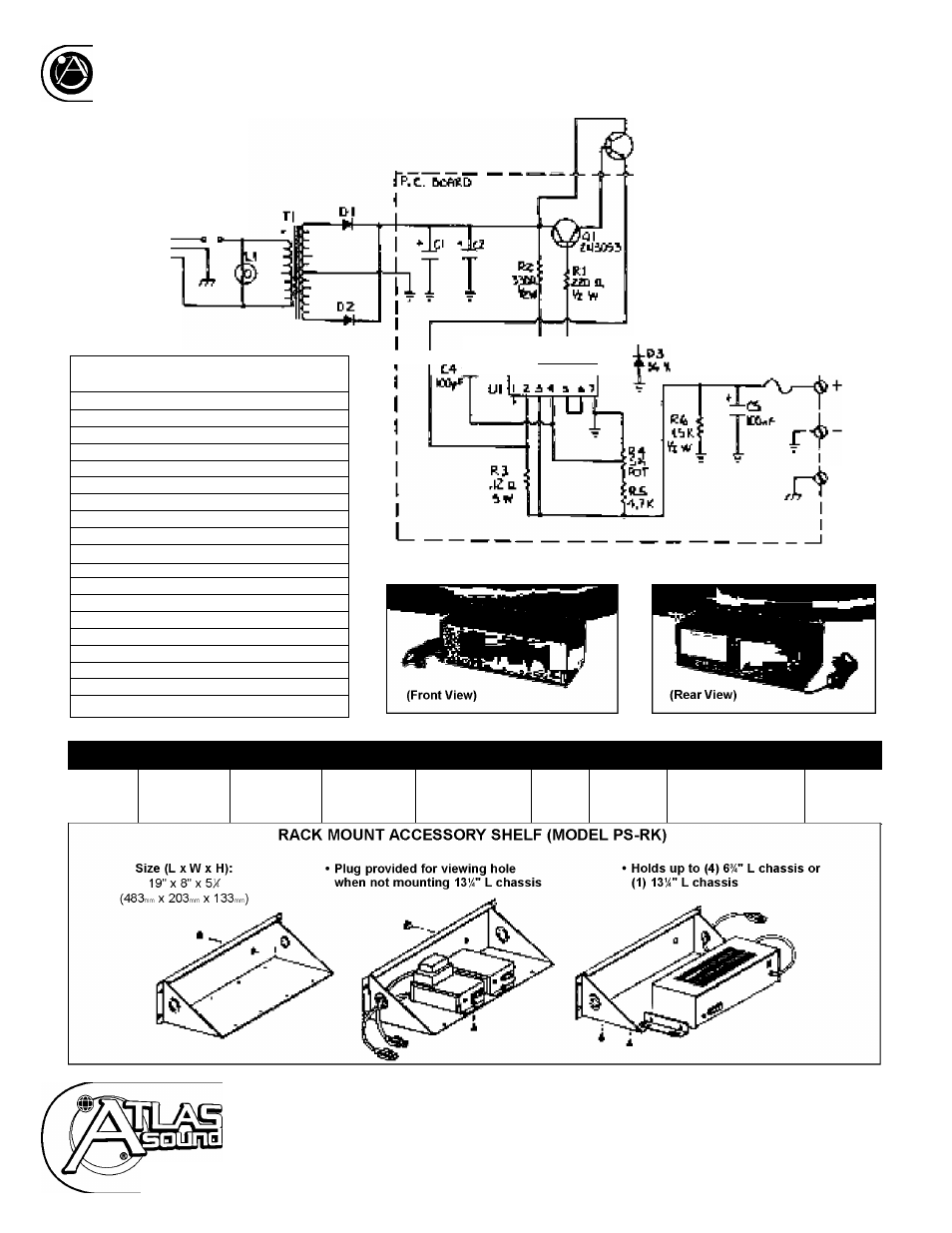

REGULATED DC POWER SUPPLY
MODEL PS24-2R
INSTALLATION INSTRUCTIONS
I
titjanT
tlíLlWEÍ
■n
PARTS LIST
REF
DESCRIPTION
PART NO.
CB1
Circuit Breaker 1 AMP
263562
L1
Pilot Lamp 117 VAC
113209
T1
Transformer
275577
D1, D2 Diode 10 AMP 50 V
111104
C1, C2 Capacitor 4700 MF 50 V 253715
F1
Fuse, AGC2
111236
-
PC Board Assembly
275675
Q1
Transitor 2N3053
111031
Q2
Transitor 2N3055
111023
U1
Regulator LM723
275577
D3
Zener Diode 36 V
257667
C4
Capcitor 100 PF Dsic
110353
C5
Capcitor 100 MF 35 V
188401
R1
Resistor 220 ohm 1/2 Watt
186561
R2
Resistor 330 ohm 1/2 Watt
110795
R3
Resistor .12 ohm 5 Watt 275589
R4
Trimpot 5K
244370
R5
Resistor 4.7K 1/2 Watt
110485
R6
Resistor 1.5K 1/2 Watt
110515
r~jnT77
bull IB a
G W D
MODEL
INPUT
OUTPUT
(NOMINAL)
RIPPLE @
FULL LOAD
REGULATION
0 - FULL LOAD
PILOT
LAMP
FUSE
SIZE
L x W x H
WEIGHT
PS24-2R
105-125 VAC
60 Hz, 110 W
24 VDC
2 AMPS
.5m
500mV
X
Primary
Secondary
13
J4
' x 6
1
4" x 4
34'
337
mm
x 159
mm
x 121
mm
15.5lbs.
Specifications are subject to change without notice
AtlasSound.com
1601 JACK MCKAY BOULEVARD ENNIS, TEXAS 75119 U.S.A.
©2002 ATLAS SOUND LP
Printed in U.S.A.
00402
TELEPHONE: (800) 876-3332 • FAX: (800) 765-3435
ATS001212 Rev A 04/02
PN 263856
