Installation instructions
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

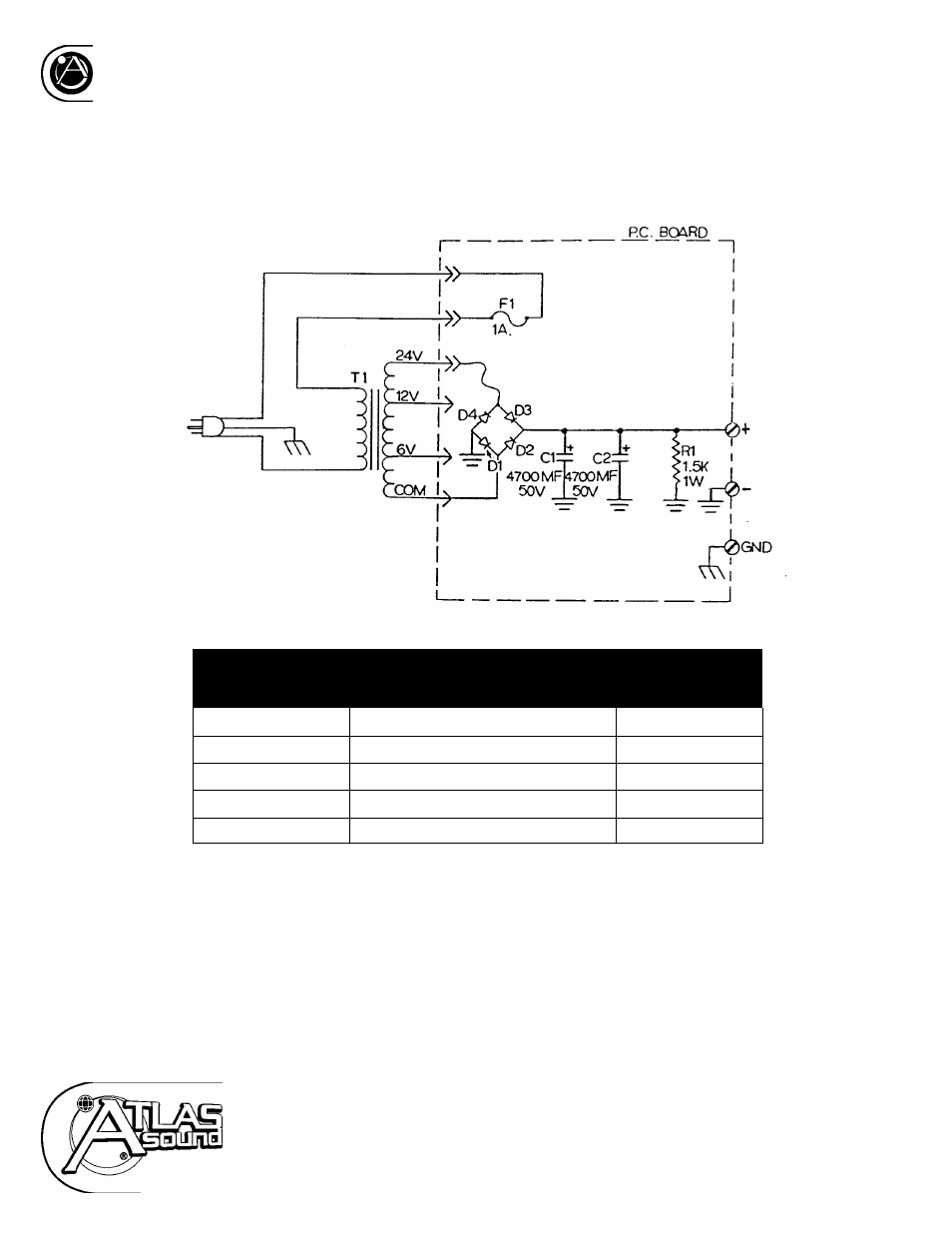

PS24-20
DC POWER SUPPLY
INSTALLATION INSTRUCTIONS
INPUT - 117 VAC @ 60 Hz
OUTPUT - 6,12, 24 VDC 2 Amps
Ref. Designator
PARTS LIST
Description
Part No.
T1
Power Transformer
248827
C1, C2
Capacitor, 4700mf 50v
253715
R1
Resistor, 1.5k 1w
110728
D1, D2, D3, D4
Silicon Rect., 400 piv. 2 amp
110973
F1
Fuse, 1 amp AGC 1
111368
OUTPUT VOLTAGE CHANGE INSTRUCTIONS
1. Remove bottom cover and locate terminal strip with
quick-on connector.
2. Remove quick-on connector from 24 volt terminal and
reconnect to 6 volt or 12 volt as desired.
Specifications are subject to change without notice
1601 JACK MCKAY BOULEVARD ENNIS, TEXAS U.S.A. • TELEPHONE: (800) 876-3332 • FAX: (800) 765-3435
©2001 ATLAS SOUND LP
Printed in U.S.A.
00901
ATS000826 RevB 9/01
PN 248886
