Virtual Tach System
* Virtual Tach System combines the latest microcontroller technology and a complex algorithm that took years to develop. VTS
is able to effectively monitor the engine starting sequence and release the starter at the right time without physically connecting
the tach wire to the remote starter. The VTS constantly monitors the data and readjusts itself automatically in order to maximize
its capability to start the engine properly in any weather or deteriorating battery condition (automatic transmission only).
Optional Time Delay Adjustment in Virtual Tach System
Follow these steps to program crank time adjustment, if needed:
1. Flash the hood pin (see page 1 ) — the parking lights will stay on for up to 20 seconds.
2. Before the lights go out, press and hold the brake pedal and press the I and II buttons simultaneously — the parking lights
will flash 4 times. Do not release the brake pedal.
3. Press the I button if you wish to increase the time delay or the II button if you want to decrease it. The time delay will be
increased or decreased by 50ms. and the parking lights will flash once every time the I or II button is pressed.
4. Press the I and II buttons together to save the settings you have entered.
5. Release the brake pedal - the time delay programming is now complete.
Tach Programming
1 . Flash the hood pin (see page 1) — the parking lights will stay on for up to 20 seconds.
2. Before the lights go out, press and hold the brake pedal and press the I and II buttons simultaneously — the parking lights
will flash 4 times. At that point, release the brake pedal.
3. Start up the engine and allow the vehicle to reach regular engine idle speed.
4. Once the engine is running at normal idle speed, press the brake pedal and keep it down until you hear the parking lights
output click 5 times.
5. Release the brake pedal —^the tach programming is now complete.
Resetting the Module
WARNING! By resetting the module, all programmed values are erased — i.e.: tach, transmitter as well as programming
options. The programming options are returned to their default values.
1. Flash the hood pin (see page 1).
2. Once having reached the programming mode, quickly press and release the brake pedal until the parking lights flash 8
times.
Supplementary Information

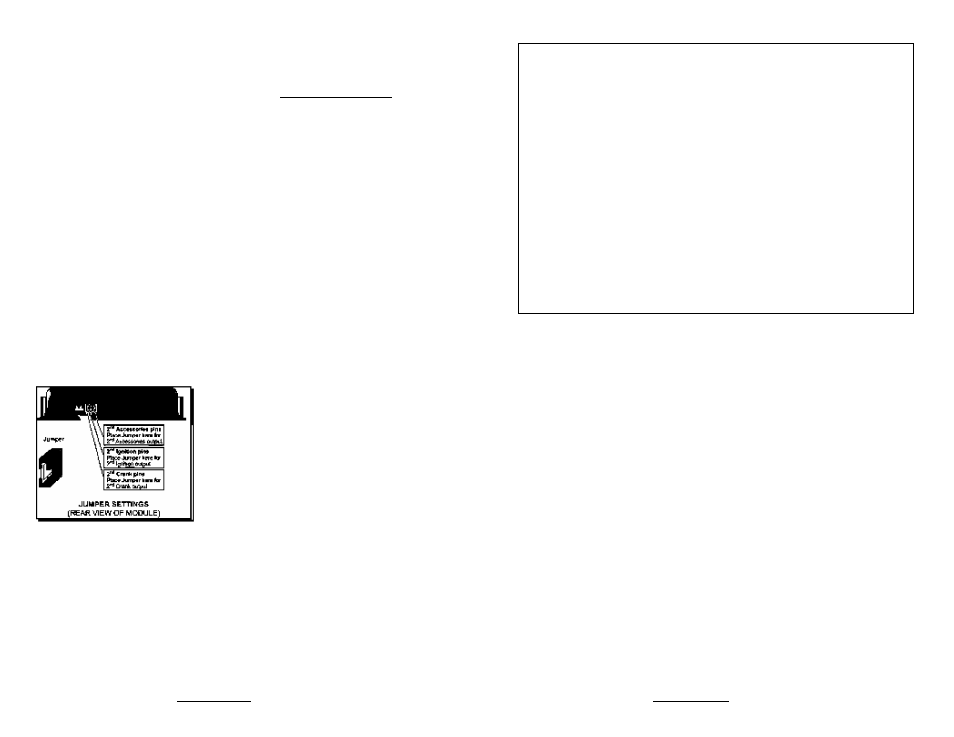

Fifth Relay Output (2nd IGN, ACC or CRANK)
Remote car starters of this series are equipped with an on-board high­
current programmable 5 th relay that can be used to power a second
ignition, accessory or crank wire. The unit uses 3 sets of pins; each set
corresponds to a specific function of the output. In order to activate one of
the three possible functions, you must place the jumper (supplied) on one
of the three sets of pins and connect the 14 AWG wire to the second IGN. /
ACC. / CRANK wire of the vehicle.
Caution!
Only one set of pins can be used at one time. Using more than one jumper may result in
serious damage to the vehicle. The relay output rating on this unit is 25 a at most. Defective
oem solenoid switches can sometimes draw up to 50 or 60 a, causing the 30 a fuse to
blow. Always verify your circuit with an appropriate measuring device.
http://www.autostart.ca Installation Guide
^QDE 2 * INDICATES DEFAULT SETTING
FUNCTION 1 - Engine Run Time
OPTION 1 Run Time = 3 minutes in gas mode / 8 minutes diesel mode
OPTION 2* Run Time = 15 minutes in gas mode / 20 minutes diesel mode
OPTION 3 Run Time = 25 minutes in gas mode / 30 minutes diesel mode
FUNCTION 2 - Idle Mode & Turbo Mode (auto) / Turbo Mode (manual)
OPTION 1 Idle mode & turbo mode disabled (AUTO) / turbo mode disabled ( manual )
OPTION 2* Idle mode & turbo mode enabled (AUTO) / turbo mode disabled ( manual )
OPTION 3 Idle mode & turbo mode enabled (AUTO) / turbo mode enabled ( manual )
FUNCTION 3 - Engine type and Cold Weather Mode
OPTION 1 Diesel mode with 20-minute run time in cold weather mode (30-sec. wait to start delay)
OPTION 2* Gas mode with 3-minute run time in cold weather mode
OPTION 3 Diesel mode with 8-minute run time in cold weather mode (18-sec. wait to start delay)
FUNCTION 4 - Lock / unlock or horn output (when Mode 2, Function 6, Option 1 is programmed)
OPTION 1 N/A
OPTION 2* Constant output when button I is pressed > 3 sec. (first press will give a (-) output
on LOCK wire; second press will give a (-) output on UNLOCK wire)
OPTION 3 Horn confirmation upon the 1 st press of the lock button.
FUNCTION 5 - Pager (Pager sold separately)
OPTION 1 Pager enabled
OPTION 2* Pager disabled
FUNCTION 6 - Remote Functions
OPTION 1 Button I = Lock/Unlock, Button II = Start/Stop, Button I & II = Trunk
OPTION 2* Button I = Start, Button II = Stop, Button I & II = Trunk
FUNCTION 7 - Ready Mode Option
OPTION 1 Enabled by handbrake
OPTION 2* Enabled by remote
Installation Guide http://www.autostart.ca/
