Installing
Fan
to
the
Electrical Box
1.

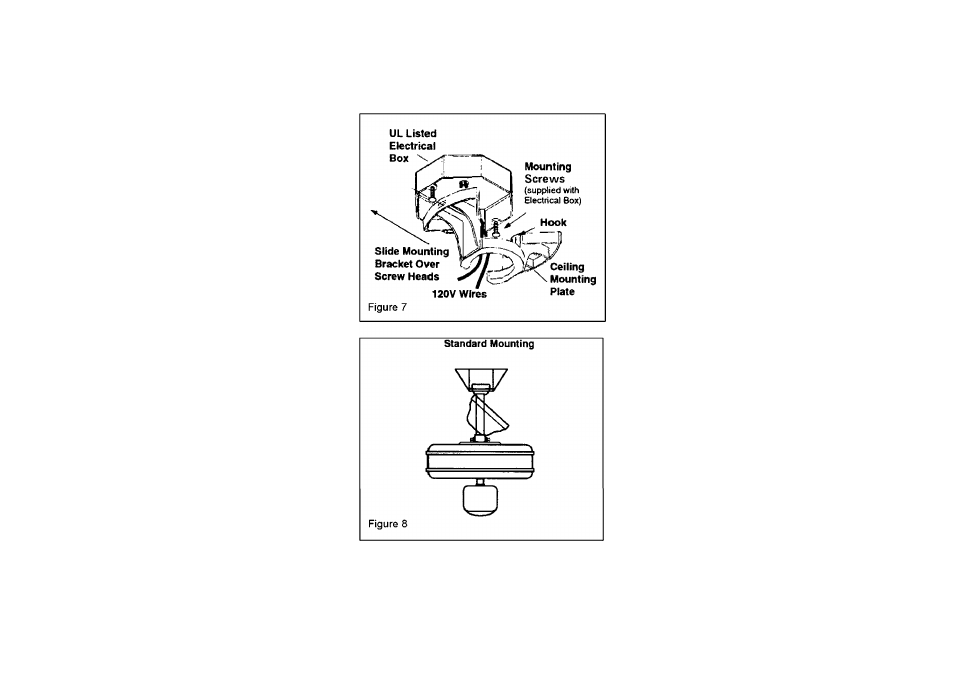

Pass tlie 120-volt supply wires
through llic center hole in the ceiling
mounting plate as shown in Figure 7.
2.
Install the ceiling mounting plate on
the electrical box by mounting screws
provided with the outlet box. Note that
the flat side of the mounting plate is
toward the electrical box (Figure 7).
3.
Securely tighten the two mounting
screws.
4.
Carefully lift the fan assembly up to
the ceiling mounting plate and hang the
fan on tlie hook provided by utilizing one
of the holes at the outer rim of the ceiling
canopy (Figure 7 ). Scat the hanger ball in
canopy. Make sure the tab in the ring at
the bottom of the canopy is properly
seated in the groove in the liangcr ball
(Figure 8).
WARNING
THE HOOK AS SHOWN IN FIGURE
7
IS
ONLY
TO
BALANCE
FAN
WHILE
ATTACHING WIRING. FAILURE TO HANG
AS SHOWN IN FIGURE 8 MAY RESULT IN
HOOK BREAKING CAUSING THE FAN TO
FALL. HOOK MUST PASS FROM INSIDE TO
OUTSIDE OF CANOPY.
WARNING
WHEN
USING
THE
STANDARD
BALL/HANGER PIPE MOUNTING, THE TAB
IN THE RING AT THE BOTTOM OF THE
MOUNTING PLATE MUST REST IN THE
GROOVE OF THE HANGER BALL.FAILURE
TO PROPERLY SEAT THE TAB IN THE
GROOVE
COULD
CAUSE
DAMAGE
TO
WIRING.
5
.
