Installation Procedure
1 Remove cover over outside air opening in unit rear
panel.
2. Remove unit top mounting screws that are directly
above unit outside air opening.
3
Place top flange of air intake box under unit top flange.
See Figure 2.
4
Position air intake box over outside air opening so
holes in top and side flanges of air intake box line up
with holes in each side and above outside air opening.
5.
Attach air intake box to unit with screws supplied in
package.
6.
Adjust air intake damper as required and tighten
damper adjustment screws See Figure 2.

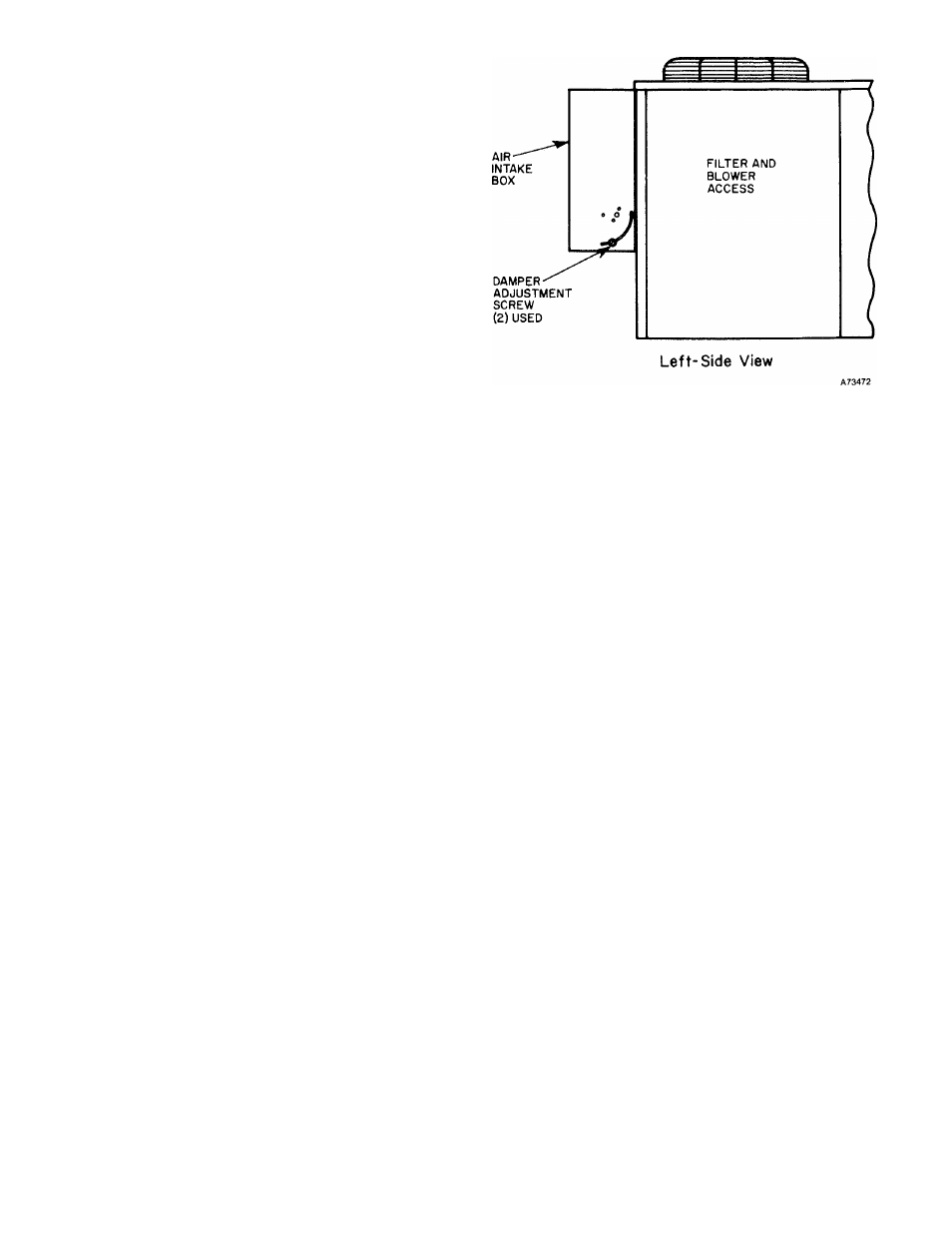

Figure 2—Manual Outside Air Damper
Installed on Unit
