DRILLING
To prevent the drill bit from slipping when starting a hole, make an indentation with a center-
punch and hammer at the point to be drilled. Place the point of the bit in the Indentation and
start drilling.
CARE m DRILLING
Twist drills are brittle and will
break if enough bending stress
it applied. To avoid stress on
the drill bit, try extending your
index finger along the side of
the drill-housing with your mid­
dle finger on the trigger. Re­
member— guide, the tool, don't
force it! Should the tool be­
come overheated, run it with
no load. Because of the drill's
construction, it will cool faster
running than by stopping it.
DRILLING IN METAL
Use a cutting lubricant when
drilling metals. The excep­
tions are iron and brass which
should
be drilled dry. The
cutting lubricants that work
best are sulphurized cutting
oil or lard oil; bacon grease
will
also serve the purpose.
Aluminum is best drilled with
turpentine or kerosene.
TO REMOVE CHUCK for using a threaded shank acces­
sory, first insert key into chuck key hole. Then strike the
key sharply with a piece of wood in the direction the
chuck rotates when the Drill is turned "ON." This will
loosen the chuck shank threads and the chuck may be
unscrewed from the Drill.
DRILLING IN WOOD
Holes in wood can be made
with the same twist drills used
for metal. These bits may over­
heat
unless pulled out fre­
quently to clear chips from the
flutes.
For larger holes, use
Power Drill Wood Bits with a
shank size that will fit your
drill's chuck. Work that is apt
to splinter should be backed up
with a block of wood. Let up on
the pressure Just before the tip
cuts through, this will give a
good clean hole. Always leave
the
drill running when pulling
it back out of a drilled hole,
this prevents Jamming.
LUBRICATION
Seif lubricating bearings are used in the tool and periodic relubrication Is not required.
However, it is recommended that, at least once a year, you take or send the too! to a
B&D Service Center for a thorough cleaning, inspection and lubrication of the gear case.
GUARANTEE
Black & Decker guarantees, for one year from date of purchase, to correct by
repair or parts replacement without charge any defect due to faulty material
or workmanship. Simply return the complete unit, transportation prepaid, to
any Black & Decker Service Center or Authorized Service Station. Naturally,
we assume no responsibility for damage caused by misuse, careless handling
or where repairs have been made or attempted by others. No other guarantee,
written or verbal, is authorized by us.
IMPORTANT!
To assure product SAFETY and RELIABILITY, repairs, maintenance and adjust­
ment should be performed by BLACK & DECKER Service Centers or other
qualified service organizations, always using BLACK & DECKER replacement
parts.
See'Tools-Electric'
—Yellow Pages—
for Service l< Sales
THE BLACK & DECKER MFC. CO., TOWSON, MD. 21204, U.S.A.
Form No. 97142 (B5-AL) Printed in U.S.A.

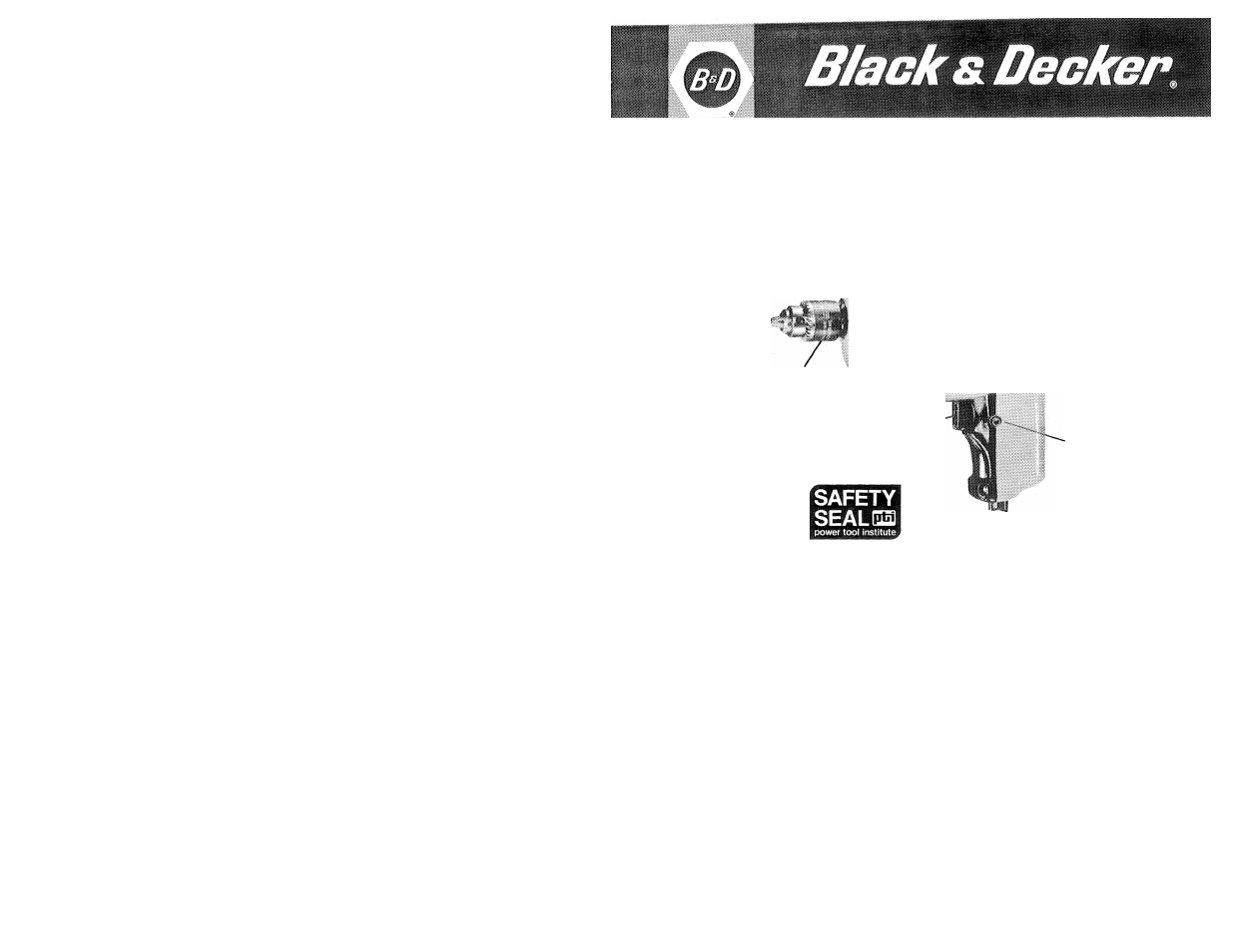

OWNER’S MANUAL
\
CEftiEi
OHUOIC
iWi
mmm
switch ^
SWITCH
LOCKINO
BOTTOI
'/<" DRILL #1000
Vt DRILL *1101
Capacity: 14 " holes in steel; In hard­
wood. 115 Volts A.C. 1.9 Amps. 1/7 H.P.
2250 R.P.M.
Capacity: %" holes in steel; in hard­
wood.
115 Volts A.C. 2.0 Amps. 1/7 H.P.
1000 R.P.M.
