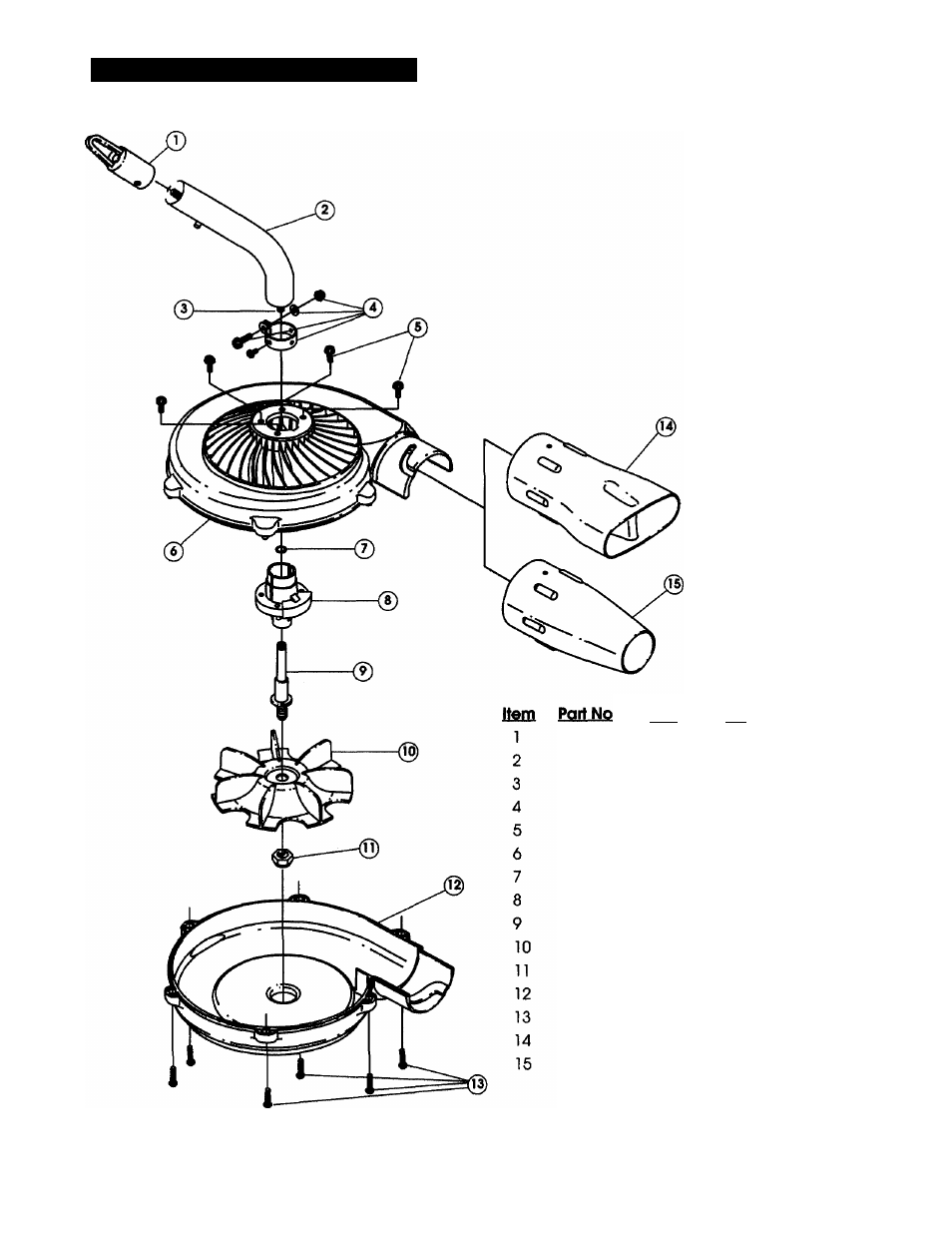

BLOWER PARTS - MODEL TB720r

(Serial no. 611000001 and greater)

612605

180340

683608

153597

153318

181630

181560

181636

181634

181635

181637

181631

181345

181632

181633

PWCriRfJon

Hanger

Drive Shaft Housing Assembly

Drive Shaft Assembly

Lower Clamp Assembly

Mounting Screw

Upper Housing

Palnut

Housing, Bushing Assembly

Shaft Impeller

Impeller

Nut and Washer

Housing, Lower

Mounting Screw

Flare Nozzle

Concentrator Nozzle

FOR QUESTIONS, CALL 1 -800-345-8746 IN U.S. OR 1 -800-265-6778 In CANADA
