OPERATING INSTRUCTIONS

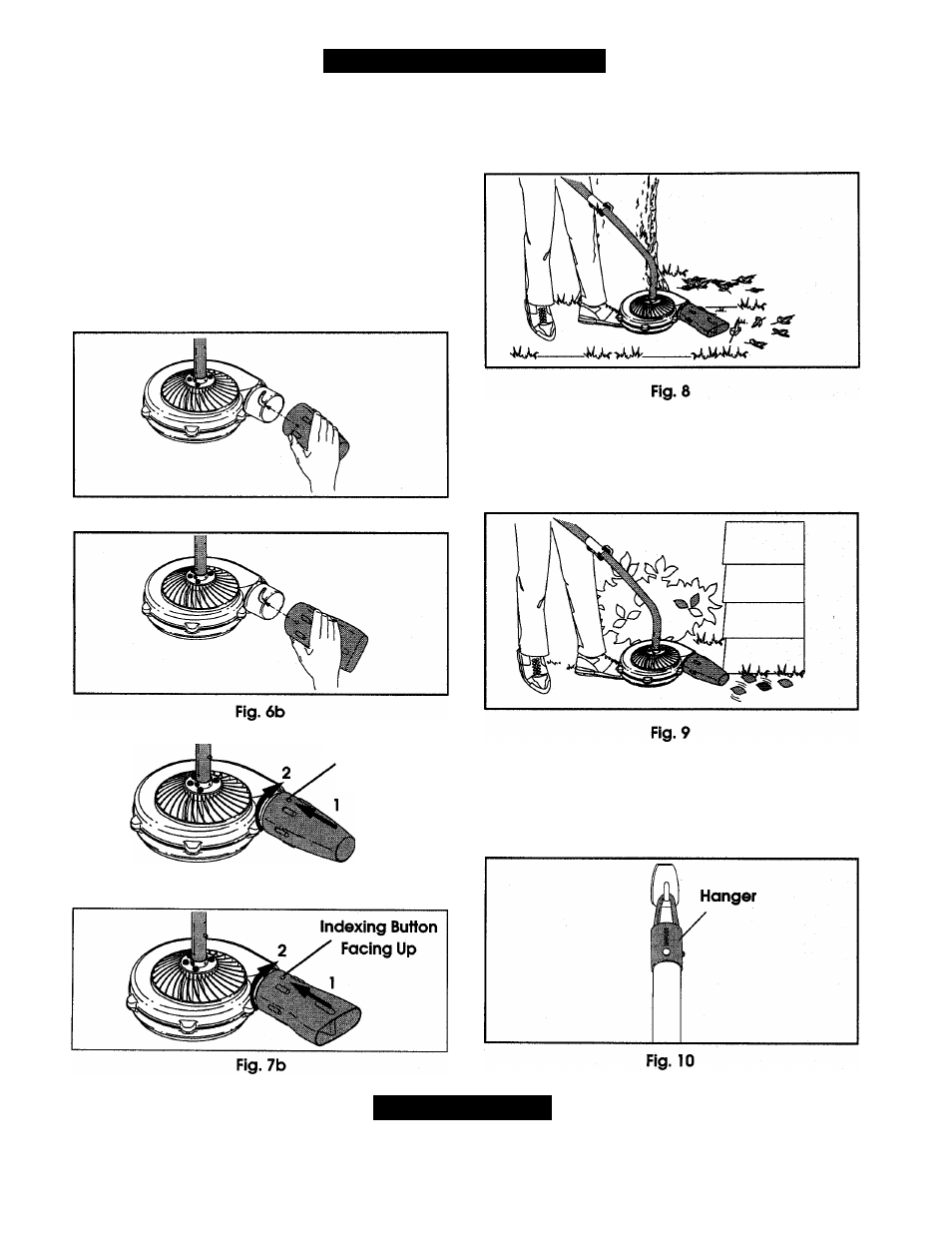

Installing Flare or Concentrator Nozzle onto Blower
Housing

1. Align the indexing button on the inside of the nozzle

with the detent on the housing (Fig, 6a for the
concentrator nozzle, and Fig. 6b for the fiare nozzle),

2. Push the nozzle onto the housing and turn the nozzle

clockwise until it locks (Fig. 7a for the concentrator
nozzle, and Fig, 7b for the flare nozzle).

NOTE:

Make sure the nozzles are installed

properly, with indexing button facing up,
before operating the unit.

Fig. 6a

Indexing Button

Facing Up

Fig. 7a

Using the Flare Nozzle

Use the flare nozzle for large, hard surface areas such

as driveways and sidewalks (Fig. 8).

Using the Concentrator Nozzie

Use the concentrator nozzle for hard to reach places

such as corners in a garage or to control dust in a dust
laden environment (Fig. 9).

Storing the Attachment

Your unit is equipped with an accessory hanger to
allow you to hang the blower attachment from
a wall (Fig, 10),

SPECIFICATIONS

Operating Weight of Attachment:.........................................................................................................3.25 lbs (1.46 kg)
