Installation

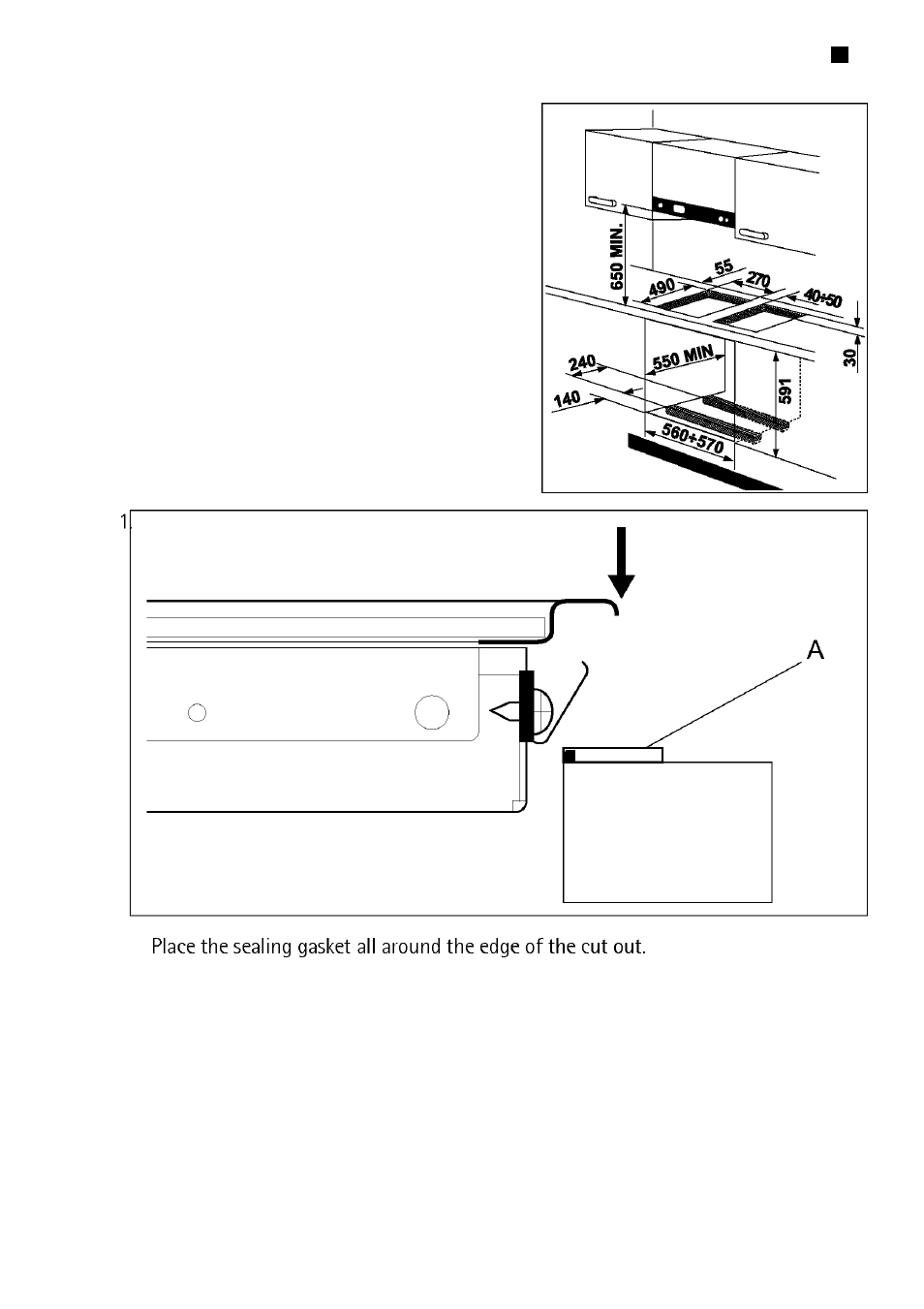

These hobs can be installed in a kitchen unit with
an opening for insertion whose dimensions are
shown in figure.
The edge of the cut out must have a minimum
distance from the rear wall of 55 mm. If there are
side walls, or sides of the furniture unit near the
hob, the cut out edges must have a minimum dis
tance of 100 mm. Hanging furniture units or
hoods must be placed at 650 mm minimum from
the hob.
Carry out the building in of the hob as follows:
9
