SECTION 3: XLR Input Amps
For
consistency,
we
suggest
you
use
channels
A
and
B
((eft
most
5-pin
XLR)
for
Front
Left
and
Right,
and
use
channels
C
and
D
(right
most
5-pin
XLR)
for Rear Left and Right.
The
GFA-4304,
GFA-4404
and
the
GFA-4702
all
use
balanced
inputs
terminated
with
professional
5-pin
XLR
connectors.
Each
5-pin
XLR
connects
two
channels
(Left
and
Right)
of
signal,
plus
a
shield
to
the
amplifier.
Hookup
is
straight-forward,
but
you
must
select
the
correct
GFY
adapter.
The
following
diagrams
(Fig.
5),
are
a
listing
of
all
the
adapters
available
through
ADCOM
for
integrating
any
system
with
ADCOM
car
audio
amplifiers
and
interfaces.
It
is
vital to note the APPLICATION description! Specific adapters MUST
be used for specific applications!

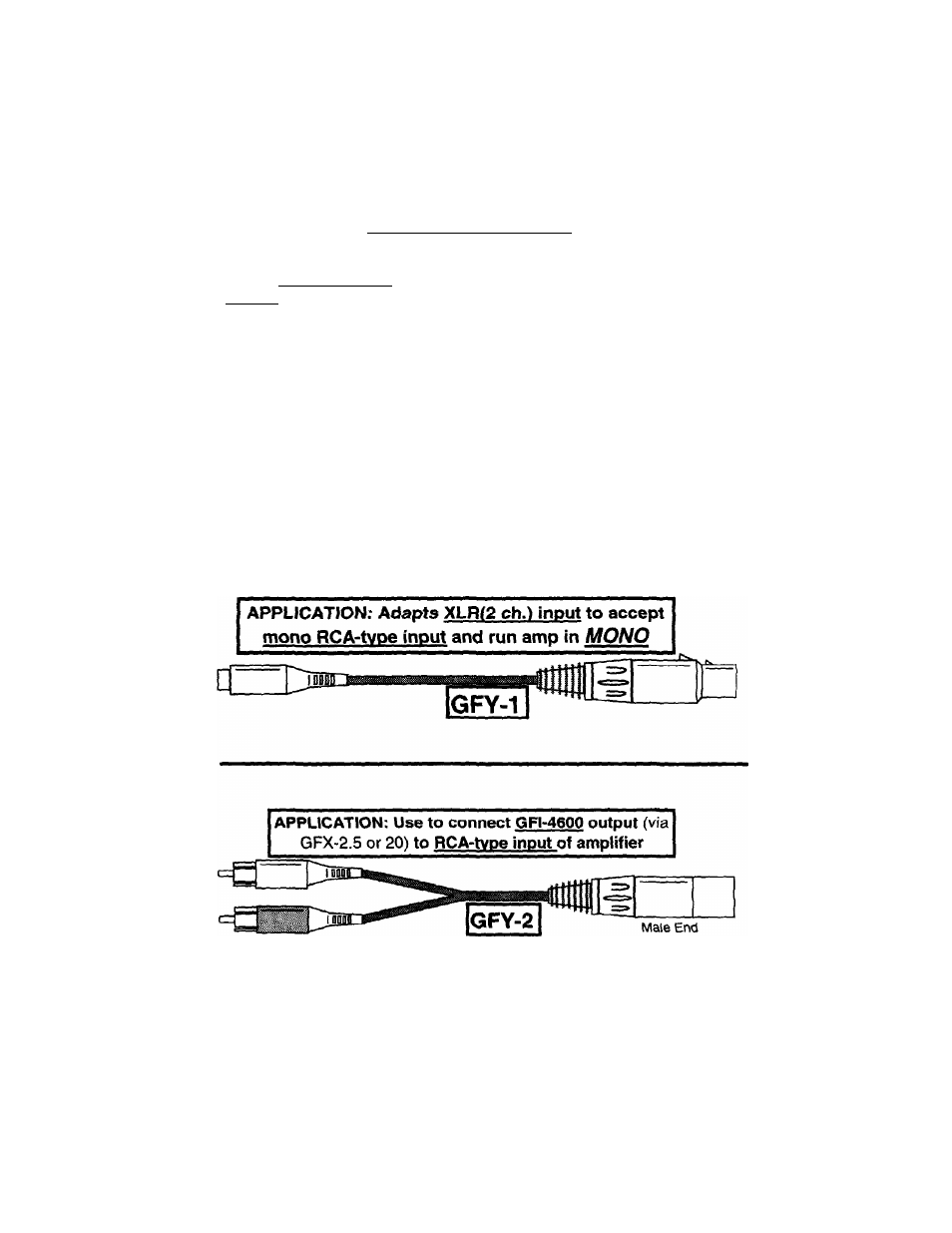

>GFY ADAPTER CABLESE
Fig. 5 (part 1)
