In the M ost™ configuration, the am plifier is capable of driving m ultiple
pairs
of
stereo
speakers
(properly
crossed-over),
and
m ultip le
m ono
subw oofers,
simultaneously!
To w ire the M oSt™ configuration, connect the LEFT RCA to the A +
input; connect the R IG H T RCA to the B - input
Remember to Insert the RCA
Shorting Plugs in the unused inputs.

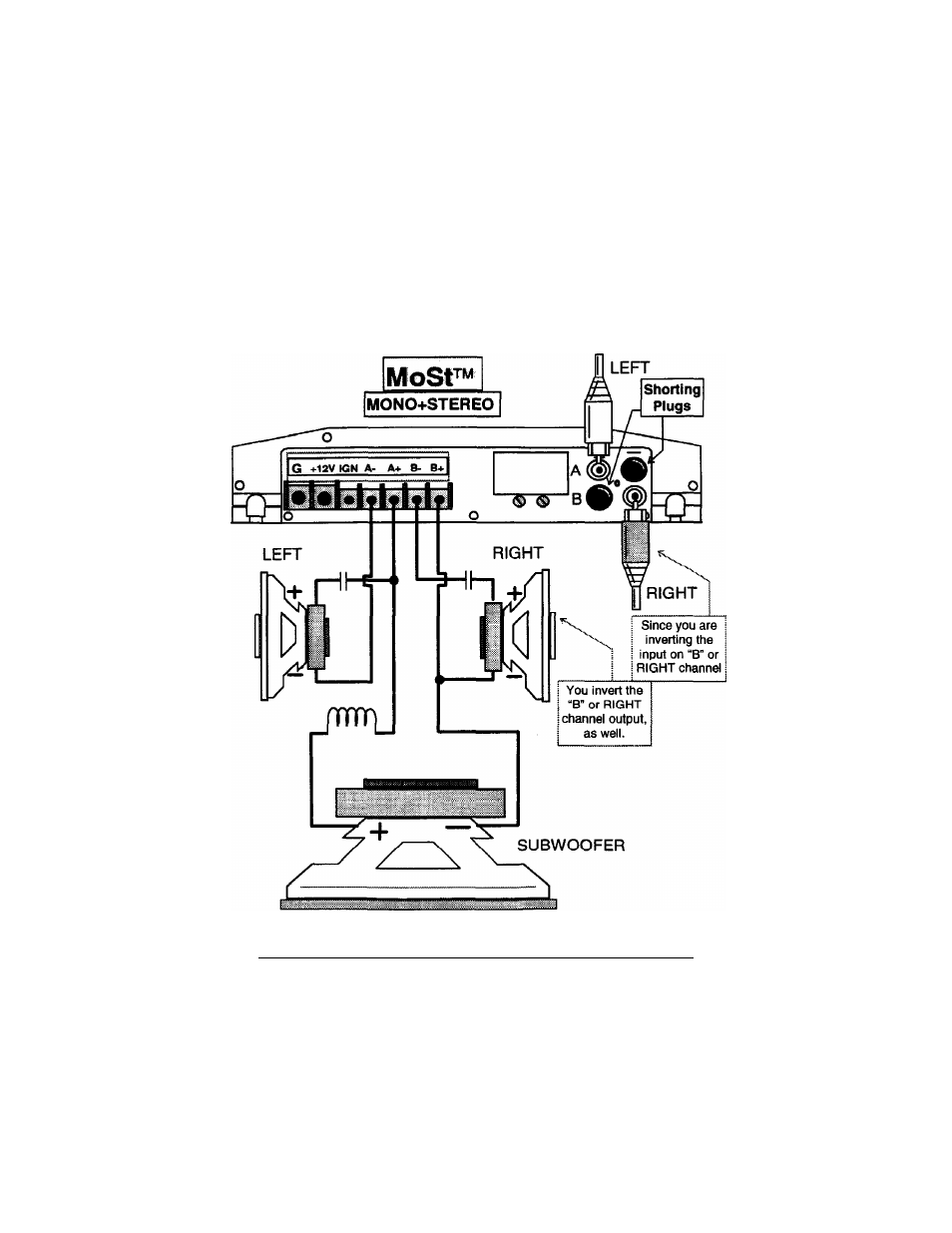

W ire speakers as show n in Fig. 4.
BE CERTAIN OF POWER/GROUND CONNECTIONS
Fig. 4
