AUTO-REVERSE CASSETTE
TAPE PLAYER
AND FM-STEREO/FM/AM TUNER
CPT-1D
Operating Instnidlons
Description
Ihe Bogen Model CPT-ID is a compact, integrated unit consist
ing of a stereo/mono cassette tape
player and an FM-stereo/FM/AM
tuner. It provides a reliable, economical source of background music
for a sound system. Program continuity is assured by the automatic
tape reverse feature, which changes the direction when the tape
reaches
the limit
of its
travel.
The CPT-ID operates on 120 volts AC. It incorporates a low-
Icvcl, low-iinpcdanoe output, which will drive the aui^iy input of
a public address amplifier. The unit can also drive 8-ohm loud
speakers directly with its internal stereo amplifier (five watts per
channel).
If desired, the CPT-ID may be mounted in a standard 19-inch,,
equipment radt by means of the optional RPK55C Rack Panel Kit.
/

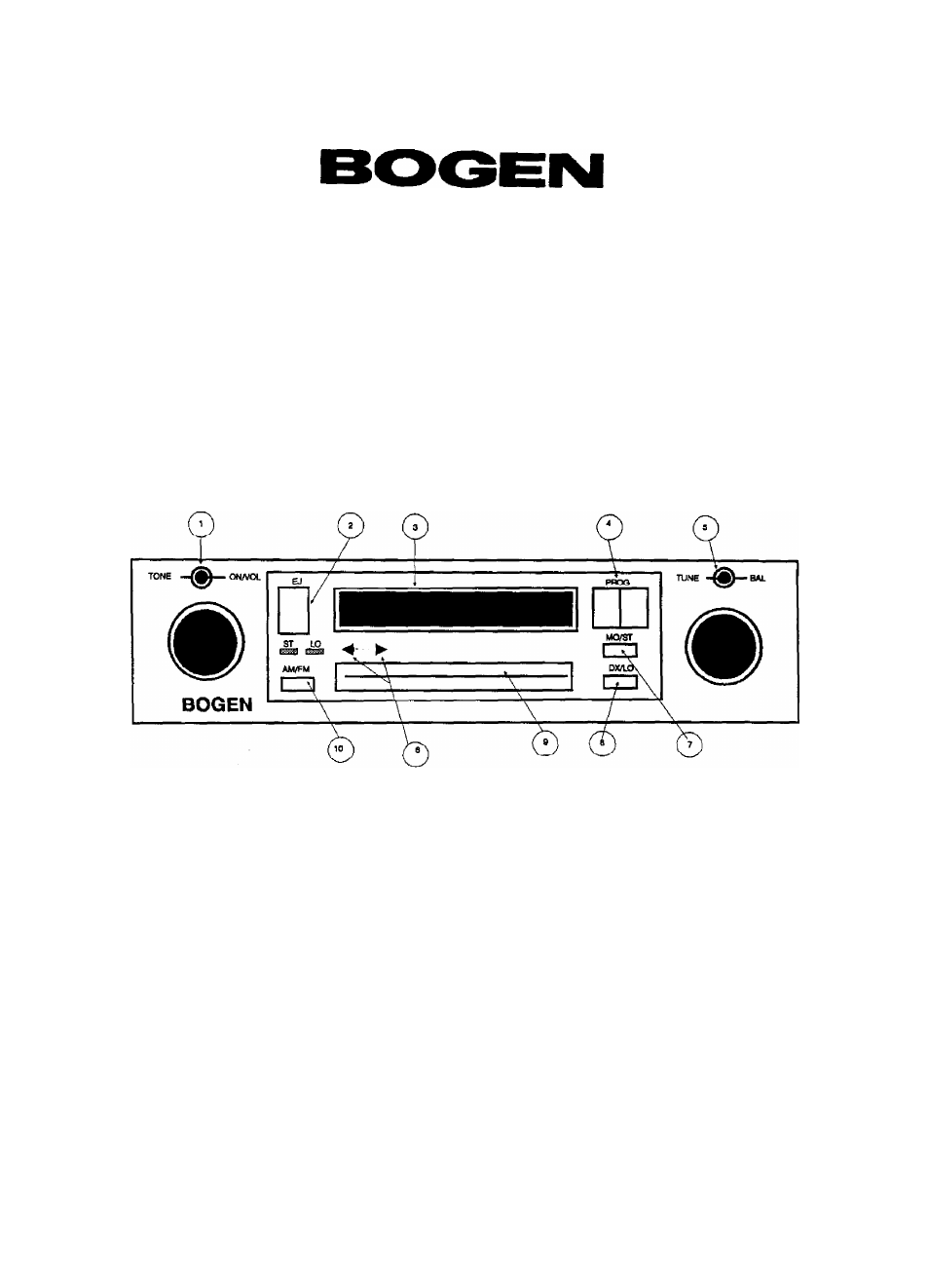

Controls and Functions
1. ON VOL & TONE — Power on/off switch and Time control.
Clockwise rotation of TONE increases treble response;
counterclockwise rotation increases
bass
response.
2. EJ — Eject cassette tape. Press IN to eject cassette.
3. AUTO REVERSE CASSETTE — Insert cassette until it en
gages; unit automatically goes from radio to tape playing mode.
PROG — Fast Forward (left button) & Rewind (right button)
Selectors. Pressing both buttons simultaneoudy changes direc
tion of tape travel.
TUNE & BAL — Rotate TUNE control in either direction to
select desired frequency. Rotate BAL control clockwise to in
crease sound to the right channel; counterclockwise to increase
sound to the left channel.
TAPE DIRECTION INDICATORS — Shows direction of the
tape.
4.
5
.
7. MO/ST — For normal FM-stereo reception set this switch to the
IN position. The ST indicator will illuminate for a stereo signal.
Set the switch in the OUT position for monaural operation, or
when receiving weak signals that cause the ST indicator light to
go on and off.
3. DX/LO — Distant or weak FM station signals are boosted when
this switch is in the DX position. LO indicator illuminates when
the switch is in the LOcat position.
9. FREQUENCY SCALE—Scale indicates radio fi^uency being
received.
10. AM/FM SELECTOR
To Play A Cassette Tape
The door ol the CFX -Ш is hinged and will open and close with
the insertion and removal of the cassette.
1. Rotate the ON/VOL switch clockwise and increase the volume
slightly.
2. Check the cassette to be certain that the tape is tightly wound on
the reels.
