Assembly and Connection

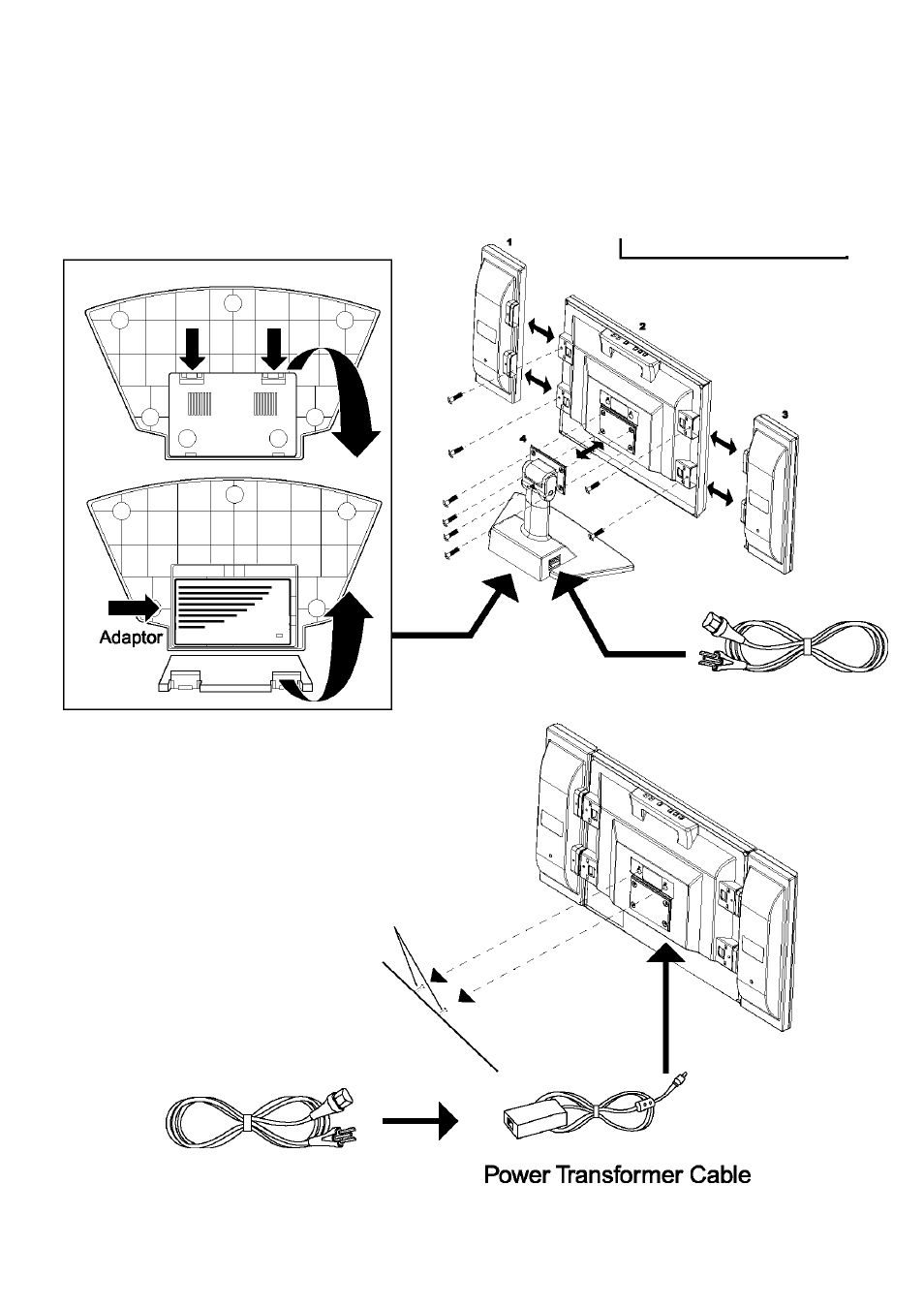

Assembly of the TFT-LCD
1 .S.Speaker 2.Monitor and 4.Stand
DISPLAY BRACKET MOUNTING
How to unfold the stand on the bottom
when you mounting to wall.
WALL MOUNTING
NOTE :
When mounting to wall please
secure to wall stud.
Caution :
You must complete assembly
prior to power appiication
Power Cable
Power Cable
