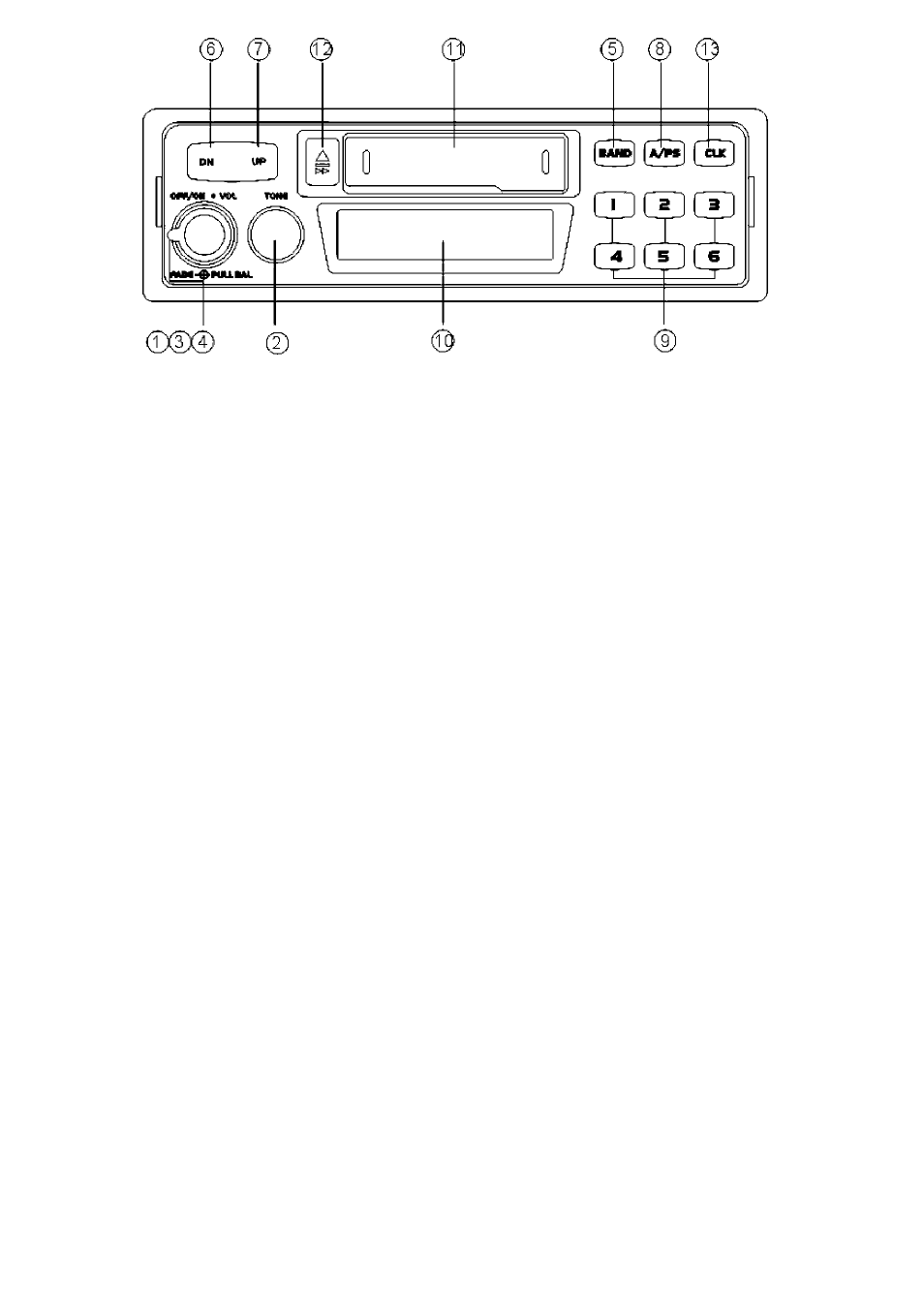

Rotate this knob to the right to turn the radio on. Continue rotation untii

the desired voiume ievei is obtained.

Rotate this knob either to the ieft or right to adjust the desired tone
reproduction. Rotating the knob ciockwise wiii increase trebie response and
counter-ciockwise wiii increase bass response

@ LEFT/RIGHT BALANCE CONTROL(PULL)

Puii this knob outward untii it iocks into outer position. Rotate it to the
ieft or right to obtain the desired baiance between ieft and right speakers.
Rush knob back in to return to voiume controi position.

Rotate this knob to the ieft or right to obtain the desired baiance between
front and rear speakers in 4 speaker instaiiations. When used in conjunction

with the Left/Right Baiance Controi®, you have fuii 4-way stereo baiance

capabiiity.

Each time this button is pressed, the radio band is changed.The indications
"AM1"or"AM2", "FM1" or "FM2"or‘'FM3" wiii appear in the dispiaypanei
according to you seiection.

To manuaiiy seiect a radio station press the Up Tuning(UP) button ©to advance
the unit one digit higher or Down Tuning (DN) button

to tune downward.

Pressing either button for iongerthan 0.5 second wiii cause the radio to tune
rapidiy in the seiected direction.

PRE-SET SCAN TUNING (PS)

During radio operation, press this button momentariiy to scan the tweive stations
pre-set into the memories ofthe AM bands or the eighteen pre-set memories of

the FM bands. The unit wiii stop at each pre-set station for 5 seconds before

continuing to the next pre-set station(the channei indicator

number on the

display will flash). Press the button again momentarily to stop the Pre-set
Scan operation and remain on the selected frequency. Pressing the button

for longer than 1 second will activate the Auto-Store Tuning .which will

automatically scan the band and enter the six strongest stations into the six
pre-set memory positions for each band. If you have already set the pre-set
memories to your favorite stations, activating the Auto-Store feature will
erase those stations and enter the new strong stations. This feature is
