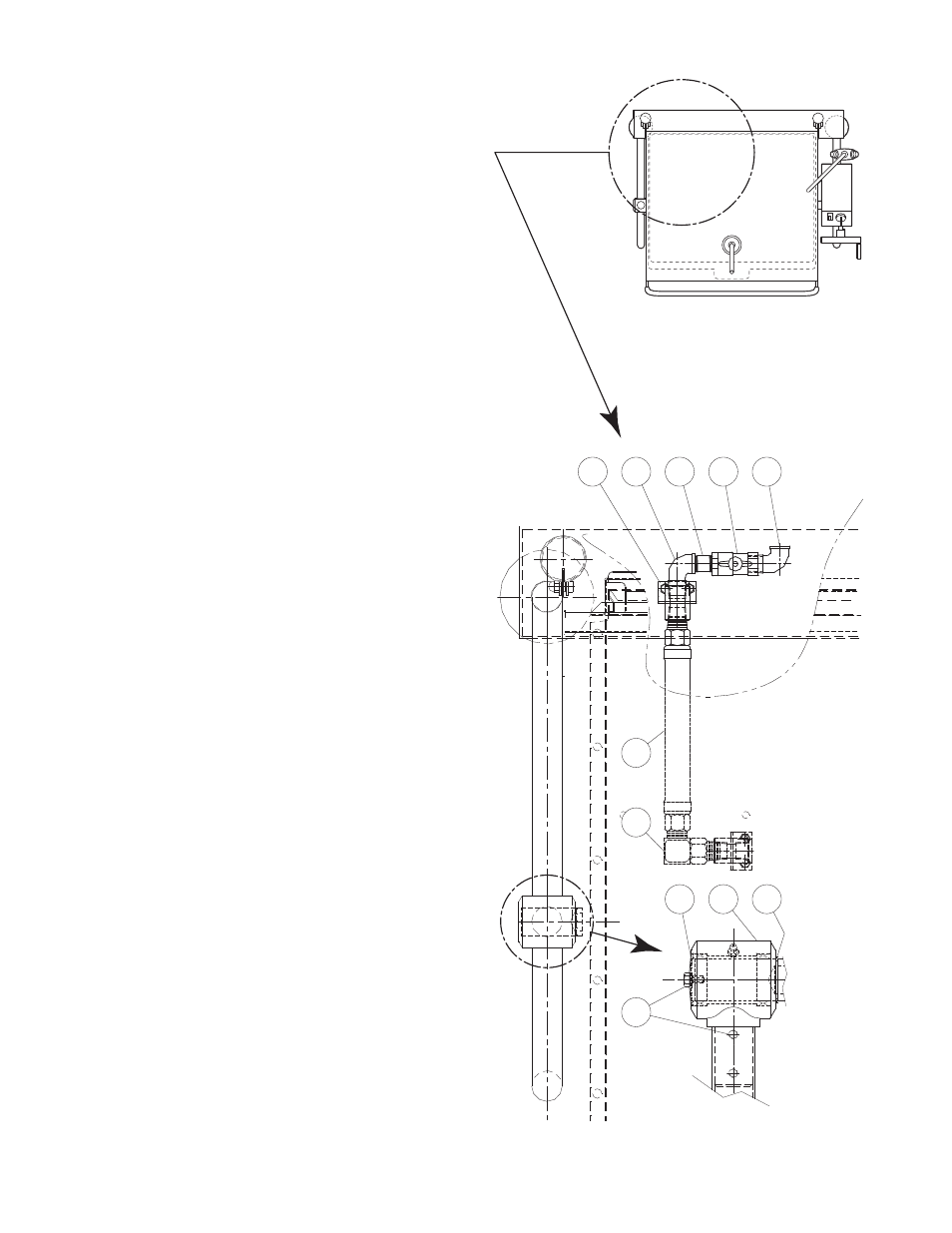

GAS TRAIN,
TRUNNION ASSEMBLIES
ITEM PART DESCRIPTION QTY.
NO. NO.
GAS TRAIN
1. FI00134 ELBOW . . . . . . . . . . . . . . . . . . . . . . .2
2. F01518-1 SHUT OFF VALVE . . . . . . . . . . . . . . .1
3. FI00607 NIPPLE . . . . . . . . . . . . . . . . . . . . . . . .1
4. SK2472702 SWIVEL CONNECTOR . . . . . . . . . . .1
5. SK2472701 GAS CONNECTOR HOSE . . . . . . . . .1
6. SK2459299 BRACKET ASSEMBLY, GAS LINE . . .1
TRUNNION
6. FA95027 BOLT MODIFIED . . . . . . . . . . . . . . . 3
7. KE00351 TRUNNION HOUSING ASSEMBLY . .1
8. KE50666 SPHERICAL WASHER . . . . . . . . . . . .1
9. FA95007-1 RETAINING RING . . . . . . . . . . . . . . .1
4
5
1 6 3 2 1
8 7 9
6
