Service Refill Capacities
Liters
Fuel Tank 705
Cooling System 61
Engine Oil 42
Swing Drive (each) 10
Final Drive (each) 15
Hydraulic system
(including tank)
570
Hydraulic tank 243
Drive
Maximum Travel Speed 4.4 km/h
Maximum Drawbar Pull 338 kN

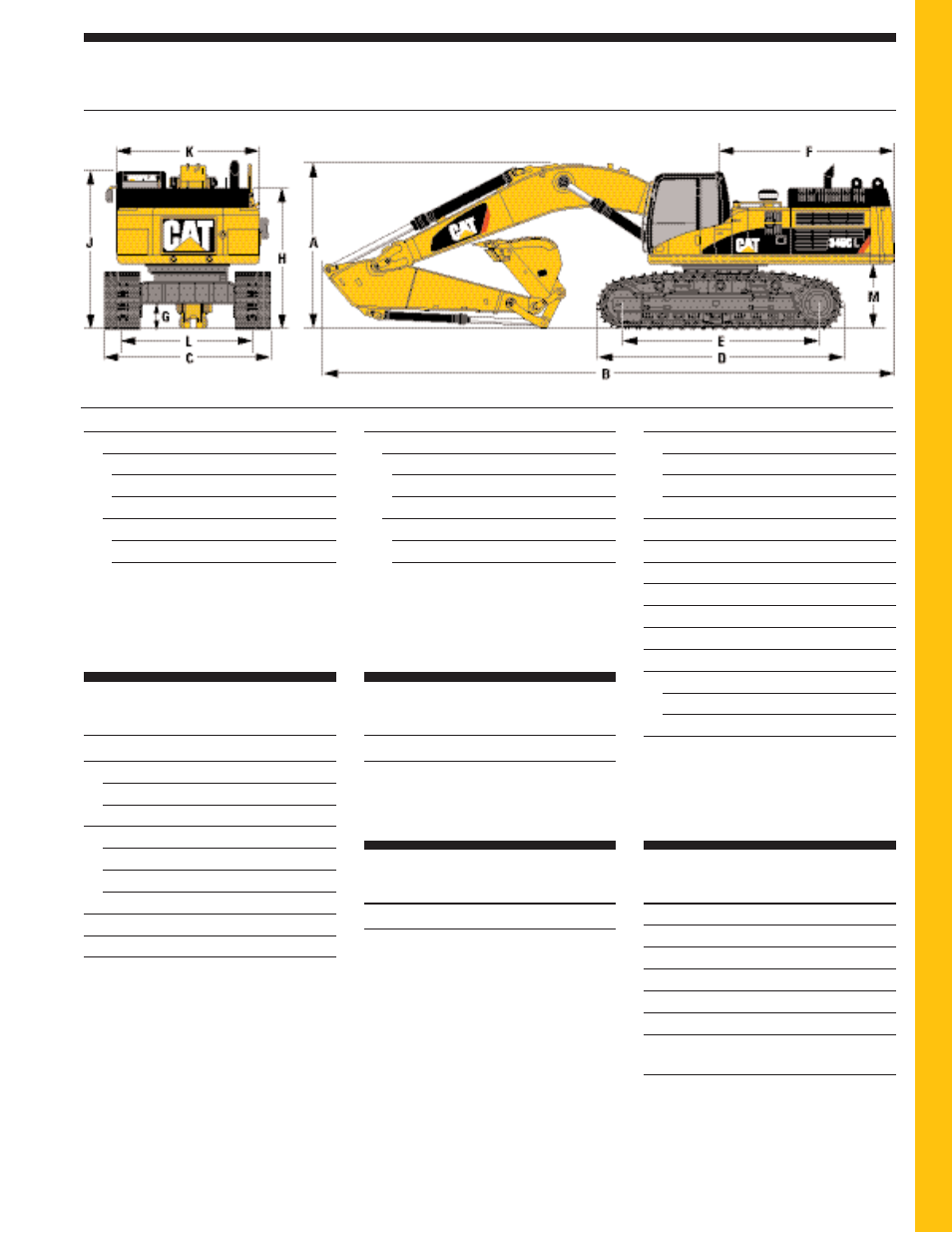

Dimensions
All dimensions are approximate.
mm
A Shipping height (with bucket)
Mass Excavation boom 6550 mm
2500 mm stick 3989
3000 mm stick 3987
Reach boom 6900 mm
2900 mm stick 3743
3350 mm stick 3581
mm
B Shipping length
Mass Excavation boom 6550 mm
2500 mm stick 11 591
3000 mm stick 11 507
Reach boom 6900 mm
2900 mm stick 11 837
3350 mm stick 11 788
mm
C Track width retracted
600 mm shoes
2995
750 mm shoes 3140
900 mm shoes 3290
D Track length 5333
E Length to centers of rollers 4338
F Tail swing radius 3765
G Ground clearance 707
H Body height* 2962
J Cab height* 3358
K Body width 2962
L Track gauge
extended
2890
retracted 2390
M Counterweight clearance 1339
* With shoe lug height 38 mm
Track
Track width with long undercarriage:
Double grouser, heavy duty
optional 600 mm
optional 750 mm
Triple grouser, heavy duty
standard 600 mm
optional 750 mm
optional 900 mm
Number of shoes each side 52
Number of rollers each side 9
Number of carrier rollers each side 3
345C L Hydraulic Excavator specifications
Swing Mechanism
Swing Speed 8.6 rpm
Swing Torque 149 kNm
