Page 13

Assembly Guide

Step 15 Install Upper Lat Tower Assembly

Parts:

• Upper Lat Tower Assembly
• Main Assembly

Hardware

(1:1):

• 6 Button Head Screws (3/8" X 3/4")
• 6 Washers (3/8")

Tool:

7/32" Hex Wrench

15-1

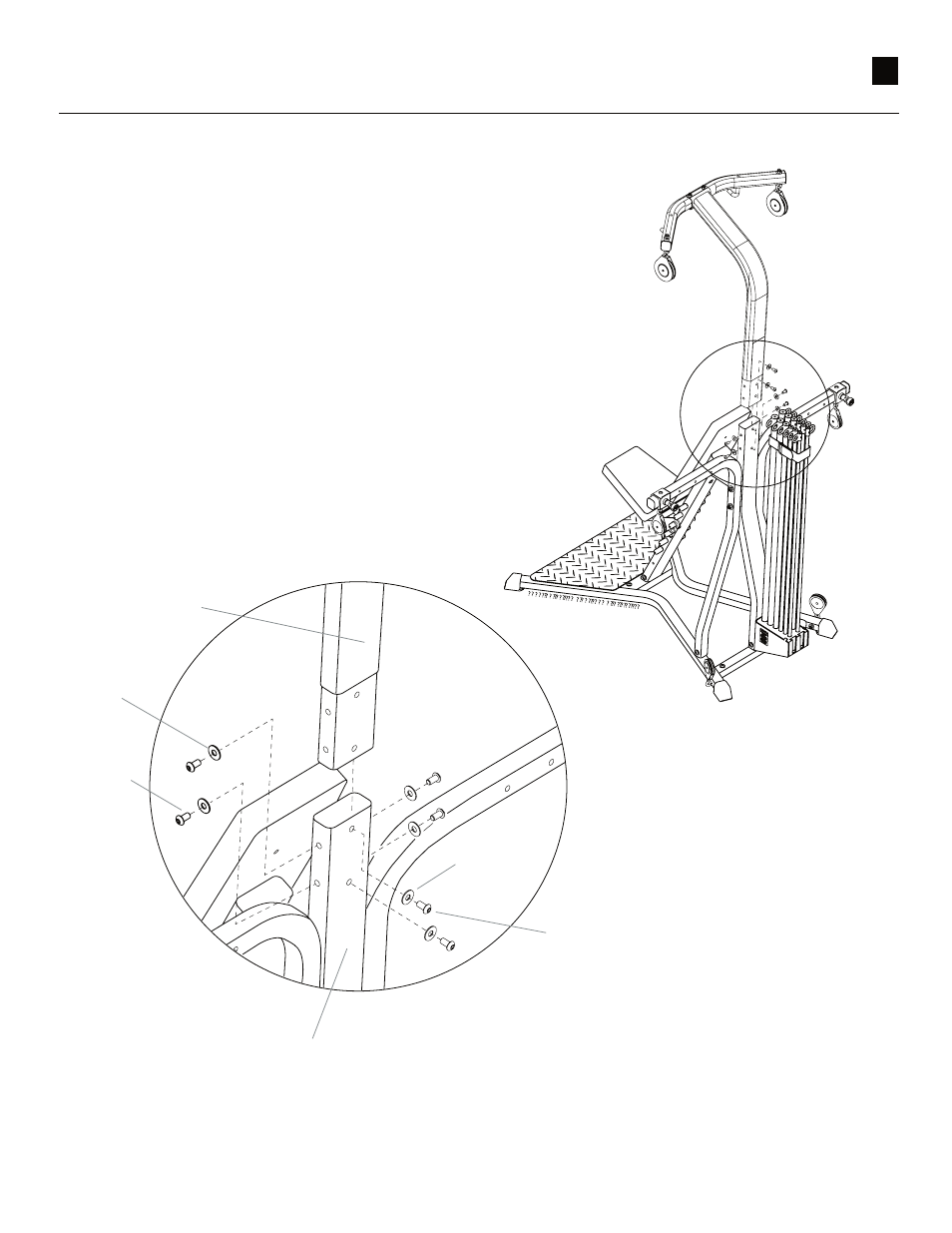

Position the Upper Lat Tower Assembly

over the Lower Lat Tower Assembly.

15-2

Slide the Upper Lat Tower onto the

Lower Lat Tower and secure with screws
and washers as shown.

Rods not shown

for clarity

Upper Lat Tower

Button Head

Screws

Flat

Washers

Flat

Washers

Button Head

Screws

Lower Lat Tower

TIGHTEN HARDWARE
Carefully go over the entire Bowflex

Xtreme

™

home gym and tighten all

hardware before using.
