8
Step 10 Optional Leg Extension Assembly
Parts:
• Leg Extension Backbone
• 2 Chrome Tubes
• 4 Foam Rollers
• 4 End Caps
Tool: Rubber Mallet
10-1 Insert Chrome Tubes through
the upper hole and one of
the lower holes in the Leg
Extension. (Select hole for
your comfort level.)
10-2 Slide Foam Rollers onto the
Chrome Tubes and secure
with end caps. A rubber
mallet may be needed to
secure the end caps.
NOTE: The Leg Extension may be adjusted
during workout to best suit your height
and personal preferences.
Assembly Guide
Step 9 Seat Assembly
Parts:
• Seat Backbone
• Seat Bottom
Hardware:
• 4 Button Head Screws (5/16" X 3/4")
• 4 Washers (5/16")
Tool: 3/16" Hex Wrench
9-1 Install the Seat Backbone to the
underside of the Seat Pad using
screws and washers as shown.
If you did not purchase the Optional Leg Extension,
skip steps 10 and 11 and proceed to Step 12.
Button Head
Screws
Flat Washers
Seat Backbone
Seat Bottom
Leg Extension
Backbone
End Caps
Foam Rollers
Chrome Tubes
9
Assembly Guide

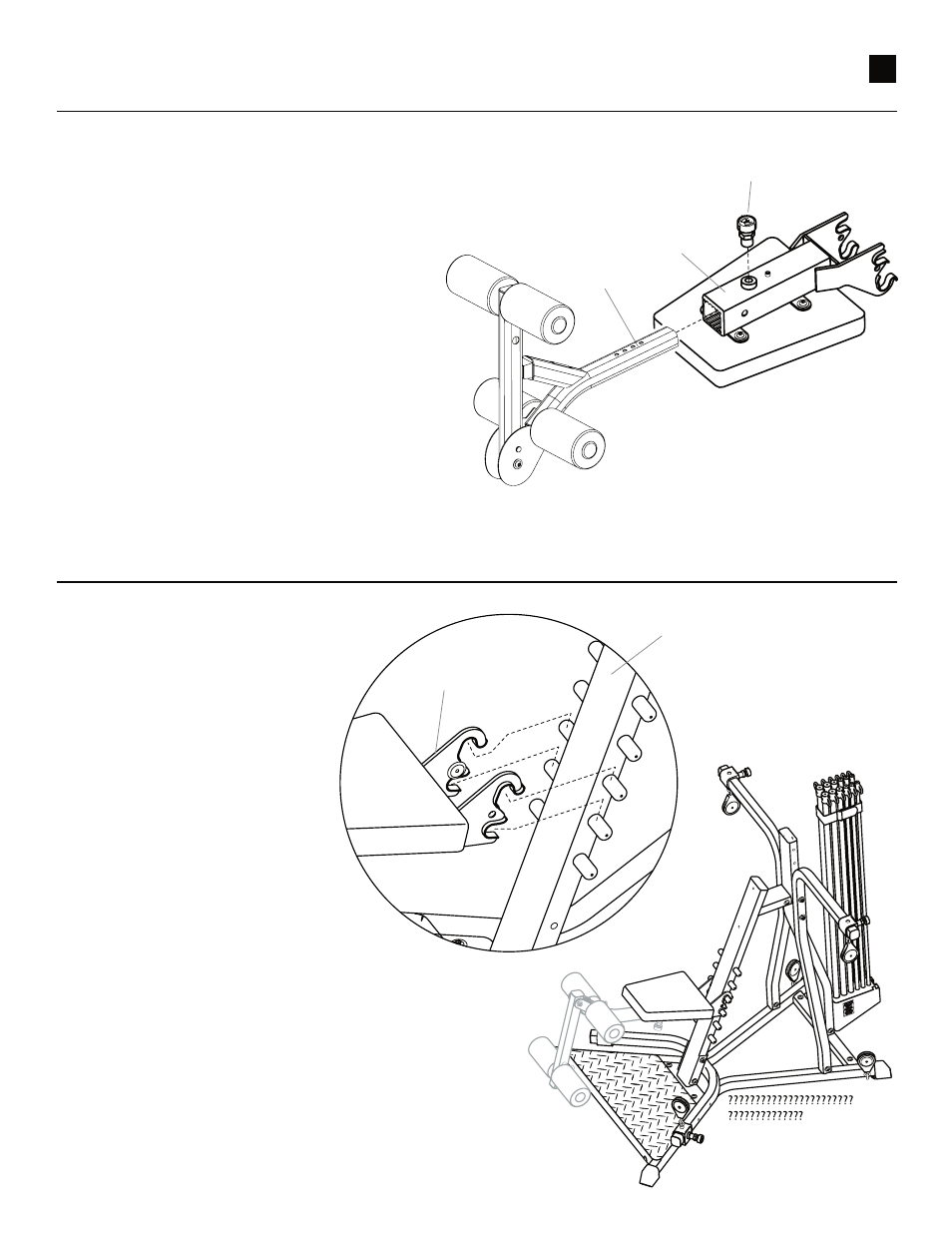

Step 11 Install Optional
Leg Extension Assembly
Parts:
• Leg Extension Assembly
• Lock Knob
11-1 Insert Leg Extension
Backbone into open end of
Seat Backbone as shown.
11-2 Align one hole of the Leg
Extension with the hole in
the Seat Backbone to fit your
height and secure with the
Lock Knob as shown.
Lock Knob
Step 12 Install Seat Assembly
Parts:
• Seat Assembly
• Main Assembly
12-1 Align the top two hooks on
the Seat Backbone with one
of the lower pairs of pins on
the Seat Support Rail.
12-2 Tip seat front up and slide
hooks onto pins. Rotate seat
down and back to use.
Note: Use lower pins until the seat
back is installed. Reverse
procedure to remove seat.
Seat
Backbone
Leg
Extension
Backbone
Seat
Backbone
Seat Support
Rail
