Cooper Lighting Galleria Square GMA25SWWAR User Manual
Gs/gm/gl galleria square

80
S T R E E T W O R K S O u t d o o r L i g h t i n g S o l u t i o n s
C o o p e r L i g h t i n g
NOTES: 1 Arm not included. See Accessories. 2 Available on GL housing only. 3 Medium-based lamp for GS housing. Mogul-base on GM and GL housings. 4 Pulse Start Metal Halide vertical mount only. 5 1000W GM with flat-
glass requires BT-37 lamp and is not available in RW distribution. 6 Refer to technical section for lamp/ballast/voltage compatibility. 7 Requires reduced envelope lamps, not available in GL housing. 8 Not available in
1000W. 9 Not available in GS housing. 10 Not available in 1000 Watt HPS. 11 Arm length varies based on housing size. Arm supplied with luminaire: 9" for GS (EPA 0.5), 11 1/2" for GM (EPA 0.62) and 14" for GL (EPA 1.0).
12 Required for mounting fixtures at 90° increments. 13 Compatible with sag lens vertical optics only.
H O U S I N G
Formed aluminum housing with
stamped reveal has interior-welded
seams for structural integrity.
Optional NEMA twistlock
photocontrol. ANSI wattage/source
label.
B A L L A S T
Ballast is hard-mounted to housing
interior for cooler operation.
Optional removable ballast tray.
R E F L E C T O R
Spun and stamped aluminum
reflector in vertical lamp units, or
hydroformed anodized aluminum
reflector in horizontal lamp units.
D O O R
Formed aluminum door has
heavy-duty hinges, captive
retaining screws and is finished
in polyester powder coat. (Spider
mount unit has steel door.)
L E N S
Convex tempered glass lens.
Tempered flat glass available.
F I N I S H
Standard polyester powder coat
finish in bronze. For more color
options see optional colors or
consult your Streetworks
represenatitive for more
information.
NOTE: In all flat glass configurations only.
O R D E R I N G I N F O R M AT I O N
S A M P L E N U M B E R
: G M A 2 5 S W W A R
OPTIONS +
ACCESSORIES
(See Below)
A R C H I T E C T U R A L A R E A L U M I N A I R E
OPTIONS (add as suffix)
1=Single Fuse, Internally Mounted (120 or 277V)
2=Double Fuse, Internally Mounted (208, 240, or 480V)
4=Photocontrol Receptacle
WH=White
BK=Black
AP=Grey
B=House Side Shield
H=Plug-in Starter Receptacle
8
T=Removable Ballast Tray
F=Flat Glass
AIR=Arm Included for Round Pole
11
AIS=Arm Included for Square Pole
11
CSR=Color Reveal Stripe—Red
CSB=Color Reveal Stripe—Blue
CSY=Color Reveal Stripe—Yellow
CSG=Color Reveal Stripe—Green
CSD=Color Reveal Stripe—Gold
CSS=Color Reveal Stripe—Silver
CSW=Color Reveal Stripe—White
ACCESSORIES (order separately)
MA1004=14" Arm for Square Pole
(GM & GL only)
12
MA1005=6" Arm for Square Pole
(GM & GL only)
MA1006=Direct Mount Kit for Square Pole
MA1007=14" Arm for Round Pole
(GM & GL only)
12
MA1008=6" Arm for Round Pole
(GM & GL only)
MA1009=Direct Mount Kit for Round Pole
MA1021=6" Arm for Square Pole (GS Only)
MA1022=6" Arm for Round Pole (GS Only)
MA1023=9" Arm for Square Pole (GS Only)
12
MA1024=9" Arm for Round Pole (GS Only)
12
MA1029=Wall Bracket
MA1060=House Side Shield for GS
(Field Installed)
13
MA1061=House Side Shield for GM
(Field Installed)
13
MA1062=House Side Shield for GL
(Field Installed)
13
OA1066=Pipe Adapter
OA1209=TufGuard Vandal Shield for GS
OA1210=TufGuard Vandal Shield for GM
GSM-EXTHS-XX=Medium External House
Side Shield (Specify Color)
GSL-EXTHS-XX=Large External House Side
Shield (Specify Color)
PRODUCT
FAMILY
GS=Galleria
Square
Small
GM=Galleria
Square
Medium
GL=Galleria
Square
Large
MOUNTING
METHOD
A=Arm Mount
1
B=Spider Mount
(2 3/8" - 3" O.D. Tenon)
C=Spider Mount
(3 1/2" O.D. Tenon)
2
LAMP
WATTAGE
3
10=100W
15=150W
17=175W
25=250W
40=400W
75=750W
4
91=1000W
5
LAMP TYPE
6
S=High
Pressure
Sodium
M=Metal
Halide
R=SMH
VOLTAGE
6
2=120V
0=208V
4=240V
7=277V
8=480V
9=347V
W=Multi-Tap
wired 120V
N=Multi-Tap
wired 277V
V=Multi-Tap
wired 240V
DISTRIBUTION
1D=Type I MCO (Horizontal)
2D=Type II MCO (Horizontal)
2S=Type II Segmented (Horizontal)
7, 8
3D=Type III MCO (Horizontal)
3S=Type III Segmented (Horizontal)
7, 8
3V=Type III (Vertical)
9
4S=Type IV Segmented (Horizontal)
7, 8
5S=Type V Segmented (Horizontal)
7, 8
FT=Forward Throw (Horizontal)
AR=Area Round (Vertical)
AS=Area Square (Vertical)
RW=Rectangular Wide (Vertical)
SL=Spill Light Eliminator (Horizontal)
10
BALLAST TYPE
6
P=Hi. Reac./HPF
H=Reac./HPF
N=Hi. Reac./NPF
R=Reac./NPF
W=CWA
K=10KV CWA
C=CWI
M=Mag. Reg.
GS/GM/GL
GALLERIA SQUARE
100-1000W
MH/HPS/SMH
A R E A
S H I P P I N G D A T A
Approximate Net Weight:
GS
36 lbs. (16 kgs.)
GM
79 lbs. (36 kgs.)
GL
88 lbs. (40 kgs.)
O P T I O N S + A C C E S S O R I E S
[ M u s t b e l i s t e d i n t h e o r d e r s h o w n a n d s e p a r a t e d b y a d a s h ]

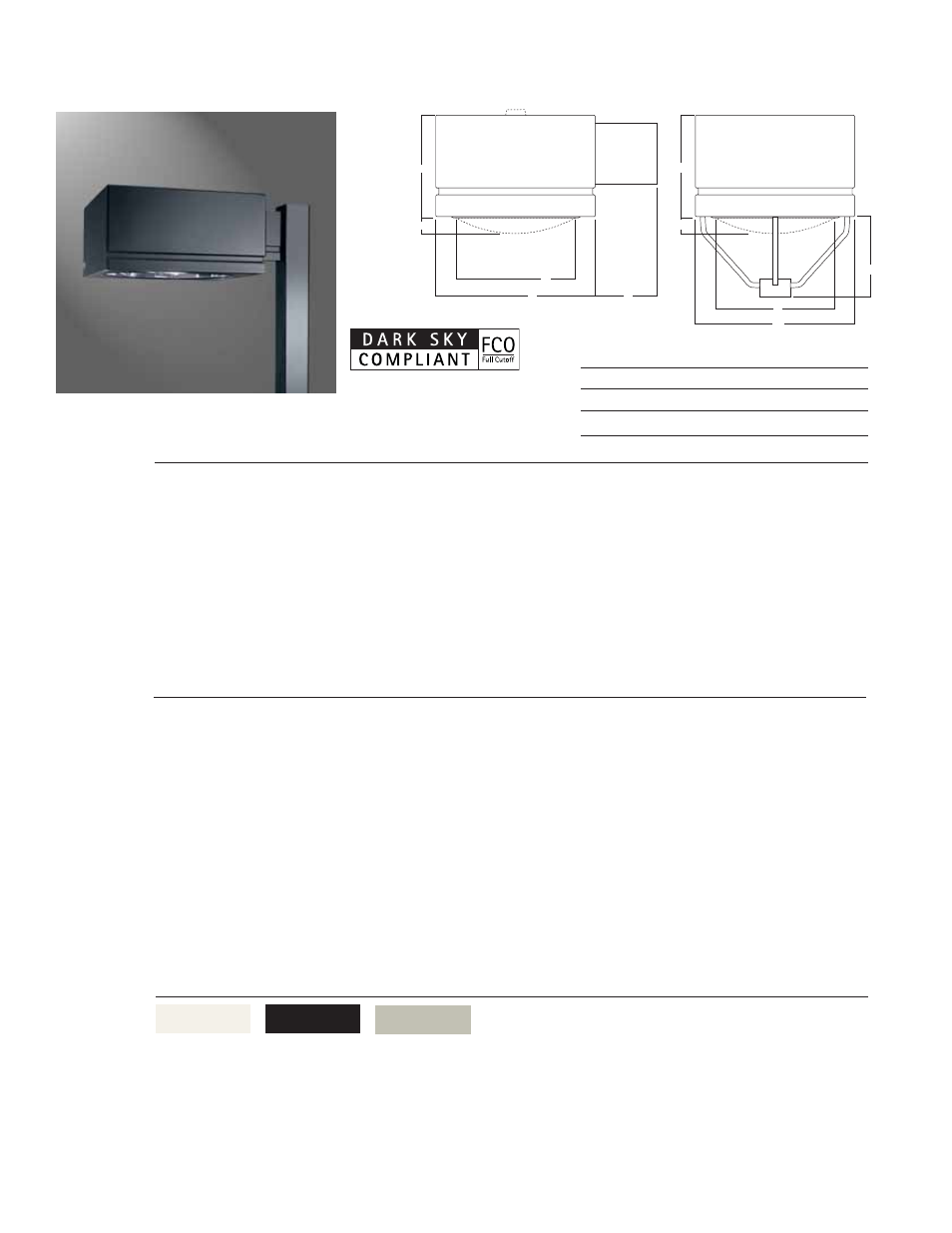

STREETWORKS
™
C
D
F
B
A
E
C
D
B
A
Fixture
A
B
C
D
E
F
GS (in.)
9 1/4
1 1/2
12 7/8
15 5/8
6 or 9
3 1/4
S
(mm)
235
38
327
397
152 or 229
337
GM (in.)
11
3 1/2
19 1/4
21 3/4
6 or 14
15 or 16
(mm)
279
89
480
552
152 or 356
381 or 406
GL (in.)
14 1/2
4 1/4
25 7/8
27
6 or 14
18 3/4 or 19 3/4
(mm)
368
108
657
686
152 or 356
476 or 502
NOTE: Top cap used on GM with 1000W flat glass vertically lamped optics only.
O P T I O N A L C O L O R S
[ S t a n d a r d c o l o r i s b r o n z e , o t h e r f i n i s h c o l o r s a v a i l a b l e . C o n s u l t y o u r C o o p e r L i g h t i n g r e p r e s e n t a t i v e ]
WH
White
BK
Black
AP
Grey
W A T T A G E S
GS
100-175
GM
175-1000
GL
400-1000
