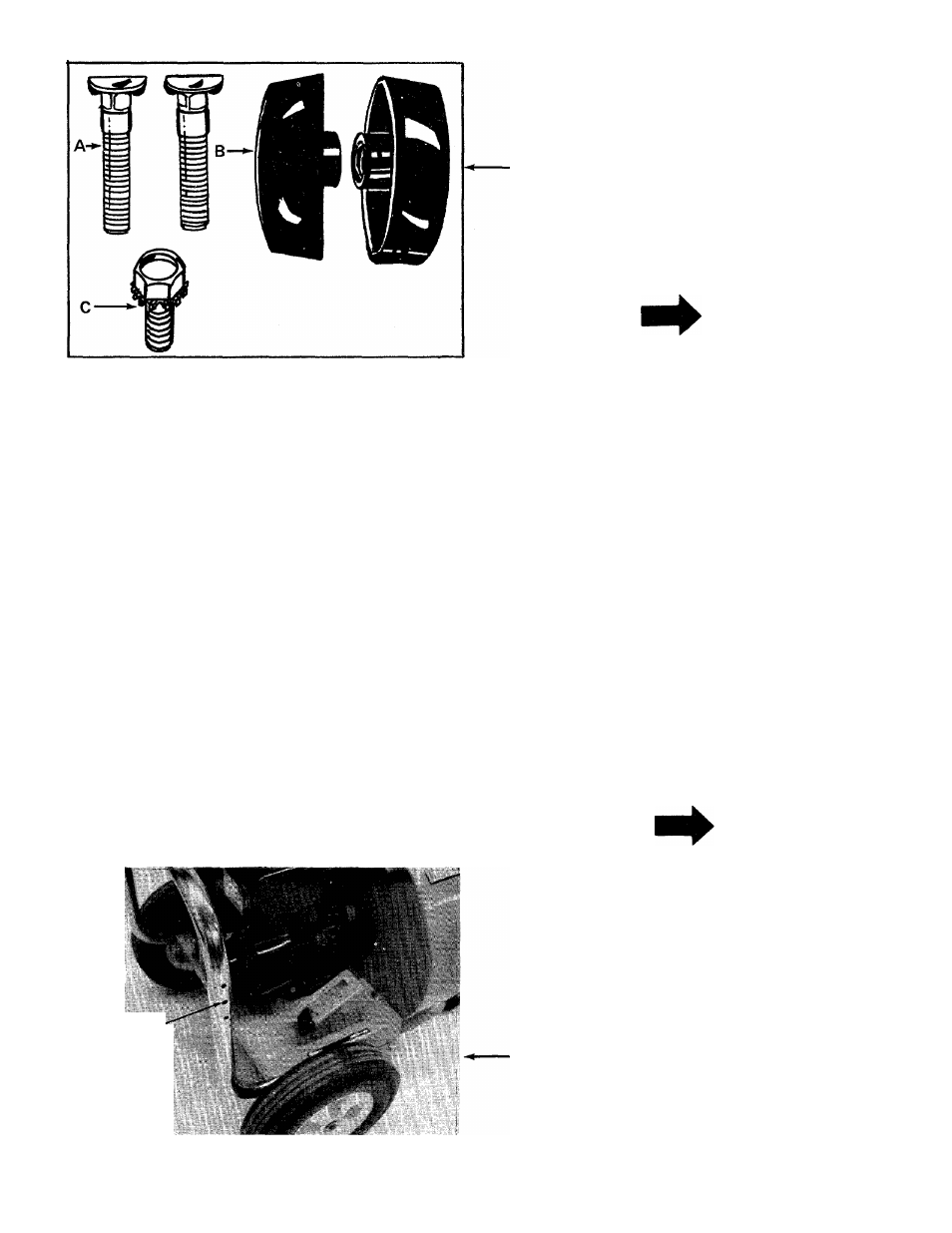

FIGURE 1.
ASSEMBLY INSTRUCTIONS
CONTENTS
OF
HARDWARE
PACK:
(See Figure 1.)
A (2) Carriage Bolts
B (2) Hand Knobs
C (1) Hex Sems Bolt
NOTE
Vacuum hose attachment 243-204A
comes with model 694. It is optional
equipment on all other models.
%
FIGURE 2.
\
PARTS IN CARTON (See Figure 2):
D (1) Upper Handle
E (1) Directional Discharge
NOTE
USE THIS
HOLEOIMLY
The right and left side of your leaf
blower is determined from operator's
position.
1. Remove the leaf blower, hardware pack and all
literature from the carton before discarding
carton.
2.
Figure 3 shows lower handle. Upper handle
mounts in center hole only.
FIGURE 3.
