Your new tractor has been assembled at the factory with e:
( ■ (I it- «■r'i-jLr . ji*- I !, i I t
the correct tools as necessary to insure proper tightness.
rr.fii WFQyiBEO rOB ASSF- 1 IBIV
\ ^ • !.f f /.H .7ii* aSib.iic it i ^
iirh'LCi jre liS'srl
i., werche: i 1 1 j/4 «o“ketwifr
(i) y/'f-‘ «viench f'hillips Scr6¥/dn7<-f
pi ''2 .'T-n..nfi fi.a pr&i Cum gauge
Utilitv kfiifa
V^hefi liyid o- |pf hand is mentioned in this manual, it
nican^ when y«u are in the operating position (seated
L-1 ird t| f
1 wheel).
TO REMO¥E TRACTOR FROM CARTON
UNPACK CARTON
• Remove al! accessible loose parts and parts cations
from carton (See page 5).
• Cut, from top to bottom, along lines on all four corners
of carton, and lay panels flat.
• Check for any additional loose parts or cartons and
remove.
BEFORE ROLLING TRACTOR OFF SKID

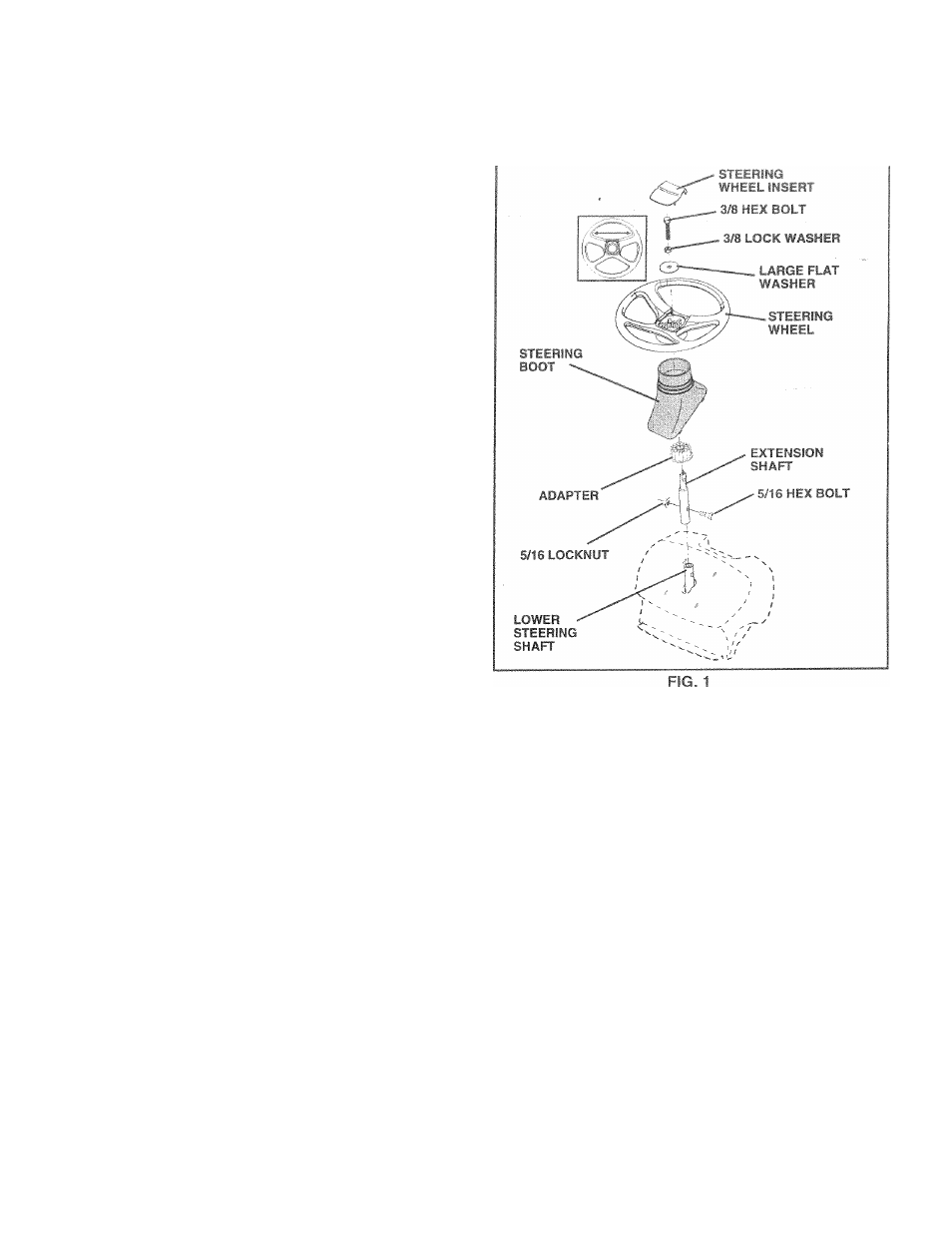

ATTACH STEERING WHEEL (See Fig. 1)
ASSEMBLE EXTENSION SHAFT AND BOOT
• Slide extension shaft onto lower steering shaft. Align
mounting holes in extension and lower shafts and
install 5/16 hex bolt and locknut. Tighten securely.
IMPORTANT: TIGHTEN BOLT AND NUT SECURELY TO
18-22 FT. LBS TORQUE.
• Place tabs of steering boot over tab slots in dash and
push down to secure.
INSTALL STEERING WHEEL
• Position front wheels of the tractor so they are pointing
straight forward.
• Slide steering wheel adapter onto steering shaft exten­
sion.
• Position steering wheel so cross bars are horizontal
(left to right) and slide inside boot and onto adapter.
• Assemble large flat washer, 3/8 lock washer, 3/8 hex
bolt and tighten securely.
• Snap steering wheel insert into center of steering
wheel.
• Remove protective materials from tractor hood and
grill.
IMPORTANT; CHECK FOR AND REMOVE ANY STAPLES
IN SKID THAT MAY PUNCTURE TIRES WHERE TRACTOR
IS TO ROLL OFF SKID.
sption of those parts left unassembled for shipping purp*
!■ I . / I . . I*. bit I* I l< t Jl T l| i . I . . Use
TO ROLL TRACTOR OFF SKID (See Operation
section for location and function of controls)
• Press lift lever plunger and raise attachment lift lever to
its highest position.
• Release parking brake by depressing clutch/brake
pedal.
• Place freewheel control in freewheeling position to
disengage transmission (See ‘TO TRANSPORT” in
the Operation section of this manual).
• Roll tractor backwards off skid.
• Remove banding holding discharge guard up against
tractor.
