Models 685 and 689

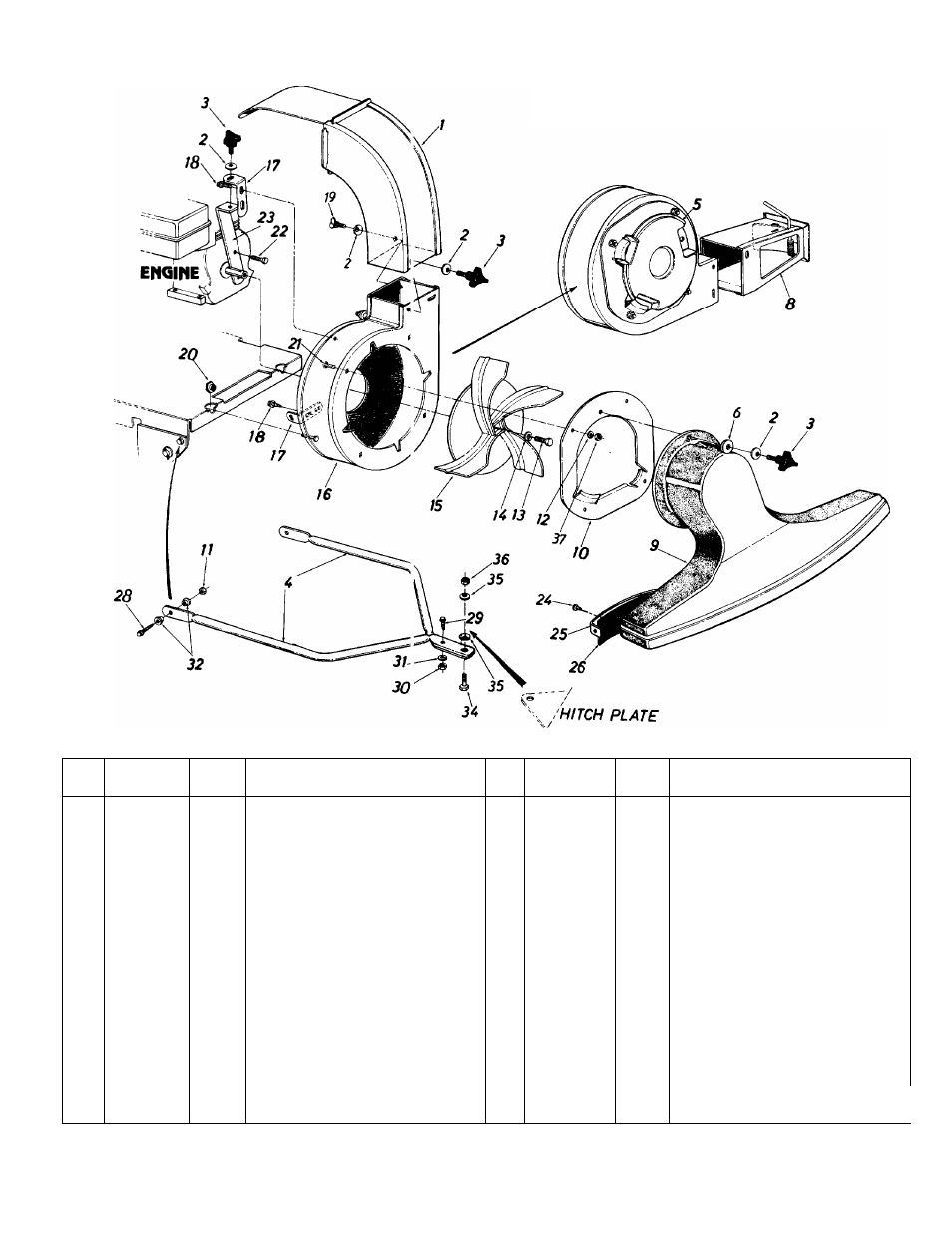

PARTS LIST FOR MODELS 685 AND 689 POWER VACUUMS
REF.
NO.
PART
NO.
CODE
DESCRIPTION
REF.
NO.
PART
NO.
CODE
DESCRIPTION
1
14532
Air Duct Assembly
19
710-1258
Thumb Screw 5/16-18
2
736-0242
Belleville Wash. .34" 1. D. x
20
711 -0758
Hex Shoulder Nut .50 I.D.
.87" O.D.
21
710-0260
Carriage Bolt 5/16-18 x .62"*
3
720-0170
Hand Knob
22
710-0627
Hex Locking Bolt 5/16-24 x
4
749-0501
Tow Bar Halftt
.75" Lg.
5
731-0608
Impeller Guard
23
14539
Housing—Engine Brace Ass’y.
6
736-0231
FI-Wash. .344" I.D. x 1 125" O.D.
24
728-0173
Pop Rivet (5 Required)
8
14479
Directional Discharge /vss’y-
25
14569
Wiper Retaining Strip
9
14562B
Nozzle Ass’y- (Black)
26
735-0214
Nozzle Wiper
731-1123
Nozzle Ass’y. (Beige)
28
710-0602
Hex Bolt 5/16-18x1.00" Lg.*tt
10
14563A
Nozzle Plate Ass’y.
29
710-0255
Truss Mach. Scr. 1/4-20 x .75"tt
11
712-0267
Hex Nut 5/16-18 Thd.‘
30
712-0287
Hex Nut 1/4-20 Thd.*tt
12
736-0119
L-Wash. 5/16" I.D.*
31
736-0329
L-Wash. 1/4" I.D.*tt
13
710-0191
Hex Bolt 3/8-24 x 1.25’ Lg.*
32
748-0234
Shoulder Spacertt
14
736-0217
L-Wash. 3/8" I.D. H.D.
34
738-0143
Shid. Bolt .496 Dla.ft
15
14557A
Air Vane Plate Ass’y. v’/Pulley
35
736-0219
Belleville Wash. .39" I.D. x
16
14496A
Blower Housing Comp ete
1.12" O.D.tt
17
14541
Right Angle Bracket
36
712-0181
Hex Jam L-Nut 3/8-26 Thd.ft
18
710-0600
Hex Self-Tap Scr. 5/16 -18 x
37
712-3010
Hex Nut 5/16-18 Thd. (Gr. 5)
.50" Lg.
tfOptional Parts
