Generac Portable Products 2,400 PSI High Pressure Washer
IMPORTANT: Read entire owner’s manuai before you
attempt to assemble or operate your new pressure washer.
REMOVE PRESSURE
WASHER FROM
CARTON
• Remove the parts box included with pressure washer.
• Slice two corners at the end of carton from top to
bottom so the panel can be folded down flat, then
remove ail packing material.
• Roll pressure washer out of carton.
Carton Contents
Items in the carton include:
• Main Unit
• Parts Box (which includes the following);
• Goggles
• Handle Assembly
• Handle Fastening Hardware (which includes):
• Carriage Bolts (2)
• Plastic Knobs (2)
• “J” Hook
• Chemical Hose Clip
Nozzle Cleaning Kit
High Pressure Hose
Quick Connect
Owner’s Manual
Engine Manual
Owner’s Registration Card
Spray Gun
Nozzle Extension
Oil Bottle
O-Ring Maintenance Kit
If any of the above parts are missing or damaged, call the
pressure washer helpline at |-800“270~I408.
PREPARING PRESSURE
WASHER FOR USE
If you have any problems with the assembly of your
pressure washer or if parts are missing or damaged, call the
pressure washer helpline at 1-800-270-1408.
To prepare your pressure washer for operation, you
will need to perform these tasks:
• Fill out and send in the registration card.
• Attach the handle.
• Add oil to the engine crankcase.
• Add fuel to the fuel tank.
• Connect the high pressure hose to the spray gun and the
pump.
• Connect the water supply to the pump.
Attach Handle______________________
NOTE: All assembly operations given in this section will
be described from the perspective of assembling the
pressure washer from the rear.
• Place the handle onto the handle supports already
connected to the main unit. Make sure the holes in the
handle align with the holes on the handle supports

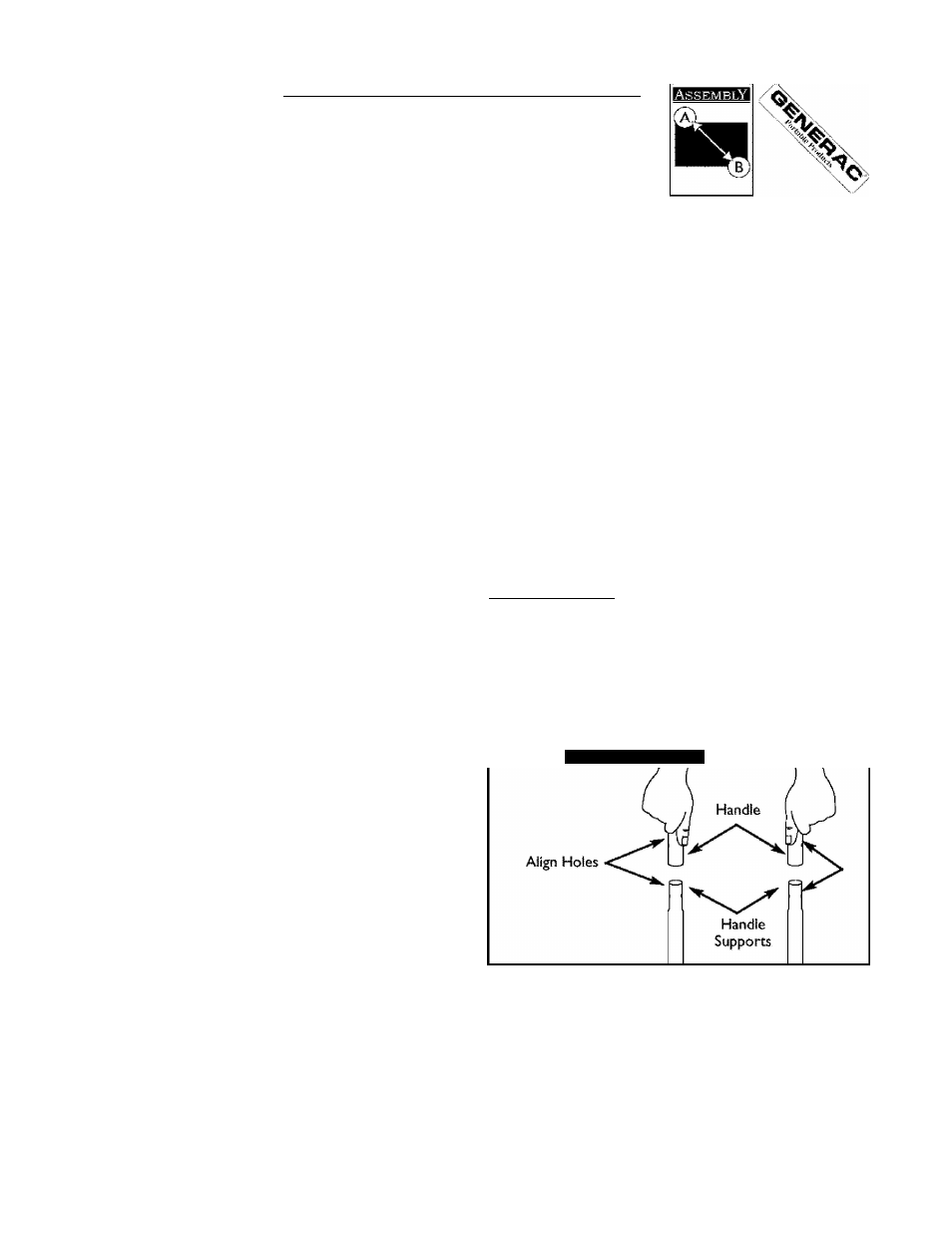

(Figure I).
Attach Handle to Base
NOTE: It may be necessary to move the handle supports
from side to side in order to align the handle so it will slide
over the handle supports.
