Assembly
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Assembly
requires the included alien wrench______ | and your own phillips screwdriver -------
wrench ~
and adjustable

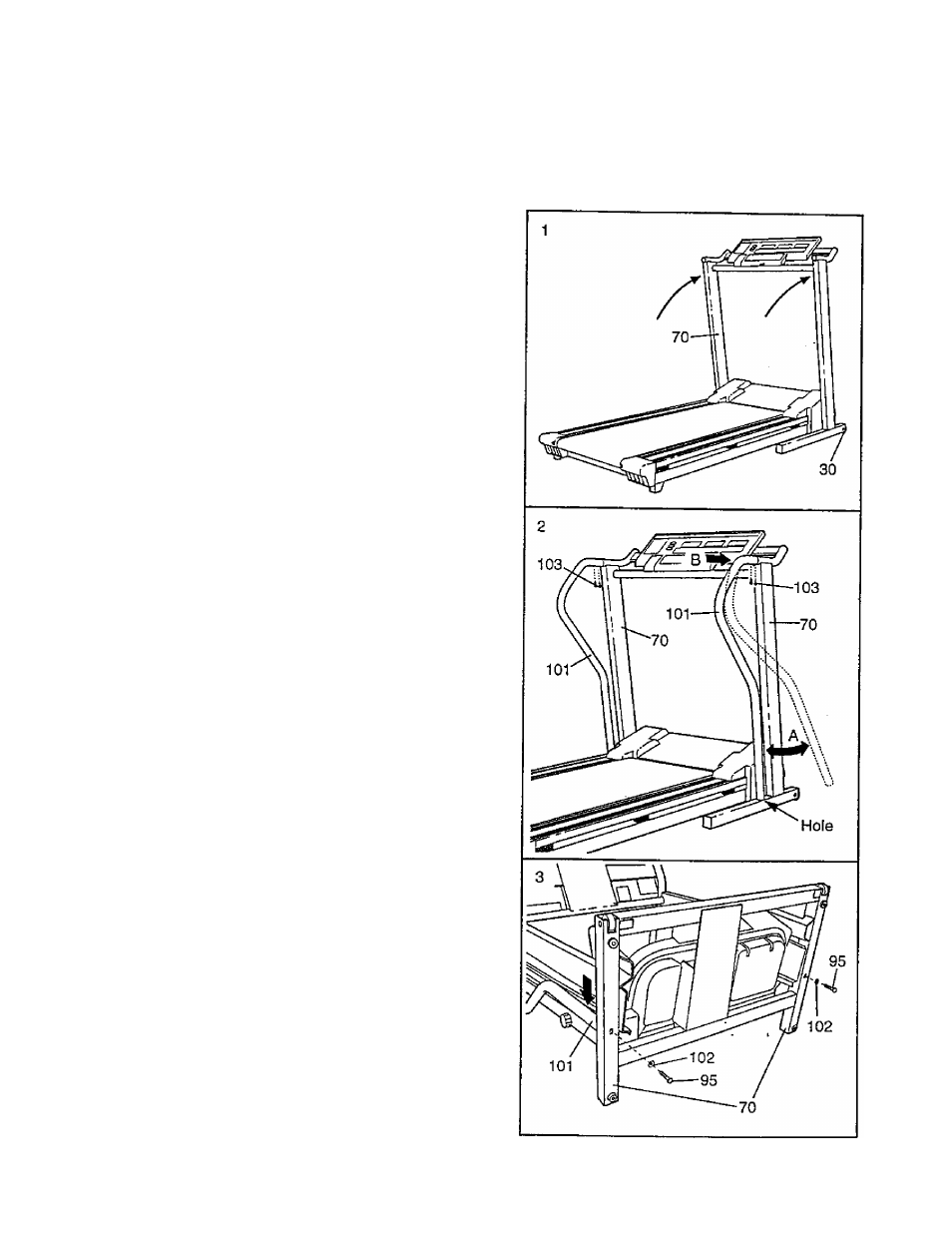

1. With the help of a second person, carefully raise the
Uprights (70) until the Wheels (30) are resting flat on the
floor.
2. Remove the four Handrail Screws (103) from the posts on
the left and right Uprights (70). Slide the upper end of a
Handrail (101) onto the right Upright (70) as shown. Note:
It will be necessary to pivot the Handrail to the side
and back repeatedly (see arrow A) while pushing on
the Handrail (see arrow B) to slide it fully onto the
Upright. Next, pivot the lower end of the Handrail down,
push it toward the right Upright, and then align it with
the indicated hole.
Tighten two Handrail Screws (103) into the upper end of
the Handrail (101) and the right Upright (70).
Attach the other Handrail (101) to the left Upright (70) as
described above.
.
3. With the help of a second person, carefully tip the Uprights
(70) down as shown.
Tighten a Handrail Bolt (95) with a Handrail Washer (102)
into the right Upright (70) and the lower end of the right
Handrail (101) as shown. Note; It may be necessary to
press down on the Handrail to align the holes in the
Upright and Handrail.
Next, tighten a Handrail Bolt (95) with a Handrail Washer
(102) into the left Upright (70) and the lower end of the left
' Handrail (101) (not shown).
With the help of a second person, carefully tip the Uprights
(70) back to the upright position.
