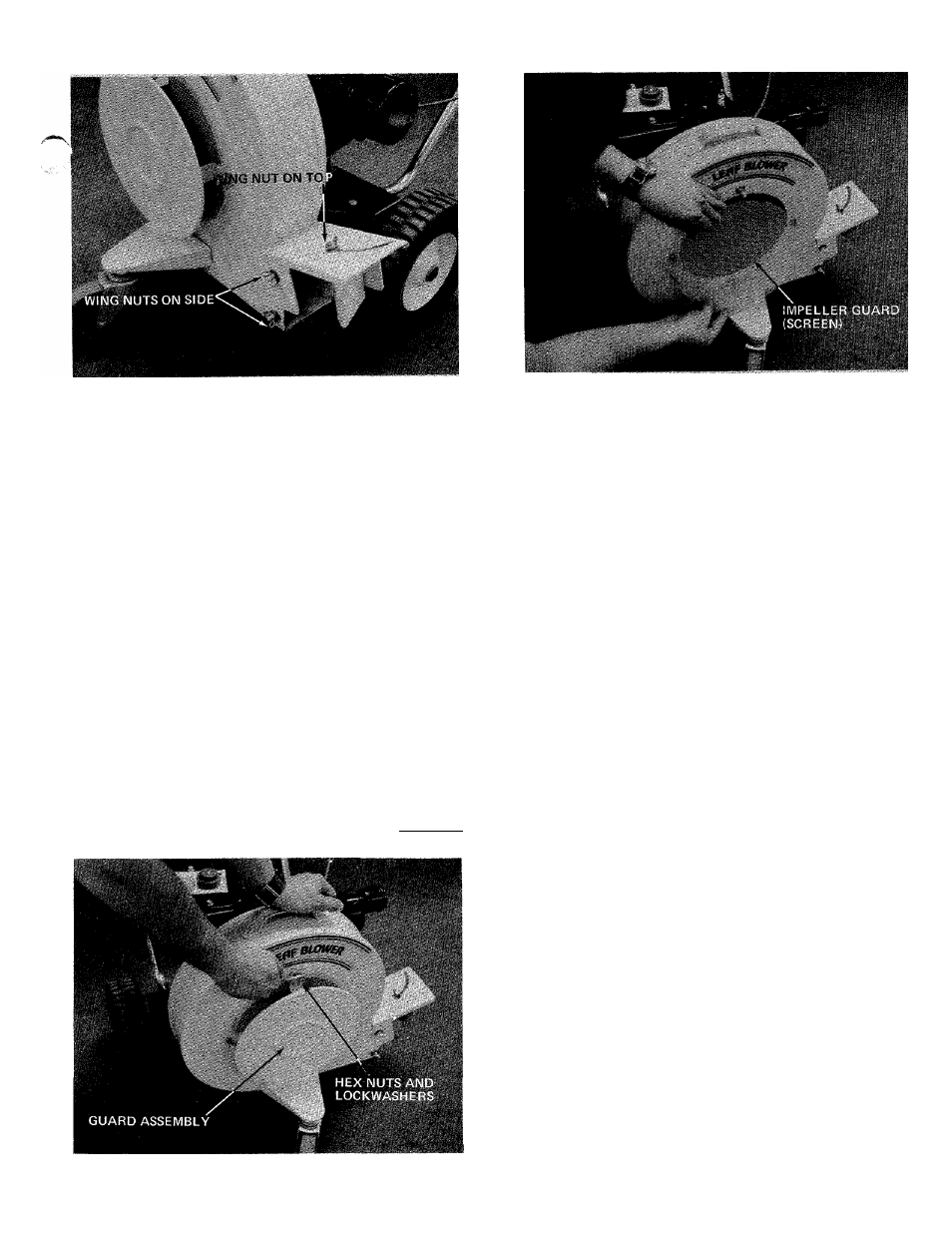

FIGURE 10
USE OF OPTIONAL EQUIPMENT
FIGURE 12
If you use optional equipment (such as inlet nozzle or
auxiliary hose) proceed as follows.
^ WARNING ^
Do Not make any adjustment with the
engine running. Stop the engine,
disconnect the spark plug wire and
ground plug wire to engine block.
1. Remove the guard assembly by removing four
hex nuts and lock washers. See figure 11.
2. Lift off impeller guard (screen). See figure 12.
3. Whenever attachments are removed, guard
assembly and impeller guard (screen) Must Be
reassembled.
FIGURE 11
MAINTENANCE AND
LUBRICATION
Your Leaf Blower, like all machines with moving
parts, must receive care and maintenance. The
following tips, if used, will contribute many trouble-
free hours to your blower.
1. Check oil level frequently. When changing oil,
make sure dirt and debris is cleaned off oil sump
before removing oil plug.
2. Keep blower clean, expecially the engine, and
engine air filter.
3. Check all nuts, bolts and screws occasionally to be
sure blower is in good operating condition.
4. The wheel bearings are pre-lubricated at the
factory and should require no further attention
until blower is serviced. However, it is advisable
to remove the wheels and apply a small amount
of light oil to each axle, at least once a season.
OFF-SEASON STORAGE
If you are going to store your blower for any length of
time (30 days or longer), it is important that the
following steps be taken:
1. Drain the gas tank. Start the engine. Allow it to
run out of gas. Gasoline left in the engine will
leave gum deposits in the carburetor and gas tank.
2. Clean engine of all foreign matter.
3. Lubricate cylinder by removing the spark plug
and pour in one ounce of clean lubricating oil
through the spark plug hole into the cylinder.
Crank engine slowly to spread oil and replace
spark plug. To start after storage, remove spark
plug and rotate engine with starter to remove
excess oil.
