2.
3.

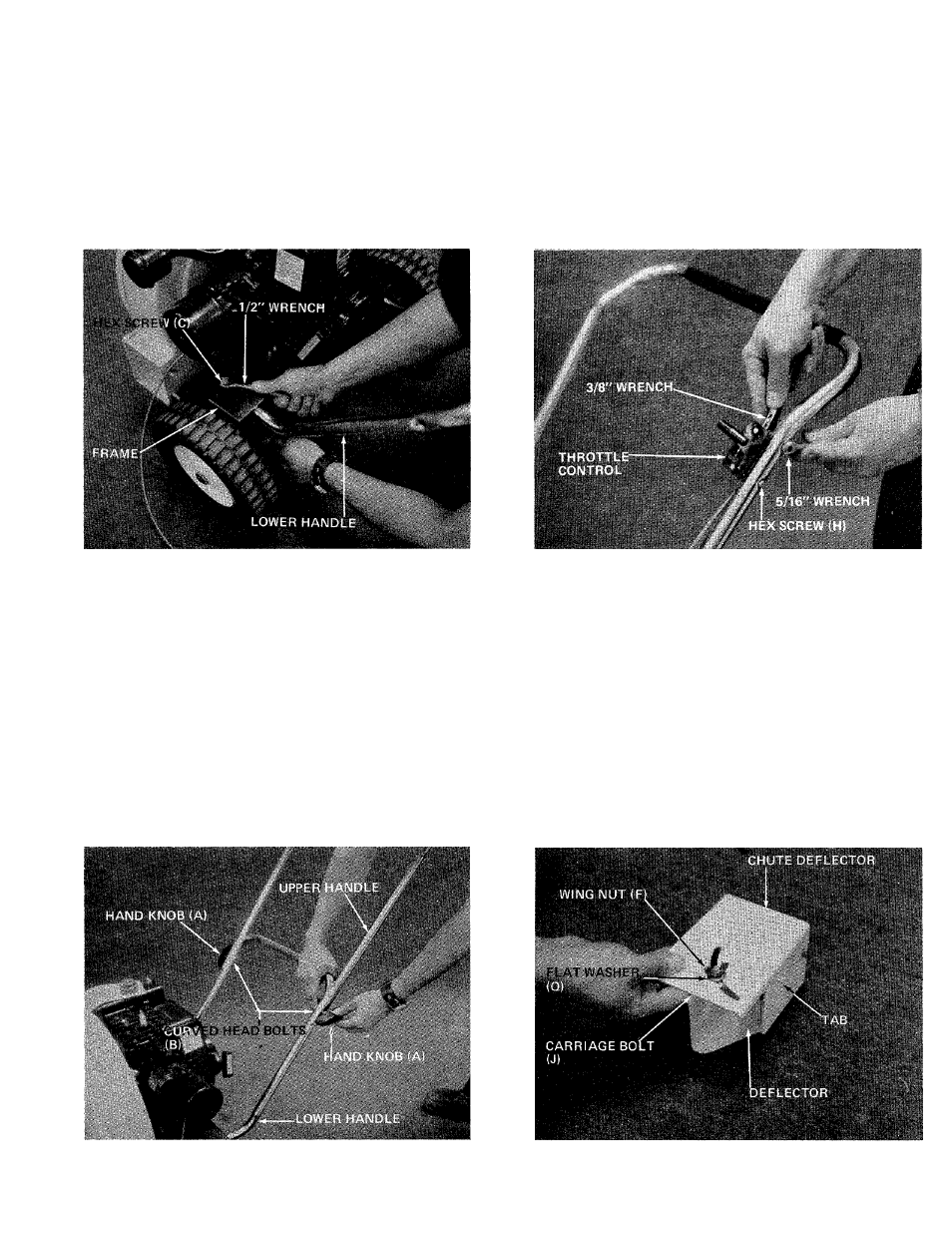

Place the lower handle into holes located in rear
of Leaf Blower Frame.
Secure lower handle to frame with two hex screws
(C), lock washers (D) and hex nuts ( E ) . See figure
3. Two 1/2" wrenches are required.
5. Place the throttle control to the inside of upper
handle as shown in figure 5. Secure with hex
screws (H) and lock nuts ( I ) . A 3/8" wrench and
a 5/16" wrench is required. Tighten securely.
F I G U R E S F I G U R E S
4. Place the upper handle over the lower handle,
lining up the holes. Secure with curved head bolts
(B) and hand knobs ( A ) . See figure 4.
Secure throttle control cable to handle with cable
tie (K) provided in hardware pack.
7. Pre-assemble the chute deflector and deflector.
Slide tab on deflector into slot on chute deflector.
Secure deflector to chute deflector with carriage
bolt (J), fiat washer (G) and wing nut (F). See
figure 6.
FIGURE 4 FIGURE 6
