ASSEMBLY

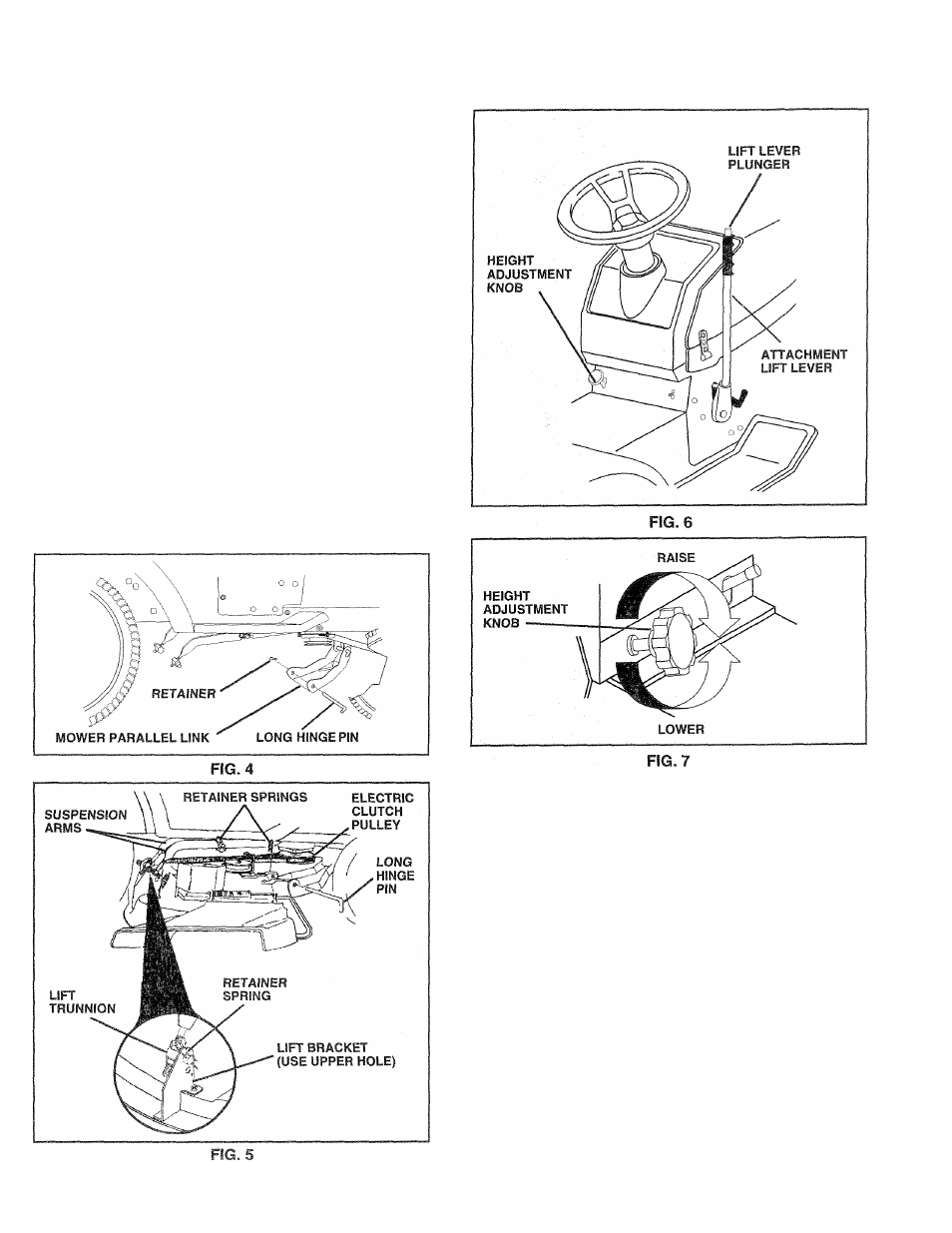

INSTALL MOWER (See Figs. 4, 5, 6 & 7)
•
Remove banding holding parallel link up against tractor.
•
Remove retainer securing long hinge pin to parallel link
and remove hinge pin.
•
Raise attachment lift lever to its highest position.
•
Remove banding from mower deck links and V-belt.
• Slide mower under tractor with discharge guard to right
side of tractor.
• Attach front of mower to parallel link with long hinge pin.
Secure hinge pin with retainer spring.
•
Turn height adjustment knob to its lowest setting.
•
Lower attachment lift lever to lower suspension arms.
Remove retainer springs from lift trunnions.
•
Slide trunnions through upper hole in lift brackets and
secure with retainer springs.
• Pull L.H. idler pulley toward the right hand side of tractor
and roll belt over mower drive pulley.
NOTE: Mower drive belt installation decal located on mower
housing.
•
Raise attachment lift lever to raise mower.
•
Turn height adjustment knob clockwise to the middle of
its travel.
CHECK DECK LEVELNESS
For best cutting results, mower housing should be properly
leveled. See “TO LEVEL MOWER HOUSING” in the
Service and Adjustments section of this manual.
CHECK FOR PROPER POSITION OF ALL
BELTS
See the figures that are shown for replacing motion, mower
drive, and mower blade drive belts in the Service and
Adjustments section of this manual. Verify that the belts are
routed correctly.
CHECK BRAKE SYSTEM
After you learn how to operate your tractor, check to see
that the brake is properly adjusted. See “TO ADJUST
BRAKE” in the Service and Adjustments section of this
manual.
