SERVICE AND ADJUSTMENTS
TO REMOVE WHEEL FOR REPAIRS

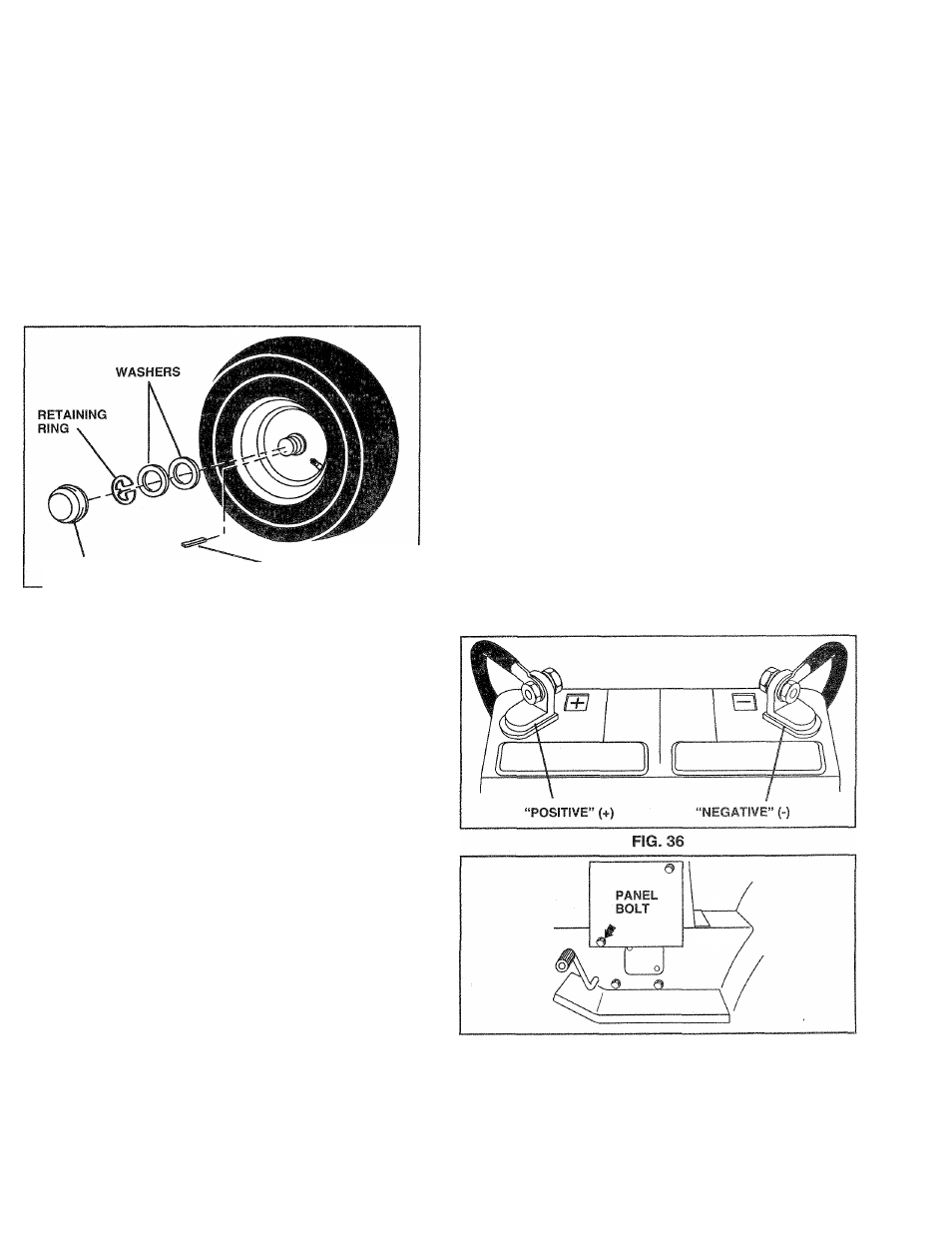

(See Fig. 35)
• Block up axle securely.
• Remove axle cover, retaining ring and washers to allow
wheel removal (rear wheel contains a square key - Do
not lose).
• Repair tire and reassemble.
• On rear wheels only: align grooves in rear wheel hub
and axle. Insert square key.
• Replace washers and snap retaining ring securely in
axle groove.
• Replace axle cover.
AXLE COVER
SQUARE KEY
(REAR WHEELS ONLY)
FIG. 35
TO REPLACE FUSE
Replace with 30 amp automotive-type plug-in fuse. The
fuse holder is located behind the dash.
TO REPLACE HEADLIGHT BULB
• Raise hood.
• Pull bulb holder out of the hole in the backside of the
grill.
• Replace bulb in holder and push bulb holder securely
back into the hole in the backside of the grill.
• Close hood.
INTERLOCKS AND RELAYS
Loose or damaged wiring may cause your tractor to run
poorly, stop running, or prevent it from starting.
• Check wiring. See the electrical wiring diagram in the
Repair Parts section of this manual.
TO START ENGINE WITH A WEAK BATTERY
(See Figs. 36 and 37)
A
CAUTION: Lead-acid batteries generate
explosive gases. Keep sparks, flame and
smoking materials away from batteries.
Always wear eye protection when around
batteries.
If your battery is too weak to start the engine, it should be
recharged. If “jumper cables” are used for emergency
starting, follow this procedure:
IMPORTANT; YOUR TRACTOR IS EQUIPPED WITH A 12
VOLT NEGATIVE GROUNDED SYSTEM. THE OTHER
VEHICLE MUST ALSO BE A 12 VOLT NEGATIVE
GROUNDED SYSTEM. DO NOT USE YOUR TRACTOR
BATTERY TO START OTHER VEHICLES.
TO ATTACH JUMPER CABLES -
•
Connect each end of the RED cable to the POSITIVE
(-
1-) terminal of each battery, taking care not to short
against chassis.
• Connect one end of the BLACK cable to the NEGA­
TIVE (-) terminal of fully charged battery.
• Connect the other end of the BLACK cable to a panel
bolt on the left side of the chasis, away from the fuel
tank and battery.
TO REMOVE CABLES, REVERSE ORDER -
• BLACK cable first from chassis and then from the fully
charged battery.
• RED cable last from both batteries.
FIG. 37
23
