Conceptronic C300BRS4A
802.11n Wireless Broadband Router
9

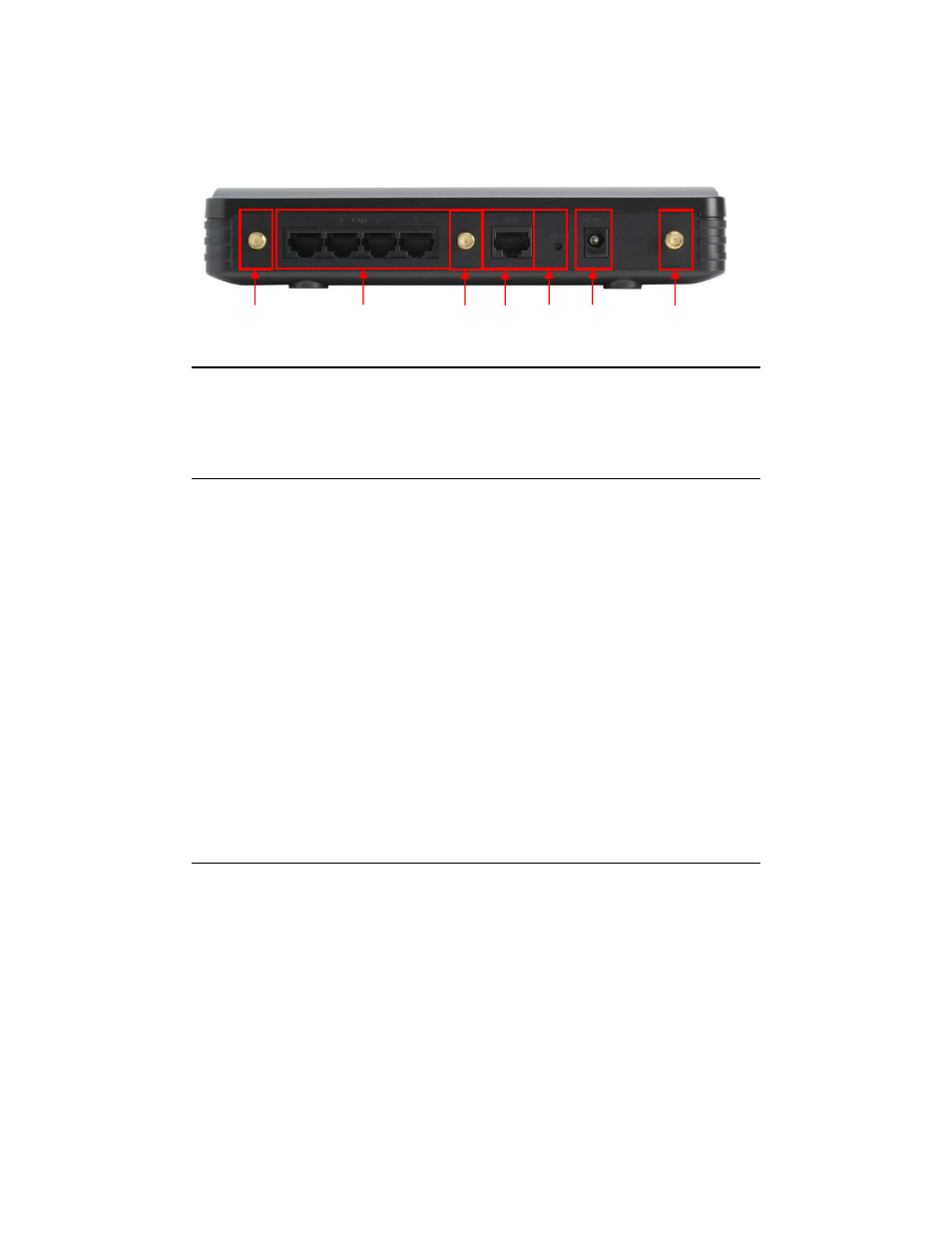

Rear Panel Cable Connections
Connect the power adapter cord and network cables on the rear panel. The power switch and reset
button are also located on the back of the device. Connect the antennas to the antenna posts.
Nr Description Explanation
1
Antenna Connection
Reverse-SMA Connector for Wireless Antenna
2 LAN
Ports
Connect
your Computer(s) to the router
3
Antenna Connection
Reverse-SMA Connector for Wireless Antenna
4
WAN Port
Connect your Broadband connection to the router
5
Reset Button
Reset the router to the Factory Default Settings
6
Power Connection
Connect the Power Supply to the router
7
Antenna Connection
Reverse-SMA Connector for Wireless Antenna
2
1
4
6
5
3
7
