MTD 110-530 User Manual
Page 7
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".
'ì

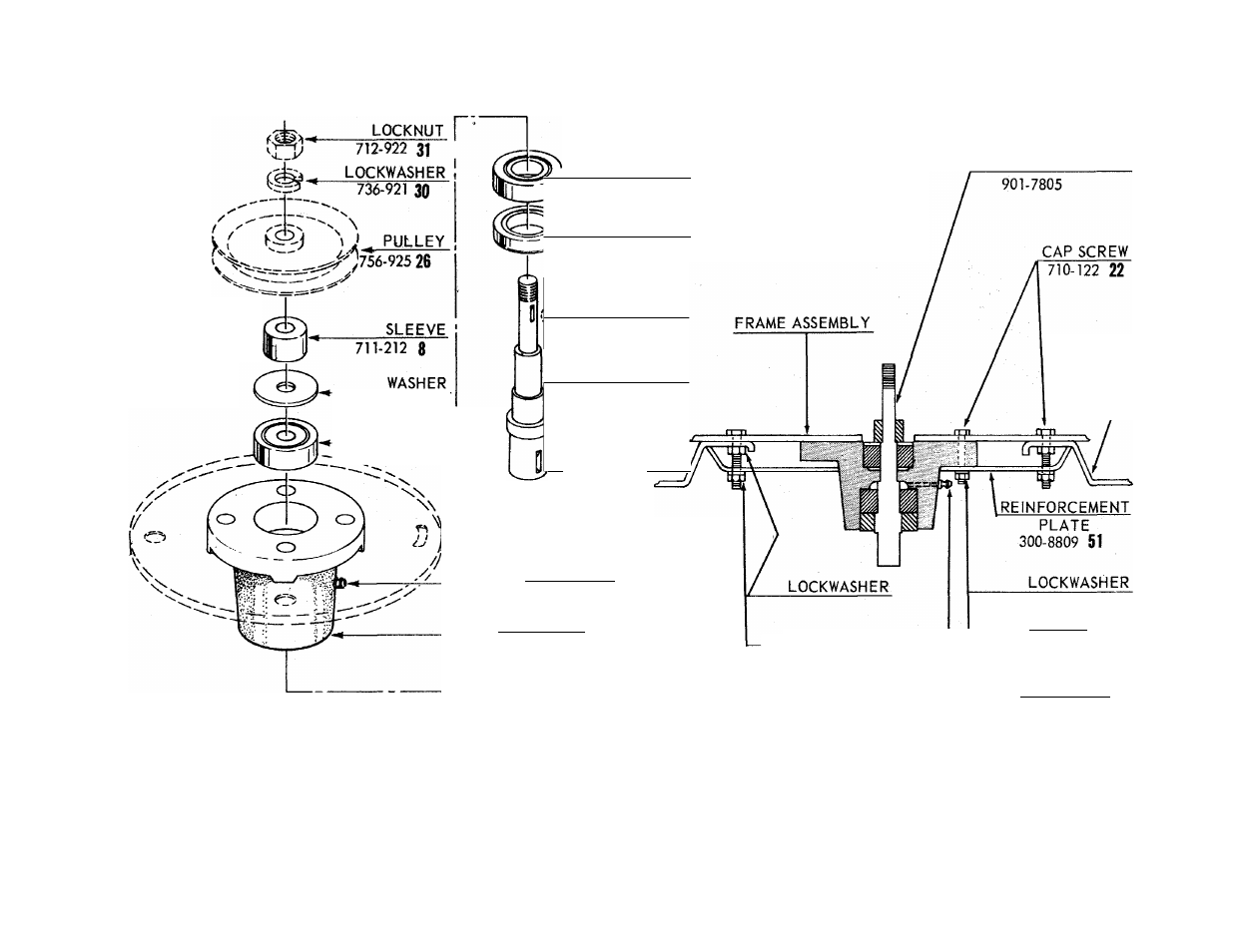

NOTE: PARTS SHOWN
IN DOTTED LINES
NOT INCLUDED
IN ASSEMBLY.
736-154 114
BEARING 11/16
741-120
BEARING 3/4
741-107 111
SEAL
721-105 115
41
KEY
^ ' 714-365 37
SPINDLE
711-240 20
KEY
'714-365 37
REINFORCEMENT PLATE
300-8809 51
ZERK FITTING
737-479 116
SPINDLE HOUSING
719-120 10
BLADE SPINDLE
ASSEMBLY
901-7805
SPINDLE ASSEMBLY
DECjK 27
736-119 19
HEX NUT
712-123 11
CAUTION:
1. Bearing races must be firmly seated in Spindle Housing.
'2. Zerk Fitting should face Discharge Chute of Deck.
3. Lubricate every 8 to 10 hours with Shell General Purpose
Grease or Equivalent.
736-119 19
HEX NUT
712-123 11
ZERK FITTING
737-479 116
Z
o
